TPR600-07 SS Rotating Nozzle | 8700 PSI Heavy Duty

TPR600-07 Stainless Steel Rotating Nozzle 8700 PSI Extreme Duty

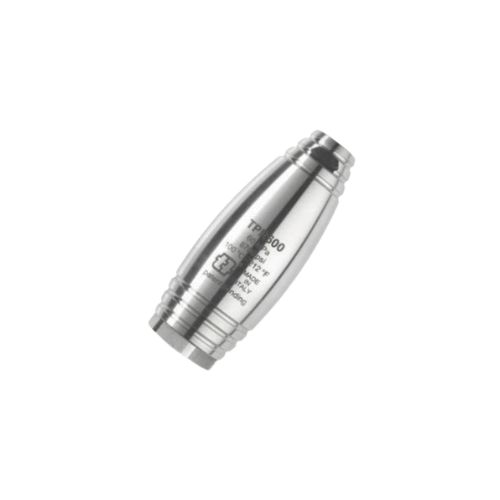

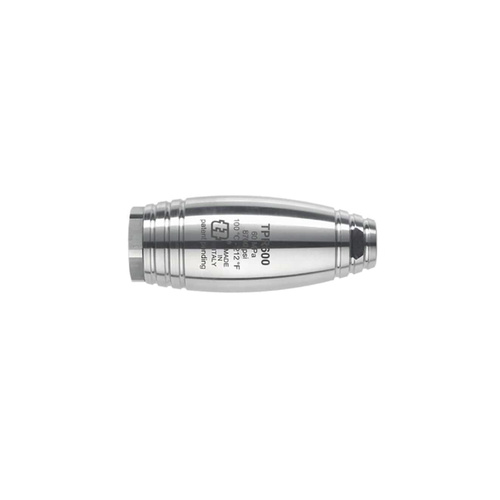

The Annovi Reverberi TPR600-07 Rotating Nozzle is a stainless-steel, ultra-high-pressure
turbo nozzle designed for extreme-duty industrial, marine, and hydro-excavation support cleaning.
Rated for a maximum working pressure of 8,700 PSI (600 bar) and a maximum water
temperature of 212°F (100°C), this 7.0 orifice model delivers
aggressive impact with efficient coverage for large steel, concrete, and equipment surfaces.

As part of the TPR600 stainless-steel series, the TPR600-07 features a vertical start
design and precision-balanced rotor assembly that reduce harsh start-up shock when the trigger is
cycled. A corrosion-resistant stainless-steel body, hardened internal components,
and a standard 1/4″ female inlet make this nozzle a durable, easy-to-integrate
solution for 600-bar pump systems used in refineries, shipyards, large wash bays, and heavy
construction fleets.

TPR600-07 Key Features

• 8,700 PSI (600 bar) rating: Engineered for extreme-duty high-pressure systems in
  industrial, marine, and infrastructure cleaning applications.
• 7.0 orifice size: Large nozzle optimized for high-flow 600-bar pumps, delivering
  strong impact with wide, productive coverage on large surfaces.
• Rotating turbo jet: Converts a straight 0° jet into a high-energy rotating cone
  (approximately 20°), multiplying effective cleaning power and reducing striping.
• Vertical start design: Helps eliminate start-up impact and protects the internal
  nozzle insert when pressure is reapplied.
• Stainless-steel body: Corrosion-resistant construction designed to withstand
  salt spray, detergents, and harsh outdoor exposure.
• Hardened nozzle and seat: Tungsten-carbide and ceramic internals resist erosion
  from high-velocity water and fine abrasives, preserving spray quality and pressure.
• Hot-water capable: Rated for water temperatures up to
  212°F (100°C) for faster removal of oils, grease, and organic buildup.
• Standard 1/4″ female inlet: Compatible with professional 600-bar guns,
  lances, and quick-coupler systems.

Construction & Design Advantages

• Heavy-duty stainless shell: Protects the rotating assembly from impact with tanks,
  hull plating, gratings, and structural members.
• High-volume performance: The 7.0 orifice supports substantial flow, expanding the
  effective cleaning path and improving productivity on large decks, pads, and tanks.
• Any-position operation: Designed for vertical, horizontal, and overhead use
  without rotor stalling.
• Consistent 20° spray cone: Focuses impact where needed while maintaining efficient
  coverage for steady travel speeds.
• TPR600 series compatibility: Shares inlet size and pressure ratings with other
  TPR600 nozzles, simplifying fleet standardization and spare management.

Typical Applications for TPR600-07

• Shipyards and marine maintenance: Removal of marine growth, rust, and coatings
  from hulls, decks, ramps, piers, and ballast tanks.
• Industrial plant cleaning: Stripping heavy coatings, scale, and baked-on process
  residues from tanks, vessels, pipe racks, and containment areas.
• Concrete and infrastructure: Deep cleaning and light profiling of slabs, bridge
  decks, parking structures, piers, and precast elements.
• Oil, gas, and heavy industry: Cleaning skids, frames, heat exchangers, structural
  steel, and equipment exposed to hydrocarbons and corrosive environments.
• Hydro-excavation and vacuum trucks: Cleaning debris bodies, tanks, booms, and hose
  reels; removing compacted soil and slurry.
• Fleet and municipal equipment: Removal of thick mud, road film, and petroleum
  residue from trucks, sweepers, and service vehicles.

Performance & Sizing Guidelines

• Flow pairing: The 7.0 orifice is intended for high-GPM 600-bar pumps; always verify
  operating PSI and GPM using pump curves and nozzle sizing charts.
• Minimum operating pressure: Requires approximately 2,175 PSI
  to maintain reliable rotation.
• Impact vs. coverage: Provides wider coverage than smaller orifice sizes while
  still delivering strong mechanical cutting action.
• System compatibility: All hoses, guns, lances, fittings, and safety devices must
  be rated for at least 8,700 PSI and 212°F.
• Operator technique: Maintain consistent stand-off distance and travel speed for
  balanced cleaning performance and operator comfort.

Best Practices for Use & Maintenance

• Flush before installation: Purge hoses and pump lines with a fan nozzle to remove
  debris before installing the rotating nozzle.
• Use filtered water when possible: Reduces abrasive wear and extends service life.
• Ramp pressure smoothly: Avoid sudden trigger cycling to reduce shock to the
  nozzle and upstream components.
• Monitor spray pattern and vibration: Changes in rotation, noise, or cone shape
  indicate wear or contamination.
• Rinse after chemical use: Flush thoroughly with clean water to protect stainless
  and internal components.
• Store protected: Cap or case the nozzle when not in use to prevent orifice damage
  and contamination.
