SXWA7G50N-SX | Left-Hand Triplex Pump, 7 GPM 5000 PSI, 1750 RPM, 24mm

SXWA7G50N-SX | Left-Hand Triplex Pump, 7 GPM 5000 PSI, 1750 RPM, 24mm

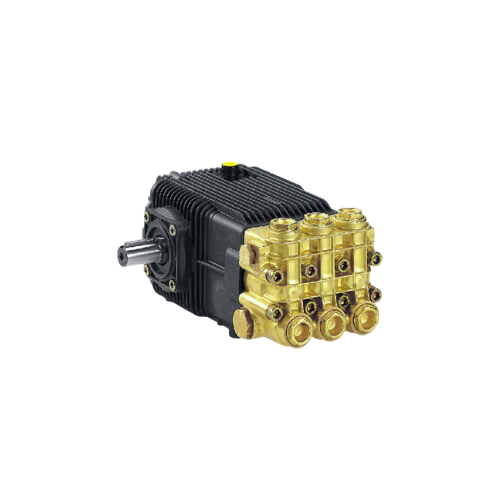

The Annovi Reverberi SXWA7G50N-SX is a specialty high-pressure triplex plunger
pump engineered for demanding commercial and industrial applications that require a
left-hand shaft configuration. Delivering an exceptional
7 GPM at 5,000 PSI while running at 1,750 RPM, this pump is
built for high-volume, high-pressure cleaning systems where mirrored drive layouts or
reverse-mount installations are needed. With a forged brass manifold, stainless steel valves, and
ceramic plungers, the SXWA7G50N-SX combines industrial durability with installation flexibility.

Key Specifications

• Model: SXWA7G50N-SX
• Flow Rate: 7.0 GPM
• Maximum Pressure: 5,000 PSI
• Operating Speed: 1,750 RPM
• Shaft Type: 24mm solid left-hand shaft for mirrored drive layouts
• Pump Head Material: Forged brass for strength and corrosion resistance
• Plungers: Ceramic, designed for high heat and abrasion resistance
• Valves: Stainless steel check valves for reliable sealing and durability
• Oil System: Integrated sight glass and vented dipstick for simplified maintenance
• Warranty: 5-year commercial warranty with U.S.-based support

What’s Included with the Pump

• Pre-filled break-in oil for immediate installation and safe startup
• Vented dipstick for balanced crankcase pressure and extended seal life
• Oil sight glass for quick fluid level monitoring
• Owner’s manual with schematic and maintenance instructions
• Verified factory performance testing results for PSI and GPM output
• Full 5-year commercial warranty supported by U.S.-based service centers

How the SXWA7G50N-SX Works

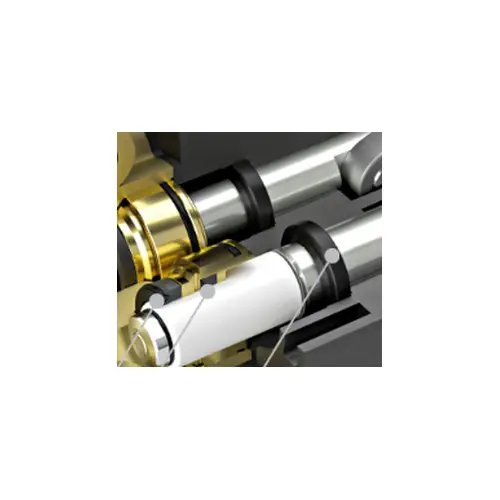

• Utilizes a triplex plunger system, where three ceramic plungers deliver smooth,
  consistent high-pressure water output with reduced pulsation.
• Ceramic plungers minimize wear from heat and friction, extending seal life
  under continuous-duty operation.
• Stainless steel valves maintain tight sealing and high efficiency, even under
  extreme pressure conditions.
• The forged brass manifold resists corrosion, scale buildup, and pressure
  fatigue for long service life.

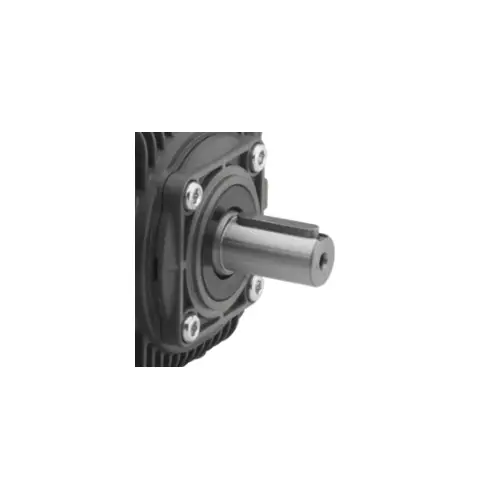

• The defining feature is the left-hand 24mm solid shaft, optimized for
  reverse-mounted or mirrored drive layouts commonly used in dual-pump and custom trailer or skid
  systems.

Benefits of the SXWA7G50N-SX

• Specialty shaft orientation: Left-hand 24mm solid shaft ensures compatibility
  with reverse-drive and mirrored engine layouts.
• High flow rate: 7 GPM capacity supports multi-gun systems and large-scale
  cleaning operations.
• Extreme pressure capability: Rated at 5,000 PSI for the toughest industrial
  and commercial wash tasks.
• Heavy-duty materials: Forged brass manifold, stainless valves, and ceramic
  plungers provide long service life under continuous use.
• Maintenance-friendly design: Integrated sight glass and vented dipstick make
  oil checks fast and simple.
• Factory-tested assurance: Each unit is pressure-tested and performance-verified
  before shipment.

Typical Use Cases

• Custom industrial trailer builds: Reverse-mounted shaft systems for heavy-duty wash trailers.
• Food processing & sanitation: Hot water or chemical washdown in USDA-compliant facilities (with appropriate system components).
• Oilfield & refinery cleaning: Degreasing equipment, piping, and process skids in harsh environments.
• Agricultural & livestock operations: Barn sanitation, feedlot washdowns, and irrigation equipment cleaning.
• Municipal & fleet services: Cleaning buses, trucks, sanitation vehicles, and heavy equipment fleets.
• Dual-pump systems: Mirrored pump configurations for high-volume or multi-gun wash systems.

Why Choose the SXWA7G50N-SX?

• Combines 7 GPM high-flow capacity with 5,000 PSI working
  pressure for serious industrial cleaning performance.
• Left-hand drive configuration makes it the go-to solution for reverse-mounted,
  mirrored, or dual-pump systems where standard right-hand pumps won’t fit.
• Robust construction with ceramic plungers, stainless steel internals, and forged brass head
  ensures long-term reliability in high-demand environments.
• Ships ready to install with factory oil prefill, integrated maintenance features, and
  comprehensive documentation.
• Backed by a 5-year commercial warranty and U.S.-based service network for
  long-term confidence and support.

SXWA7G50N-SX | Left-Hand Triplex Pump, 7 GPM 5000 PSI, 1750 RPM, 24mm

The SXWA7G50N-SX is a specialty left-hand shaft high-pressure pump
delivering 7 GPM at 5,000 PSI, purpose-built for reverse-drive and mirrored
installations in commercial and industrial cleaning systems. With a forged brass manifold,
ceramic plungers, stainless steel valves, integrated sight glass, and vented dipstick, it offers
the durability and ease of maintenance required in food processing plants, fleet wash bays,
custom trailer and skid builds, and other high-demand environments. Backed by factory testing and
a 5-year commercial warranty, the SXWA7G50N-SX is the ideal choice when you need
left-hand shaft compatibility, high flow, and extreme pressure in one
industrial-grade pump.
