NZMQC5P-040 QC Nozzle 5-Pack 040 | Pressure Washer

NZMQC5P-040 QC Nozzle 5-Pack 040 | Pressure Washer

• NZMQC5P-040 is a professional 5-pack of 1/4″ quick-connect spray nozzles built around a consistent 040 orifice for higher flow, faster rinsing, and broad surface coverage on large wash jobs.
• Designed for contractors and facility teams who need throughput—moving water volume efficiently across concrete, building exteriors, equipment, and fleet assets without wasting time on undersized tips.
• The 040 orifice format is ideal when the work is rinse-heavy, the surface area is large, and consistent spray shape matters more than maximum cutting force.

Pack Contents and Identification

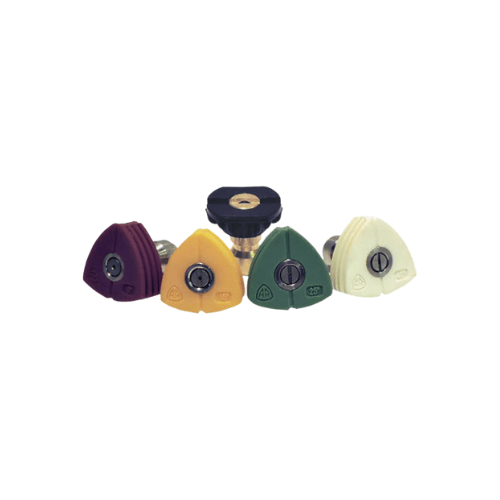

• Includes five quick-connect tips with standard spray patterns: 0°, 15°, 25°, 40°, and Soap.
• All tips share the same 040 orifice so operators can switch angles without changing the intended flow class of the machine.
• Color-coded bodies speed up selection and reduce mistakes on the wand—especially on multi-operator crews and route work.

Orifice Size and Output Intent NZMQC5P-040

• The 040 orifice supports higher water volume for faster coverage, improved flushing, and reduced time per square foot on large surfaces.
• Correct nozzle sizing protects your system: an oversized orifice can reduce working pressure, while an undersized orifice can overload the pump and create unstable unloader behavior.
• Match the 040 tip set to the washer’s rated GPM and PSI, then confirm real-world performance with your hose length, gun, and downstream accessories.
• When properly matched, the 040 size helps stabilize operating temperature, improve rinse speed, and reduce streaking by delivering more water where it counts.

NZMQC5P-040 Quick-Connect Interface and Compatibility

• Uses the industry-standard 1/4″ quick-connect plug for fast, tool-free nozzle swaps and consistent retention under vibration and frequent use.
• Fits most professional trigger guns, lances, extension wands, and accessory manifolds that accept 1/4″ QC tips.
• NZMQC5P-040 Quick-change format reduces downtime and simplifies training: crews can shift from cutting to rinsing to soap application in seconds.
• For safe operation, maintain the coupler: inspect the locking collar engagement and replace worn O-rings to prevent leaks or tip ejection.

Spray Pattern Functions

0° Focused Stream

• Concentrated jet for pinpoint work on durable substrates where maximum impact is required.
• Useful for isolated heavy deposits, tight corners, weld seams, and hardened buildup on steel and concrete.
• Requires controlled distance and disciplined technique to avoid etching, coating damage, or surface gouging.

15° Heavy Cleaning Fan

• High-energy fan pattern for aggressive cleaning when soils are thick but a zero-degree stream is too risky.
• Effective on equipment, loading areas, textured concrete, and grime-heavy exterior surfaces.
• Often used as the first pass to break material free before switching to wider patterns for flush and rinse.

25° General-Purpose Fan

• Balanced working angle for routine cleaning across mixed materials and irregular surfaces.
• Provides predictable control and coverage for facility maintenance, fleet prep, and general washdown work.
• A practical “default” angle when you need consistent results without over-concentrating force.

40° Wide Coverage Fan

• Wide fan pattern designed for fast rinsing and surface-safe coverage on large areas.
• Ideal for final rinse passes on concrete, equipment, and building exteriors where volume improves flushing.
• Helps reduce striping and improves uniformity when operators maintain consistent standoff distance.

Soap Nozzle for Downstream Chemical

• Low-pressure mode intended to activate downstream chemical injectors and apply detergents evenly.
• Supports consistent dwell time on broad surfaces and improves workflow by separating application from high-pressure rinse steps.
• Useful for fleet pre-soak, building wash programs, and equipment degreasing cycles where chemistry does the work before rinse.

NZMQC5P-040 Industrial and Commercial Applications

• Large-area concrete work including drive lanes, sidewalks, ramps, staging pads, and service areas where water volume speeds productivity.
• Parking lots and parking structures where consistent coverage and rinse throughput are critical to job completion time.
• Construction and heavy equipment washdowns for rapid flushing of clay, dust, slurry, and jobsite residue.
• Fleet vehicles and rolling stock where faster rinsing improves cycle time on repeat routes and high-volume wash programs.
• Commercial property maintenance including loading docks, dumpster pads, and exterior common areas requiring consistent, repeatable results.

Field Practices for Best Results

NZMQC5P-040 QC Nozzle 5-Pack 040 | Pressure Washer

• Start with the widest effective fan angle and step tighter only when the soil load demands more impact.
• Confirm tip condition: worn orifices reduce pressure, distort spray shape, and quietly increase job time.
• Keep quick-connect components clean and fully seated—grit in the coupler can cause leaks and poor retention.
• Store the set together so operators always have cut, wash, rinse, and soap capability on the rig without improvising.
