BIPW200A-SP Bolondi Tank Cleaning Head | Precision Spray

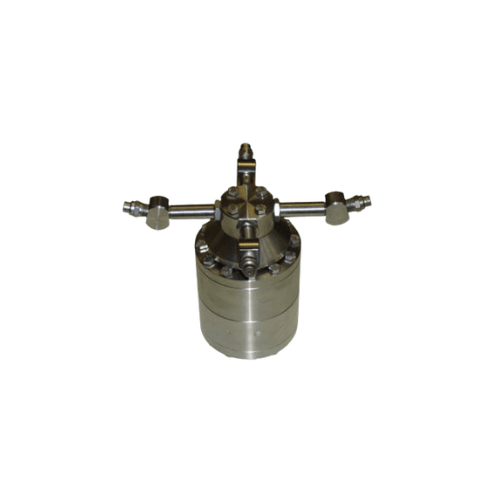

BIPW200A-SP Bolondi Tank Cleaning Head

• The Bolondi BIPW200A-SP is a precision rotary spray head for demanding
  CIP (Clean-in-Place) and industrial washdown applications where power,
  accuracy, and reliability must be balanced.
• Operates at pressures up to 2,900 PSI (200 bar), combining Bolondi’s
  proven rotary jet technology with a specialized “SP” configuration
  for customized spray performance.
• Engineered for precision coverage so sensitive tanks, mixers, and vessels are thoroughly
  cleaned without wasting water, chemicals, or time.
• Especially valuable in food, beverage, chemical, and pharmaceutical
  industries where sanitation must be repeatable, verifiable, and resource-efficient.

BIPW200A-SP How It Works

• Uses a water-powered motor drive system that converts incoming fluid
  energy into controlled turbine-driven rotation.
• Rotating nozzle arms provide 360° internal coverage, delivering
  high-impact cleaning jets throughout the vessel.
• Specialized SP configuration fine-tunes spray angles, jet velocity, and
  rotational speed for the target application.
• Provides pinpoint control for narrow or delicate areas, and optimized spray geometry
  for unusual vessel designs or restricted spaces.
• Balances cleaning impact and speed so residue is removed without damaging
  linings, coatings, or sensitive surfaces.

Materials & Construction

• 316L stainless steel wet-end: Delivers superior corrosion resistance
  against caustics, sanitizers, and aggressive cleaning chemicals.
• Aluminum alloy body: Lightweight yet strong, simplifying installation,
  repositioning, and integration into existing CIP hardware.
• Precision nozzles: Calibrated for pressure stability and uniform jet
  delivery across the full rotation pattern.
• Balanced internal turbine: Ensures smooth, vibration-free operation
  even under maximum load or extended run times.
• Built to withstand harsh, repetitive cleaning cycles in chemically aggressive and
  high-temperature environments.

BIPW200A-SP Performance Specs (Reference)

• Operating Pressure: Up to 2,900 PSI (200 bar)
• Drive System: Hydraulic water-motor (self-powered)
• Rotation: 360° full coverage with precision “SP” spray configuration
• Materials: 316L stainless steel and aluminum alloy
• Applications: Internal cleaning of tanks, drums, mixers, and vessels in
  food, beverage, chemical, and pharmaceutical plants

Benefits & Differentiators

• Precision “SP” design: Tailored spray angles and rotation speeds for
  sensitive or specialized cleaning tasks.
• Energy-efficient: Operates entirely on water flow—no external motors,
  gears, or power supply required.
• Full 360° coverage: Rotary motion eliminates blind spots and ensures
  repeatable, documented cleaning cycles.
• Durable build: Chemically and thermally resistant for frequent CIP
  and harsh washdown duty.
• Low maintenance: Simple internal mechanism reduces wear, service
  time, and unplanned downtime.
• Built to order: Engineered to customer specifications with typical lead
  times of about 8 weeks by air freight or 14 weeks by standard cargo.

Industry Applications

• Food & Beverage: Syrup tanks, brewing vessels, fermentation units,
  dairy vats, and mixing tanks.
• Pharmaceutical: Sanitizing stainless steel process containers,
  reactors, and mixing vessels to GMP standards.
• Chemical processing: Removing polymers, adhesives, coatings, and
  residual chemicals from storage tanks.
• Sanitation & hygiene: CIP systems in regulated environments that
  require verifiable, repeatable cleaning.
• General industry: Any operation needing targeted high-pressure
  internal cleaning with reduced water and chemical usage.

BIPW200A-SP Bolondi Tank Cleaning Head

Operation & Integration

• Connect to a compatible high-pressure wash or CIP system operating within the
  specified pressure and flow range.
• Adjust flow rate and nozzle configuration to match soil load, tank geometry,
  and sanitation goals.
• Allow the hydraulic turbine to rotate the arms automatically, delivering precise
  360° internal spray coverage.
• Flush the system with clean water after each chemical or detergent cycle to
  maximize service life.

Why Choose the BIPW200A-SP

• Developed specifically for users who need both high cleaning force and precise
  control in the same rotary spray head.
• Excels where standard rotary heads may under-clean critical areas or waste
  resources by oversaturating surfaces.
• Precision-engineered spray profile improves efficiency, reduces chemical and
  water consumption, and supports longer system uptime.
• An indispensable tool for modern automated cleaning processes that must meet
  strict regulatory and quality standards.
