XWT2118N | 5.55 GPM 2600 PSI Pump Oil Dipstick 5-Yr Warranty

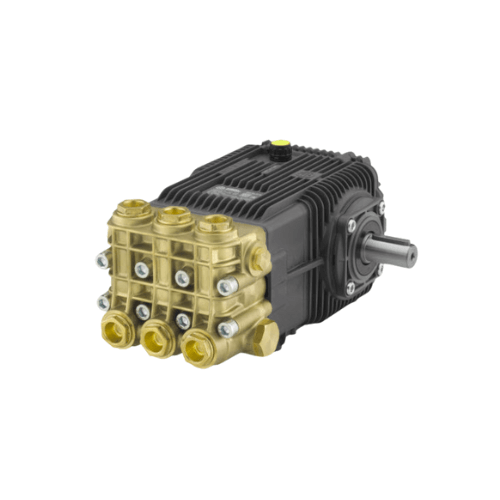

XWT2118N Industrial Pressure Washer Pump

Low 500 RPM

• Duty intent: Commercial-grade plunger pump for continuous-duty rigs, trailer systems, and high-demand wash applications
• Hydraulic output: 5.5 GPM at 2,600 PSI for professional cleaning performance with balanced flow and pressure
• Operating speed: 500 RPM for cooler operation and reduced mechanical wear in long-duty cycles
• Protection feature: Integrated thermal relief valve to limit overheating risk during extended bypass
• Drive interface: 24mm solid shaft for belt drive or coupling systems
• Core construction: Forged brass manifold, stainless steel valves, and ceramic plungers for durability and corrosion resistance
• Service readiness: Factory-tested and supported by a 5-year commercial-use warranty with U.S.-based support

Key Specifications of XWT2118N

• Flow Rate: 5.5 GPM
• Pressure Rating: 2,600 PSI
• Speed: 500RPM
• Shaft: 24mm solid shaft for belt drive or coupling systems
• Head/Manifold: Forged brass head with stainless steel valves
• Plungers: High-strength ceramic plungers for thermal stability
• Thermal Protection: Built-in thermal relief valve
• Maintenance Features: Oil sight glass and vented dipstick
• Warranty: 5-year commercial-use warranty

What’s Included with XWT2118N

• Pre-filled break-in oil
• Oil sight glass installed
• Vented dipstick
• Built-in thermal relief valve
• Owner’s manual and schematic
• Factory test documentation
• 5-year commercial-use warranty

How the Pump Works

• Triplex plunger system generates steady flow at 2,600 PSI using a three-piston pumping cycle
• Ceramic plungers reduce heat transfer and protect seals during long-duty operation
• Forged brass head and stainless steel valves support consistent sealing and corrosion resistance
• Thermal relief valve activates during extended bypass to help prevent overheating conditions

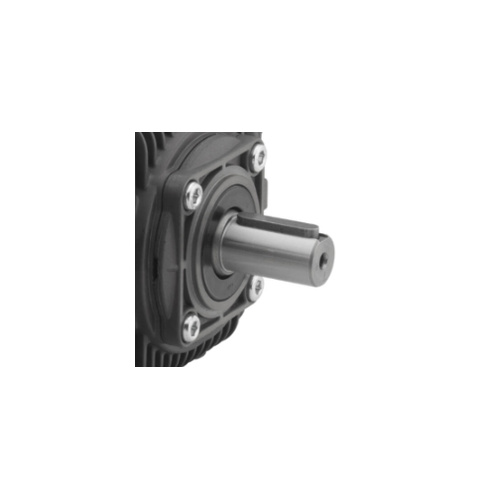

• 24mm solid shaft supports belt-drive and coupling-style power transmission layouts

Benefits of the XWT2118N

• Thermal Protection: Built-in thermal relief valve prevents overheating
• Durability: Forged brass head, stainless valves, ceramic plungers
• Continuous Duty: Designed for professional long-run operation
• Easy Maintenance: Sight glass and vented dipstick simplify service
• Performance Tested: Factory-verified flow and pressure
• Peace of Mind: 5-year commercial warranty

Typical Use Cases

• Trailer-mounted cleaning systems
• Soft wash and portable mobile rigs
• HVAC coil cleaning
• Fleet and equipment yard maintenance
• Industrial wash bays and facilities
• Agricultural sanitation systems

Why Choose the XWT2118N

• Balanced output: 5.5 GPM / 2,600 PSI supports most commercial cleaning tasks without unnecessary oversizing
• Bypass safety: Integrated thermal relief valve protects the pump during bypass-heavy workflows
• Build quality: Forged brass, stainless valves, and ceramic plungers for continuous-duty durability
• System fit: 24mm solid shaft matches common belt-drive and coupling configurations
• Support: Factory-tested unit with 5-year commercial-use warranty

Conclusion

• Performance package: 5.5 GPM at 2,600 PSI at 500 RPM for steady, continuous-duty cleaning output
• Industrial internals: Forged brass head, stainless valves, ceramic plungers, oversized bearings
• Protection: Integrated thermal relief valve for extended bypass operation
• Service features: Pre-filled oil, sight glass, vented dipstick, documentation included
• Warranty: 5-year commercial-use coverage with U.S.-based support
