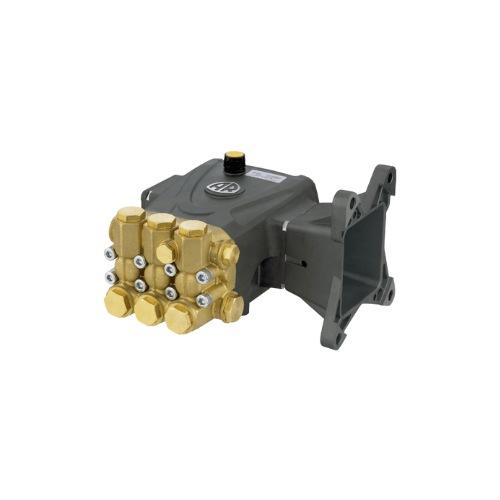

RRV5G30D-F24 Pressure Washer Pump | 5.0 GPM 3200 PSI

Overview

The RRV5G30D-F24 Annovi Reverberi Commercial Pressure Washer Pump is a high-flow,
heavy-duty triplex plunger pump designed for demanding commercial applications.
Delivering 5.0 GPM at 3,200 PSI, it mounts directly to 1-inch key shaft engines and
integrates seamlessly with popular engine brands—ideal for contractors, facilities,
and OEM installations.

Key Specifications

• Model: RRV5G30D-F24
• Flow Rate: 5.0 GPM
• Pressure Rating: 3,200 PSI
• Drive Type: Direct-coupled to 1-inch key shaft engines
• Pump Design: Triplex plunger for smooth, consistent output
• Manifold: Forged brass for strength and corrosion resistance
• Plungers: Solid ceramic for long life and thermal stability
• Valves & Seals: Premium high-pressure seals with stainless-steel valves
• Crankcase: Die-cast aluminum with oil sight glass and vented dipstick

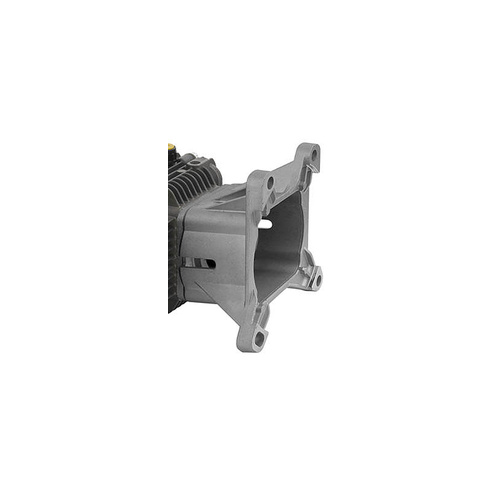

• Mounting: Standard bolt pattern for fast alignment

What’s Included

• Pre-filled break-in oil
• Vented dipstick
• Oil sight glass
• Mounting hardware
• Owner’s manual & exploded parts schematic
• Manufacturer warranty & technical support

How the RRV5G30D-F24 Works

This pump uses a triplex plunger system powered by a crankshaft to create a strong,
steady water flow. During operation, inlet valves open on the suction stroke and
outlet valves open on the pressure stroke. This positive-displacement mechanism
minimizes pulsation and ensures consistent PSI for efficient cleaning.

The forged brass head resists corrosion and pressure fatigue, while ceramic plungers
reduce heat and abrasion. The oversized crankcase—with sight glass and vented
dipstick—simplifies maintenance and ensures reliable lubrication. Together, these
features deliver exceptional longevity in high-demand environments.

Benefits of the RRV5G30D-F24

• High-flow power: 5.0 GPM & 3,200 PSI for heavy commercial cleaning
• Easy integration: Direct 1-inch key shaft engine coupling
• Commercial durability: Ceramic plungers, forged brass head, stainless valves
• Lower downtime: Fast installation and simple service points
• Versatile use: Contractors, fleets, agriculture, industrial facilities
• Cost-effective reliability: OEM-grade performance at a competitive cost

Typical Applications

• Fleet & mobile washing: Semi-trucks, buses, equipment
• Commercial & industrial locations: Warehouses, stadiums, campuses
• Agriculture: Tractors, implements, barns, washdown areas
• Contractors: Building washing, concrete cleaning, restoration
• OEM skids & trailers: High-flow, high-reliability pump systems

Installation & Maintenance Tips

• Verify engine compatibility (shaft size, keyway, RPM)
• Use a clean water supply with proper inlet filtration
• Pair with a matching unloader valve for pressure regulation
• Perform scheduled oil changes after break-in period
• Inspect seals, valves, and plungers seasonally for wear

Summary

The RRV5G30D-F24 Annovi Reverberi Commercial Pressure Washer Pump delivers powerful
5.0 GPM, 3,200 PSI performance with a rugged triplex design, ceramic plungers, and
forged brass manifold. Engineered for commercial duty and built for reliability, it
mounts directly to 1-inch key shaft engines—ideal for contractor rigs, fleet washing,
agricultural cleaning, and industrial systems requiring long-lasting power.
