XWM2623N | 6.87 GPM 3600 PSI Pump 1450 RPM 24mm Shaft Drive

XWM2623N Industrial Triplex Plunger Pump

The Annovi Reverberi XWM2623N is a commercial-duty triplex plunger pump designed
for wash systems that run hard, run often, and cannot tolerate inconsistent
pressure. Rated for 6.87 GPM at 3,600 PSI at a controlled
1,450 RPM, it provides stable output for industrial cleaning,
sanitation, and equipment washdown where flow, pressure, and uptime all matter.
A 24mm solid keyed shaft allows straightforward integration with
belt-drive or direct-drive assemblies in professional pressure washer builds.

• Commercial-duty triplex plunger pump for continuous-use environments.
• 6.87 GPM at 3,600 PSI for demanding wash, rinse, and degreasing work.
• 1,450 RPM slow-speed operation to reduce wear and thermal stress.
• 24mm solid keyed shaft for standard industrial coupling methods.
• Engineered for contractors, OEMs, and facilities that run daily cleaning programs.

Performance & Duty Point

The XWM2623N duty point is sized for systems that require strong pressure with
efficient water use. At 6.87 GPM, it provides enough volume to feed long hose
runs, multiple accessories, or single-gun circuits with minimal drop-off, while
3,600 PSI delivers concentrated jet energy for heavy soil, traffic film, and
production residue. Operating at 1,450 RPM keeps the pump in a slow-running,
industrial range that favors longevity over peak speed.

• Flow: 6.87 GPM for high-production washing and rinsing.
• Pressure: 3,600 PSI for cutting through grease, scale, and grime.
• Speed: 1,450 RPM for cooler operation and extended component life.
• Duty profile suited to daily fleet washing, tank cleaning, and plant sanitation.
• Compatible with single- and multi-gun systems when configured appropriately.

Pump Construction & Internal Components

The XWM2623N is built around a heavy-duty triplex plunger design using

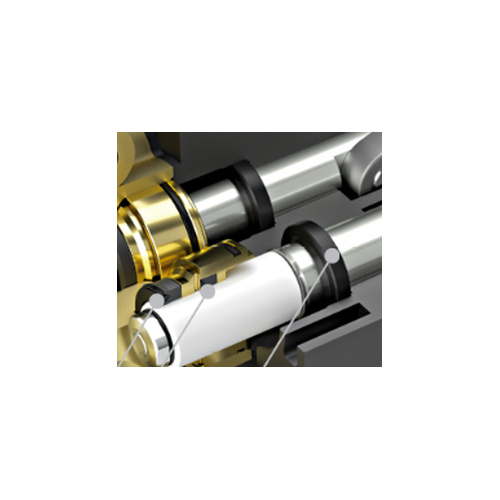

precision ceramic plungers and stainless steel valves.
Ceramic plungers resist abrasion and thermal shock, providing a stable sealing
surface over thousands of hours. Stainless check valves maintain accurate suction
and discharge timing, supporting consistent pressure even in demanding duty cycles.
A forged brass manifold adds corrosion resistance and structural strength under
continuous high-pressure loading.

• Ceramic plungers for wear resistance and thermal stability.
• Stainless steel valves for reliable seating and long service life.
• Forged brass manifold for strength and corrosion protection.

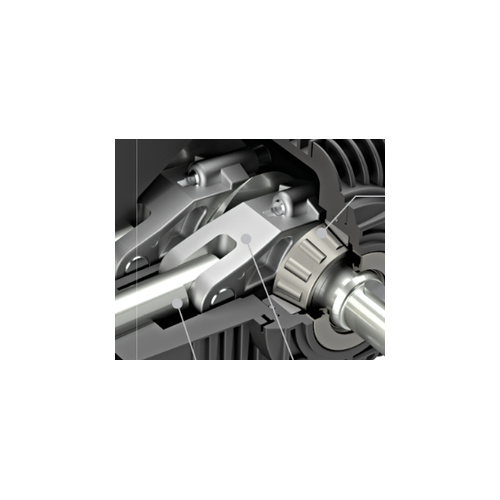

• Oversized connecting rods and crankpins for continuous-duty operation.
• Industrial-grade fasteners and seals suited to harsh wash environments.

Crankcase & Lubrication System

The crankcase is oil-filled and equipped with both a sight glass and vented
dipstick for controlled lubrication management. Continuous oil bath coverage
reduces friction, carries away heat, and protects bearings and crank surfaces
during long runs. The vented dipstick stabilizes internal pressure, preventing
seal stress when temperatures rise.

• Oil bath lubrication for all rotating components.
• Sight glass for quick visual oil-level and condition checks.
• Vented dipstick to manage crankcase pressure over long duty cycles.
• Pre-filled with factory break-in oil for safe commissioning.
• Crankcase engineered for long intervals between major service events.

Installation & Integration

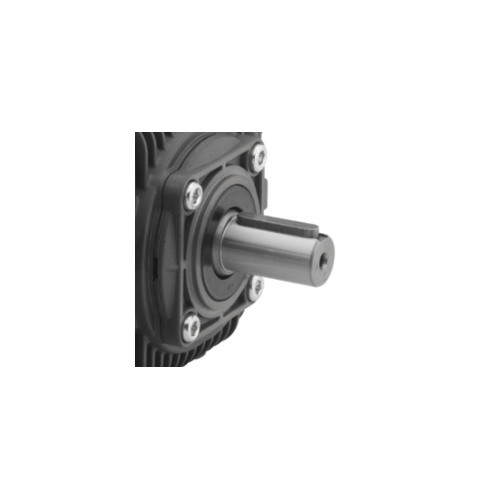

With its 24mm solid keyed shaft, the XWM2623N interfaces cleanly
with standard industrial couplings, gearboxes, and pulley sets. The slow-speed
1,450 RPM rating is well suited to electric motor-driven belt systems or engine
packages designed for continuous wash duty. Mounting geometry and port layout
support compact skid builds and retrofits where space and service access both
matter.

• 24mm keyed shaft for belt-drive or direct-drive configurations.
• Suitable for electric motor or engine-driven pump packages.
• Port orientation designed for clean suction and discharge routing.
• Compatible with unloader valves, regulators, and system accessories commonly used in industrial builds.
• Well suited to skid units, stationary frames, and centralized wash racks.

Maintenance-Friendly Features of XWM2623N

The pump is configured to keep routine service straightforward. Oil checks can be
performed at a glance, and the vented dipstick simplifies oil changes when
service intervals are reached. Valve caps and head fasteners are accessible for
seal and valve replacement using standard tools, allowing maintenance teams to
keep the pump in service with minimal downtime.

• Oil sight glass for fast, no-dismantle condition assessment.
• Vented dipstick for controlled oil changes and fill operations.
• Accessible valve caps for in-place seal and valve service.
• Documentation supplied for exploded views and service procedures.
• Supported by AR service parts and kits for predictable lifecycle management.

Operational Advantages

In daily use, the XWM2623N offers a blend of high-pressure performance and
mechanical stability that fits industrial expectations. The slow-speed operation
reduces noise and vibration, while the ceramic and stainless wet-end components
help maintain output over long duty cycles. This reduces unplanned stoppages and
supports consistent cleaning results shift after shift.

• Steady 3,600 PSI output for uniform cleaning performance.
• Low vibration and reduced mechanical shock at 1,450 RPM.
• Materials chosen to handle detergent, washdown, and variable inlet conditions.
• Designed for repeatable performance across extended operating hours.
• Backed by a 5-year commercial warranty and U.S.-based support channels.

Applications & Use Cases

The XWM2623N is aimed at professional environments where wash equipment is a core
part of daily operations. Its flow and pressure ratings align with multi-purpose
industrial cleaning tasks and centralized wash systems used across transportation,
agriculture, construction, and plant maintenance.

• Fleet and trucking depots with high vehicle throughput.
• Trailer-mounted mobile wash systems for on-site service work.
• Agricultural and livestock equipment cleaning and barn washdown.
• Municipal and public service vehicle wash bays.
• Industrial tank, tote, and machinery sanitation lines.
• Construction and mining equipment wash pads and staging areas.

Why Specify the XWM2623N

For system builders and facility managers who need a pump that can run at 6.87 GPM
and 3,600 PSI day after day, the Annovi Reverberi XWM2623N offers a proven
combination of slow-speed operation, industrial materials, and straightforward
service practices. The triplex plunger design, ceramic plungers, stainless valves,
forged brass manifold, and monitored oil bath crankcase work together to deliver
long service life in demanding conditions, supported by AR’s 5-year commercial
warranty and established parts network.

• Industrial-grade construction aligned with continuous-duty expectations.
• Balanced duty point for strong cleaning power and efficient water use.
• Service-friendly details that reduce downtime and maintenance labor.
• Proven Annovi Reverberi design backed by commercial warranty coverage.
• Reliable core component for WSHPWR.com customers building or upgrading professional wash systems.
