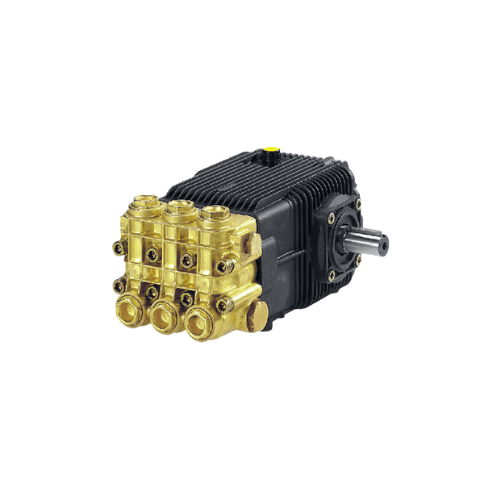

XWF3018-SA 8 GPM 2900 PSI Pump Sub-Assembly | 1000 RPM XWF3018

AR North America XWF3018-SA Industrial Pump Sub-Assembly

Overview

• The XWF3018-SA is an industrial-grade triplex plunger pump sub-assembly engineered as a core hydraulic component for OEM systems, custom skids, and continuous-duty wash or process equipment.
• Delivering 7.92 GPM at 2,900 PSI while operating at a slow, controlled 1,000 RPM, this unit is optimized for stability, longevity, and predictable performance under sustained workloads.
• Its sub-assembly configuration allows system integrators to pair the pump with application-specific drives, frames, motors, and controls without redundant components.
• The XWF3018-SA is well suited for facilities that value uptime, controlled pressure delivery, and reduced mechanical stress over extended operating cycles.

Key Specifications

• Model: XWF3018-SA
• Flow Rate: 7.92 GPM
• Pressure Rating: 2,900 PSI
• Operating Speed: 1,000 RPM
• Pump Type: Triplex plunger sub-assembly
• Manifold: Forged brass
• Plungers: Solid ceramic
• Valves: Stainless steel
• Crankcase: Die-cast aluminum
• Bearings: Oversized industrial bearings
• Lubrication: Oil bath system
• Service Access: Sight glass, drain port, fill port

Key Features

• High Output Core: Produces nearly 8 GPM at 2,900 PSI, supporting demanding washdown, sanitation, and process cleaning tasks.
• Low-Speed Operation: Designed around 1,000 RPM to reduce heat generation, friction, and internal wear.
• Triplex Stability: Three-plunger architecture delivers balanced hydraulic output with reduced pulsation.
• Durable Wet-End: Forged brass manifold provides corrosion resistance, dimensional stability, and long-term sealing reliability.
• Valve Reliability: Stainless steel valve assemblies ensure consistent seating, flow control, and resistance to wear.
• Industrial Support Structure: Die-cast aluminum crankcase combined with oversized bearings supports continuous-duty service.
• Service-Friendly Design: Integrated sight glass and accessible drain/fill ports simplify routine maintenance.
• System Integration: Sub-assembly format enables OEM flexibility for custom frames, drives, and enclosures.

Engineering & Performance

• Pressure Stability: Engineered to maintain consistent operating pressure even under variable demand and cycling conditions.
• Flow Consistency: Triplex plunger motion minimizes pressure ripple, improving downstream spray quality and system control.
• Reduced System Stress: Slow-speed operation protects hoses, fittings, regulators, and accessories from shock loading.
• Thermal Management: Lower RPM helps limit oil temperature rise during long runtimes, preserving lubricant integrity.
• Seal Longevity: Ceramic plungers and controlled operating speed promote stable sealing and reduced packing wear.
• Factory Verification: Each sub-assembly is tested for flow accuracy, sealing performance, and mechanical integrity before shipment.

Maintenance & Serviceability

• Oil Monitoring: Built-in sight glass allows quick visual inspection of oil level and condition.
• Routine Service: Dedicated drain and fill ports simplify oil changes without full disassembly.
• Modular Access: Sub-assembly layout supports efficient component servicing or replacement in OEM systems.
• Downtime Reduction: Maintenance-friendly design minimizes service time in production environments.
• Long-Life Focus: Oil bath lubrication and oversized bearings reduce friction and extend internal component life.

Ideal Applications

• Manufacturing plant wash and rinse systems
• Municipal and centralized wash stations
• Food processing and sanitation lines
• Automated conveyor and tunnel cleaning systems
• Industrial equipment maintenance operations
• High-pressure cleaning and controlled fluid transfer applications

Why Choose the XWF3018-SA

• Continuous-Duty Foundation: Designed as a reliable hydraulic core for professional-grade systems.
• Efficient Operating Profile: 1,000 RPM architecture supports cooler, lower-stress operation.
• Industrial Materials Package: Ceramic plungers, forged brass manifold, and stainless steel valves.
• Service Visibility: Sight glass and accessible ports support preventative maintenance programs.
• OEM-Ready Integration: Sub-assembly format allows standardized builds or highly customized skid designs.

Conclusion

• The XWF3018-SA is a purpose-built industrial pump sub-assembly delivering 7.92 GPM at 2,900 PSI with slow-speed reliability.
• Its triplex architecture, durable materials, and service-friendly design make it a dependable core for continuous-duty systems.
• Ideal for OEMs and facilities that require predictable performance, long service life, and efficient maintenance.
