BIXC060ATK Bolondi Aquamotor Tank Head | TK Mount

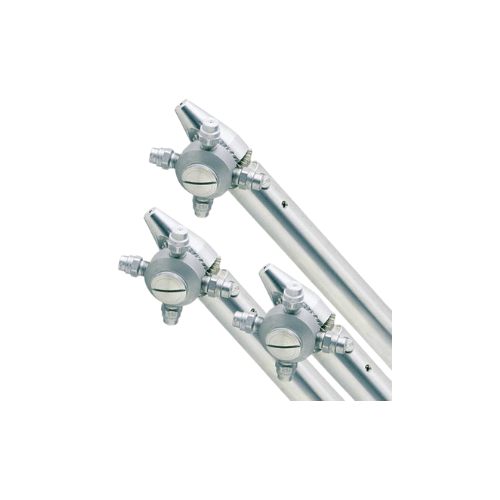

BIXC060ATK – Bolondi Aquamotor-Driven Jet Head – Stainless Steel Compact Rotary Cleaner

The Bolondi BIXC060ATK is a compact, high-performance Aquamotor-powered rotary cleaning head designed for flange-mounted Clean-in-Place (CIP) systems. Built entirely from 316L stainless steel, this model excels in environments requiring sanitary compliance, long-term durability, and fully automated tank cleaning. Its powerful internal spray action, combined with secure flange integration, makes it a trusted solution for food processing, pharmaceuticals, chemicals, and industrial batch production.

Aquamotor-Driven Cleaning Technology

Hydraulic Turbine Drive

• Self-contained Aquamotor turbine uses water pressure to generate rotation.
• Slow-speed, high-torque motion maximizes cleaning impact.
• No external motors, gearboxes, wiring, or air supply needed.

High-Impact 360° Spray Coverage

• Precision jets deliver concentrated, penetrating spray streams.
• Full 360° rotational pattern ensures complete interior coverage.
• Removes food residues, chemical buildup, and stubborn process deposits.

Performance Specifications

• Operating Pressure: Up to 2,900 PSI (200 bar)
• Flow Capacity: Up to 16 GPM (≈60 L/min)
• Coverage: Complete 360° internal spray pattern
• Drive System: Water-powered Aquamotor (no external drive)

Tank-Kit (TK) Flange Integration

Flush-Mount Sanitary Installation

• Permanent flange mounting eliminates temporary fittings and hoses.
• Hygienic sealing prevents contamination points.
• Automation-ready design allows repeatable, CIP-controlled cleaning cycles.
• Ensures vibration-free, stable operation even at maximum pressure.

The TK flange design is ideal for closed or pressurized vessels, vertical tanks, and installations with limited manual access.

Hygienic & Industrial Stainless Steel Build

316L Stainless Steel Construction

• Superior corrosion resistance for sanitary and chemical environments.
• Compatible with detergents, caustics, sanitizers, and hot-water cleaning.
• Withstands washdown temperatures exceeding 90°C (194°F).
• Durable surface finish prevents microbial harborage.

Compact, Space-Efficient Design

• Optimized for tight installations and confined tank openings.
• Small footprint without compromising cleaning output.
• Suitable for retrofits and tank designs with limited clearance.

Benefits of the BIXC060ATK

Operational Advantages

• Compact & Powerful – Ideal for small-to-medium tanks.
• Automated Cleaning – Built-in flange mount supports fully automated CIP cycles.
• Full 360° Coverage – No blind spots; complete internal cleaning.
• Efficient Resource Use – Optimized jet geometry reduces water and chemical consumption.
• Low Maintenance – Very few moving parts; no external drives to service.
• Long Service Life – Resistant to corrosion, scaling, and mechanical wear.

BIXC060ATK – Bolondi Aquamotor-Driven Jet Head – Stainless Steel Compact Rotary Cleaner

Applications

Food & Beverage

• Dairy silos, fermenters, syrup tanks, and process kettles.
• Removes sugars, proteins, oils, and viscous residues.

Pharmaceutical & Biotech

• Batch reactors, stainless IBCs, and vessels requiring validated CIP cycles.
• Ensures repeatable, compliant cleaning for regulated processes.

Chemical & Cosmetics

• Reactors for resins, creams, solvents, adhesives, and high-viscosity materials.
• Ideal for tanks requiring safe, automated residue removal.

Industrial & Sanitation

• Neutralization tanks, CIP reservoirs, and wastewater processing vessels.
• Performs reliably in corrosive and high-throughput environments.

Built-to-Order Lead Times

Standard Manufacturing & Delivery

• Air Freight: Approximately 8 weeks
• Sea Freight: Approximately 14 weeks

Every BIXC060ATK is built to order in Bolondi’s Reggio Emilia, Italy facility, ensuring precise configuration for each installation.

Why Choose the BIXC060ATK?

The Bolondi BIXC060ATK is the ideal solution for operators seeking a compact, flange-mounted, Aquamotor-driven rotary cleaning head that eliminates manual cleaning while ensuring hygienic, repeatable CIP cycles. Its stainless steel construction, automated capability, and reliable hydraulic performance make it a long-lasting investment for any facility requiring clean, efficient, and uninterrupted tank sanitation.
