XWAM85G35N | 8.5 GPM 3500 PSI Pump 1750 RPM Commercial Series

XWAM85G35N — High-Volume Industrial Triplex Pump, 8.5 GPM, 3,500 PSI, 1,750 RPM

The Annovi Reverberi XWAM85G35N is a heavy-duty triplex plunger pump built for high-volume
industrial and commercial cleaning systems. Delivering an impressive 8.5 GPM at 3,500 PSI, it is
engineered for large-scale wash operations where maximum flow and reliable pressure are essential. With a
24 mm solid keyed shaft, this pump integrates seamlessly into belt-drive and pulley-driven
configurations, making it a versatile choice for stationary wash bays, mobile rigs, and centralized cleaning
systems.

Equipped with ceramic plungers, premium seals, and a
forged brass manifold, the XWAM85G35N is designed for longevity under continuous-duty cycles.
Every unit is factory-tested and ships pre-filled with break-in oil, reducing
setup time and simplifying commissioning in the field. Backed by a 5-year commercial warranty and
U.S.-based service support, it offers the durability and peace of mind demanded by professional operators.

Key Specifications of XWAM85G35N

• Flow Rate: 8.5 GPM (high-volume output)
• Maximum Pressure: 3,500 PSI
• Operating Speed: 1,750 RPM (low-stress, long-life operation)
• Pump Type: Industrial triplex plunger pump

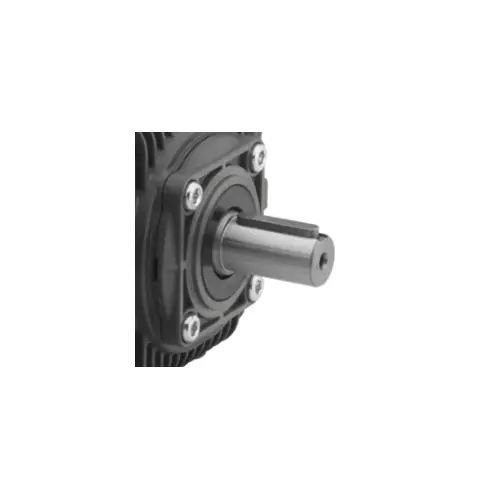

• Shaft: 24 mm solid keyed shaft for belt or pulley drives

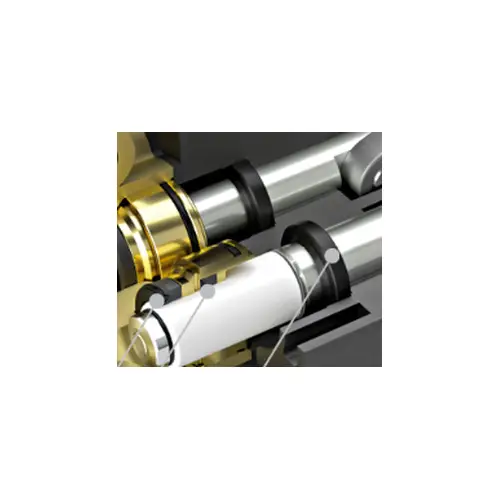

• Plungers: Ceramic plungers for heat and wear resistance
• Manifold: Forged brass manifold for strength and durability
• Seals & Valves: Premium seals and stainless valve assemblies
• Warranty: 5-year commercial warranty with U.S.-based support

What’s Included with XWAM85G35N

• Pre-filled break-in oil for immediate installation and startup
• Oil sight glass for fast visual oil-level checks
• Vented dipstick for proper crankcase ventilation and easy servicing
• Owner’s manual and schematic for installation, maintenance, and parts reference
• Factory performance test report verifying flow and pressure output
• 5-year commercial warranty backed by U.S.-based service support

How the XWAM85G35N Works

• A triplex plunger system uses three ceramic plungers cycling in sequence to generate smooth,
  continuous high-pressure flow with reduced pulsation.
• Operating at 1,750 RPM, the pump balances powerful output with lower mechanical stress, helping
  reduce heat, vibration, and wear on internal components.
• The forged brass manifold withstands high pressures and resists stress cracking and corrosion,
  making it suitable for fresh water and properly treated wash solutions.
• Ceramic plungers and high-grade seals maintain performance and sealing integrity
  during continuous-duty use.
• The 24 mm solid keyed shaft provides a secure, straightforward connection to belt- and
  pulley-driven power units for a wide range of industrial layouts.

Benefits of the XWAM85G35N

• High-volume output: 8.5 GPM supports multi-gun and large-area cleaning.
• Strong pressure: 3,500 PSI delivers serious cleaning power for industrial applications.
• Durable construction: Ceramic plungers, forged brass head, and premium seals provide long service
  life under heavy use.
• Easy maintenance: Oil sight glass and vented dipstick make daily checks simple and fast.
• Factory-verified: Shipped with performance documentation for quality assurance.
• Ready for service: Pre-filled with break-in oil to speed installation and commissioning.
• Long-term value: Covered by a 5-year commercial warranty with accessible service support.

Typical Applications

• Fleet washing: High-volume cleaning of trucks, buses, refuse vehicles, and municipal fleets.
• Building & facility maintenance: Concrete, siding, docks, loading bays, and large exterior surfaces.
• Agricultural equipment: Tractors, sprayers, harvesters, and heavy farm machinery sanitation.
• Mobile cleaning rigs: Contractor trailer systems and multi-gun wash setups.
• Food processing & USDA wash bays: High-flow sanitation in compliant facilities (verify system chemistry).
• Rental and construction yards: High-duty wash equipment for frequent customer use.
• Tank & pipe cleaning: High-volume flushing for industrial sanitation and maintenance cycles.

Why Choose the XWAM85G35N?

• Flow plus pressure: Unlike smaller pumps limited by volume, this model delivers
  8.5 GPM at 3,500 PSI, ideal for large-bay systems and multi-gun operation.
• Industrial-grade build: Forged brass manifold, ceramic plungers, and premium seals are engineered
  for harsh, continuous-duty environments.
• Flexible integration: 24 mm solid keyed shaft fits common belt-drive and pulley-driven
  configurations.
• Service-friendly: Visual oil checks and factory documentation simplify maintenance routines.
• Proven reliability: Each unit is factory-tested, pre-oiled, and backed by a 5-year commercial
  warranty for confidence in long-term operation.

 Summary

• The XWAM85G35N industrial triplex pump delivers 8.5 GPM at 3,500 PSI and
  1,750 RPM through a 24 mm solid keyed shaft, forged brass manifold, and
  ceramic plungers.
• Ideal for fleet washing, facility and building maintenance, agricultural equipment, mobile wash rigs, food
  processing plants, and industrial tank/pipe cleaning, it arrives factory-tested, pre-filled with oil, and
  backed by a 5-year commercial warranty—a dependable, high-flow solution for demanding
  continuous-duty cleaning systems.
