Annovi Reverberi XWA9G30N Heavy-Duty Triplex Pump | 9.0 GPM 3000 PSI 24mm Shaft

The Annovi Reverberi XWA9G30N is a heavy-duty high-volume triplex
plunger pump delivering 9.0 GPM at 3,000 PSI at a controlled
1,750 RPM — engineered for fleet washing, agricultural sanitation,
industrial surface cleaning, concrete restoration, and multi-gun trailer-mounted
wash rigs where maximum flow volume, sustained 3,000 PSI cutting pressure, and
continuous-duty reliability must all be delivered consistently across long
professional operating shifts. Built around a 24 mm solid keyed shaft
, the XWA9G30N integrates with gas engines, electric
motors, and belt-drive systems for flexible installation across stationary and
mobile commercial cleaning platform configurations.

Precision ceramic plungers, stainless steel valves, oversized bearings, and
heavy-duty seals form the internal foundation of the XWA9G30N’s continuous-duty
capability — components selected specifically for the thermal and mechanical demands
of sustained 3,000 PSI high-volume operation in professional environments where
pump reliability directly impacts operational productivity. Every XWA9G30N is
factory-tested, pre-filled with break-in oil, and shipped with a certified
performance test report confirming rated 9.0 GPM flow and 3,000 PSI pressure
output — backed by a 5-year commercial warranty with U.S.-based
nationwide service support.

XWA9G30N Key Specifications

Performance, Drive & Construction

• Model: Annovi Reverberi XWA9G30N
• Flow Rate: 9.0 GPM — high-volume output for
  large-scale cleaning, multi-gun wash systems, and fast
  commercial bay turnover
• Maximum Pressure: 3,000 PSI — industrial-grade
  cutting pressure for tough soils, concrete restoration, fleet
  washing, and agricultural sanitation applications
• Operating Speed: 1,750 RPM — controlled
  low-speed design reduces heat buildup and component fatigue
  in continuous-duty commercial operation

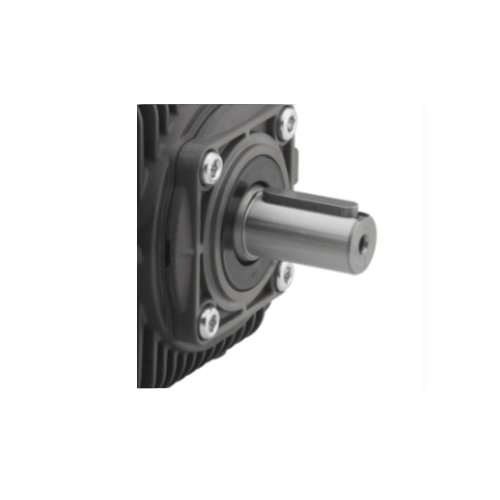

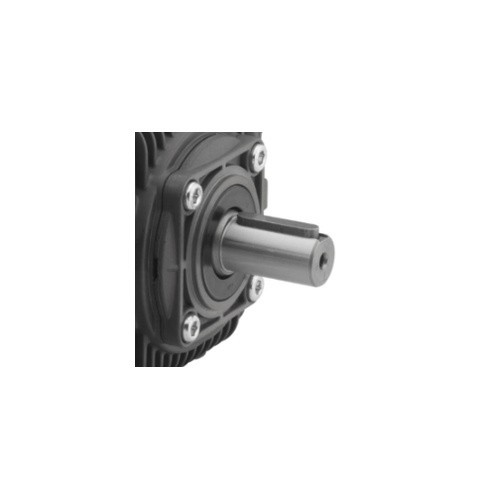

• Shaft: 24 mm solid keyed shaft — versatile
  drive compatibility for gas engines, electric motors, and
  belt-drive system configurations
• Pump Type: Triplex plunger — three-cylinder
  balanced design for smooth, consistent low-pulsation output
  at rated 3,000 PSI
• Plungers: Precision ceramic — minimizes wear
  and heat transfer into packing for extended seal life in
  continuous heavy-duty cycles
• Valves: Stainless steel — corrosion-resistant
  sealing for reliable flow control under constant
  high-volume use
• Bearings: Oversized — reduces friction and
  supports continuous-duty operation under sustained
  3,000 PSI load
• Seals: Heavy-duty — designed for high-duty
  continuous cycles in demanding professional
  cleaning environments
• Oil Management: Integrated oil sight glass and
  vented dipstick for fast daily level checks and
  crankcase pressure control
• Warranty: 5-year commercial warranty with
  U.S.-based nationwide service support

What’s Included with the XWA9G30N

Factory-Ready for Immediate Professional Installation

• Pre-filled break-in oil — factory-installed for
  smooth startup and proper initial lubrication without sourcing
  oil fill separately before first operation
• Oil sight glass — quick visual crankcase oil
  level inspection before each operating shift without
  tools or disassembly
• Vented dipstick — crankcase pressure balance,
  safe servicing, and secondary oil level verification for
  complete daily maintenance checks
• Factory performance test certification — verifies
  9.0 GPM flow and 3,000 PSI pressure output to published
  specifications before every XWA9G30N shipment
• User manual and schematic — installation
  reference, operational guidance, maintenance procedures,
  and parts identification for the life of the pump
• 5-year commercial warranty documentation —
  with U.S.-based nationwide service center
  and parts network coverage

How the XWA9G30N Delivers 9.0 GPM at 3,000 PSI

Triplex Plunger Architecture for High-Volume Continuous-Duty Performance

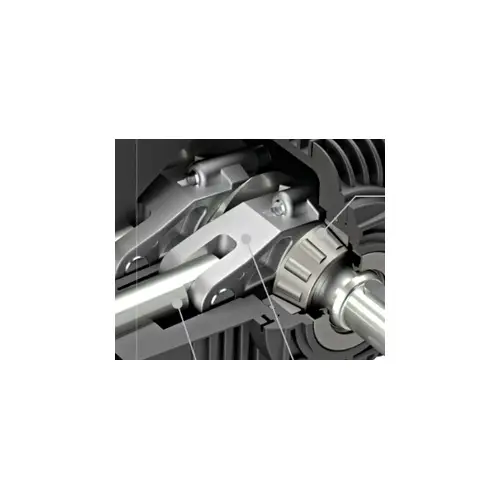

The XWA9G30N uses a triplex plunger design where three precision
ceramic plungers operate in synchronized reciprocation — each cylinder drawing
water through stainless steel inlet valves on the retraction stroke and discharging
at rated 3,000 PSI through stainless discharge valves on the forward stroke. The
overlapping three-cylinder sequence produces steady, consistent output with
substantially reduced pulsation compared to single or dual-piston pump designs —
delivering a smoother flow profile that protects downstream hose assemblies,
spray guns, and multi-gun manifold systems from hydraulic fatigue across long
professional operating shifts.

At 1,750 RPM, the XWA9G30N’s ceramic plungers, valve seats,
and bearing surfaces all cycle at a controlled rate that keeps internal heat
generation within a stable operating range and keeps mechanical stress
significantly below the fatigue threshold that higher-speed pump designs
encounter at equivalent output levels. For fleet wash operators, agricultural
facilities, and industrial cleaning crews running the XWA9G30N across daily
continuous-duty schedules, this translates directly into longer intervals between
seal replacements, more predictable valve wear curves, and sustained 3,000 PSI
output quality that does not degrade as operating hours accumulate.

The oversized bearings are specified for the combined radial and
axial loads generated by 9.0 GPM high-volume output at 3,000 PSI working pressure —
not sized for a lighter-duty application and pressed into service at this output
level. Combined with heavy-duty seals and the low-heat-transfer advantage of
precision ceramic plungers, the XWA9G30N’s internal component specification
reflects the demands of its intended continuous-duty professional
operating environment.

XWA9G30N Key Benefits

Why Heavy-Duty Commercial Operations Choose the XWA9G30N

• 9.0 GPM high-volume output for multi-gun and large-area
  systems: the flow volume that enables simultaneous
  multi-gun operation on trailer rigs and fast large-area
  coverage on agricultural, fleet, and industrial cleaning
  applications — more area cleared per shift than lower-flow
  3,000 PSI alternatives
• 3,000 PSI for serious industrial cutting power:
  effective mechanical action on compacted soils, concrete
  surfaces, heavy equipment deposits, and agricultural residues
  that lower-pressure systems require significantly more passes
  to address efficiently
• 1,750 RPM continuous-duty low-speed design:
  the controlled operating speed that defines commercial-grade
  pump longevity — every hour at 1,750 RPM instead of 3,400 RPM
  means less heat, less seal cycling, less valve fatigue, and
  lower bearing load across
  the operating shift
• 24 mm solid keyed shaft for maximum drive flexibility:
  compatible with gas engines, electric motors, and belt-drive
  configurations — the widest drive compatibility available
  in the 9.0 GPM commercial pump class for
  diverse installation requirements
• Oversized bearings specified for 3,000 PSI duty:
  sized for the actual radial and axial loads generated at
  9.0 GPM and 3,000 PSI — not adapted from a lighter-duty
  platform with insufficient bearing specification for
  this output class
• Precision ceramic plungers extend seal service:
  ceramic’s hardness and low thermal conductivity limit heat
  transfer into the packing stack — directly extending
  water-seal service intervals in continuous
  high-volume operation
• Factory-certified performance on every unit:
  test certification confirming rated 9.0 GPM and 3,000 PSI
  output ships with every XWA9G30N — no performance uncertainty
  for system builders and commercial operators at installation
• 5-year commercial warranty — industry-leading
  coverage: most competing heavy-duty commercial
  pumps in the 9.0 GPM class carry 1–2 year warranties —
  the XWA9G30N’s 5-year coverage reflects Annovi Reverberi’s
  confidence in the platform’s continuous-duty durability

XWA9G30N Typical Applications

Where 9.0 GPM at 3,000 PSI Delivers Heavy-Duty Results

• Fleet washing: commercial trucks, buses, and
  heavy equipment wash stations where 9.0 GPM at 3,000 PSI
  delivers high-volume throughput across long daily wash
  schedules with the continuous-duty reliability that
  fleet operations require
• Agricultural sanitation: farm washdowns, dairy
  operations, livestock facilities, and equipment cleaning where
  high flow volume at 3,000 PSI covers large agricultural
  surfaces efficiently and the XWA9G30N’s low-speed design
  sustains performance across
  extended daily cycles
• Concrete restoration and surface preparation:
  concrete pads, parking structures, walkways, and industrial
  floors where 3,000 PSI mechanical action combined with
  9.0 GPM carry-off volume delivers efficient
  single-pass cleaning results
• Industrial cleaning: warehouses, factories,
  municipal maintenance facilities, and service bays where
  consistent 3,000 PSI output across multi-shift daily
  schedules demands the thermal stability that the XWA9G30N’s
  1,750 RPM design provides
• Trailer-mounted multi-gun contractor rigs:
  the XWA9G30N’s 9.0 GPM output supports simultaneous
  dual-operator configurations with properly balanced manifold
  design and matched nozzle sizing — the right pump for
  contractor trailer builds where maximum productivity
  per rig is the priority
• Heavy-duty wash stations: truck washes,
  equipment bays, and commercial vehicle facilities where
  high-volume continuous-duty output and the confidence of
  a 5-year warranty are both required
  daily operating standards

XWA9G30N Installation & Maintenance

Best Practices for Long Service Life at 9.0 GPM and 3,000 PSI

• Mount on a rigid, vibration-resistant base:
  proper structural mounting minimizes transmitted vibration
  into the pump crankcase and manifold — critical for
  trailer-mounted and skid-mounted systems where road
  vibration adds to operational mechanical stress
• Verify drive system compatibility before
  installation: confirm shaft engagement depth,
  keyway alignment, and drive speed to rated 1,750 RPM —
  overspeeding at 9.0 GPM and 3,000 PSI output
  accelerates wear on all internal components
• Feed clean, filtered water from adequate supply:
  install an upstream inlet strainer and ensure supply line
  sizing provides adequate NPSH for 9.0 GPM demand —
  inlet restriction at this flow rate creates cavitation
  that damages ceramic plungers and valve seats
• Size manifold and nozzles for multi-gun
  operation: for dual-operator configurations,
  use a balanced manifold with matched hose lengths and
  correctly sized nozzle orifices to maintain even pressure
  distribution across all outlets at
  full 9.0 GPM flow
• Pair with a correctly rated unloader valve:
  size the unloader for 3,000 PSI and 9.0 GPM — an
  undersized or incorrectly adjusted unloader creates
  pressure spikes that damage pump packings and reduce
  component service life
• Check oil before every shift: use the sight
  glass for visual confirmation and the dipstick for
  secondary verification — adequate crankcase oil is
  the foundation of bearing longevity in 9.0 GPM
  continuous-duty operation
• Never run dry: always confirm water supply
  is connected and flowing before starting — even brief
  dry operation at 9.0 GPM damages ceramic plunger
  packings and voids warranty coverage
• First oil change at approximately 50 hours:
  then follow duty-cycle-based intervals — heavy continuous-duty
  agricultural and fleet applications require more frequent
  oil service than intermittent commercial use
• Flush after chemical applications: run clean
  water through the XWA9G30N after every detergent or
  sanitizer use to protect manifold passages, valve seats,
  and plunger packings from
  chemical residue buildup
• Winterize before storage: drain completely
  or use pump-safe antifreeze — freeze damage to internal
  components is not covered under the
  5-year warranty

Why Choose the Annovi Reverberi XWA9G30N

Maximum Flow, 3,000 PSI Power, and Continuous-Duty Engineering

• 9.0 GPM at 3,000 PSI — one of the most capable
  specifications in the commercial heavy-duty class:
  the combination of maximum flow volume and industrial-grade
  pressure makes the XWA9G30N the right pump for operations
  where both throughput speed and cutting power are
  non-negotiable requirements
• Multi-gun trailer rig capable: 9.0 GPM is
  the flow volume that enables productive simultaneous
  dual-operator configurations — a capability that defines
  the XWA9G30N’s position in the contractor
  trailer rig market
• Annovi Reverberi quality since 1958: over
  60 years of commercial and industrial pump engineering
  trusted by OEMs, contractors, and industrial operators
  globally — every XWA9G30N factory-tested to verified
  specifications before shipment
• 5-year warranty on a heavy-duty commercial
  platform: exceptional coverage in the 9.0 GPM
  pump class — backed by U.S.-based nationwide service
  centers and the global Annovi Reverberi
  parts network
• Broadest drive compatibility in the class:
  24 mm solid keyed shaft works with gas engines, electric
  motors, and belt-drive systems — more installation
  flexibility than competing pumps with
  shaft-specific configurations
• Backed by WSHPWR: expert application support,
  multi-gun system sizing guidance, drive compatibility
  confirmation, and full parts availability for the XWA9G30N
  and the complete Annovi Reverberi
  XWA pump family

The Annovi Reverberi XWA9G30N delivers 9.0 GPM at
3,000 PSI at a controlled 1,750 RPM through a
24 mm solid keyed shaft compatible with gas engines, electric
motors, and belt-drive systems — a heavy-duty commercial triplex pump engineered
for fleet washing, agricultural sanitation, multi-gun contractor trailer rigs, and
industrial cleaning where maximum flow volume, 3,000 PSI sustained output,
continuous-duty reliability, and 5-year commercial warranty coverage
are all required. Contact WSHPWR for current pricing, availability, drive
compatibility confirmation, and application support.
