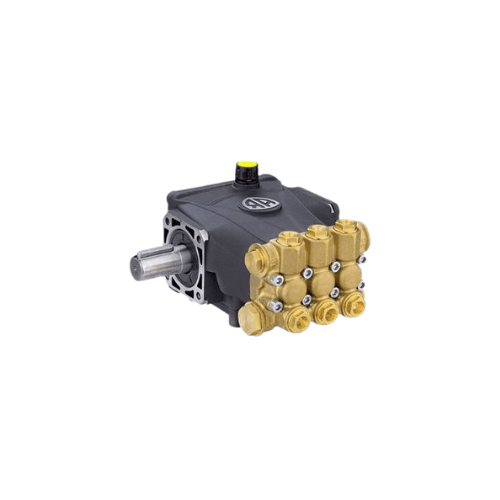

RCA35G25N-SX LH Triplex Pump | 3.5 GPM 2500 PSI

RCA35G25N-SX Pump – 3.5 GPM, 2500 PSI, Left-Hand 24mm Shaft, 3400 RPM

• Specialized left-hand (SX) triplex plunger pump engineered for reverse-orientation drive layouts.
• Produces 3.5 GPM at 2500 PSI at 3400 RPM for strong cleaning performance in compact rigs.
• 24mm solid shaft in left-hand configuration supports reverse-rotation engines and mirrored dual-pump setups.
• WSHPWR.com-ready solution for OEM builds, retrofits, and replacement applications that require SX fitment.

Performance Specifications of RCA35G25N-SX

• Flow Rate: 3.5 GPM.
• Maximum Pressure: 2500 PSI.
• Operating Speed: 3400 RPM.

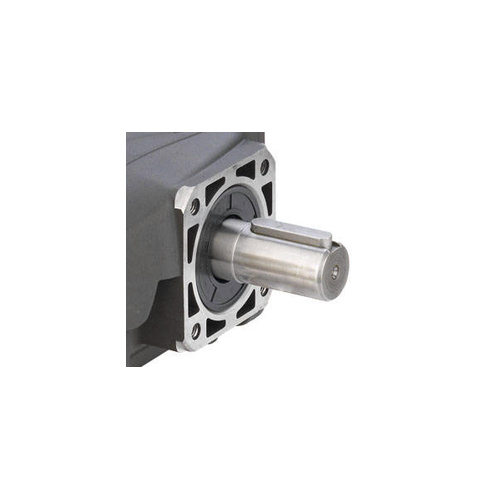

• Shaft Type: 24mm solid shaft, left-hand (SX) drive configuration.
• Pump Type: Triplex plunger pump with ceramic plungers.
• Warranty: 5-year commercial-use warranty.

Mounting & Integration

• RCA35G25N-SX left-hand SX orientation supports equipment designs where standard right-hand packages will not match frame layout or plumbing routing.
• 24mm shaft interface integrates with common engine-coupled and belt-drive configurations used in portable and trailer rigs.
• Built for applications requiring mirrored pump placement, dual-pump manifolds, or specific crankshaft orientation.
• Best suited for replacement installs where the original system requires left-hand rotation compatibility.

Included Components

• RCA35G25N-SX pump pre-filled with break-in oil.
• Oil sight glass and vented dipstick for quick inspections.
• Owner’s manual and detailed schematic for service reference.
• Factory performance test certification.
• Warranty documentation with U.S.-based service coverage.

Materials & Construction

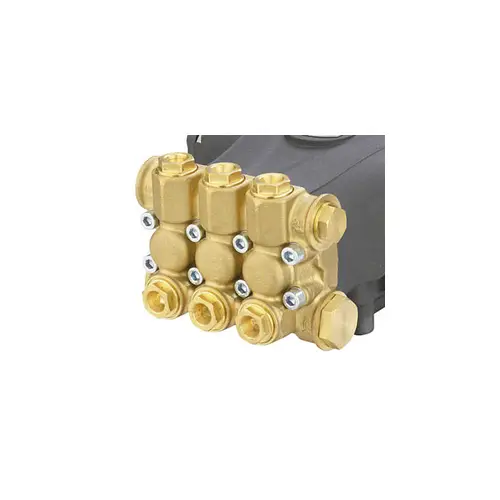

• Forged brass manifold engineered for pressure stability and corrosion resistance.
• Ceramic plungers selected for wear resistance and consistent sealing performance.
• Stainless steel valves designed for durability under frequent pressure cycling.
• High-grade seals and internal components built to support extended service intervals.
• Industrial-grade bearings and hardened parts to maintain long-term tolerances.

Quality Control & Validation

• Factory pressure-tested prior to packaging.
• Sealing integrity and output verification performed during final inspection.
• Critical assembly checks completed to confirm consistent performance and reliability.
• Packaged to protect mounting surfaces and internal components during shipment.

Operating Guidance

• Use clean, filtered water supply within manufacturer requirements.
• Match engine or motor power to the intended operating pressure and flow at 3400 RPM.
• Confirm correct rotation requirements for SX applications before start-up.
• Limit extended bypass operation per best practice to reduce heat buildup in the pump and plumbing.
• Monitor oil level and condition routinely, and follow scheduled maintenance intervals.

Key Features & Benefits of RCA35G25N-SX

• Left-hand shaft orientation solves compatibility needs for reverse-rotation or mirrored rig configurations.
• 3.5 GPM at 2500 PSI delivers an effective balance of cleaning power and water efficiency.
• Ceramic plungers, stainless valves, and forged brass manifold support industrial-grade durability.
• Sight glass and vented dipstick simplify routine service checks and maintenance planning.
• Backed by a 5-year commercial-use warranty with nationwide support coverage.

Typical Applications

• Residential vehicle and property washing where a left-hand pump configuration is required.
• Contractor trailers and small fleet wash rigs using reverse-rotation engines.
• OEM and custom pressure washer builds that specify left-hand 24mm shaft compatibility.
• Outdoor cleaning of decks, patios, driveways, siding, and light commercial properties.
