XTV3G22E-F8 Electric Pump | 3.0 GPM 2200 PSI 3400 RPM

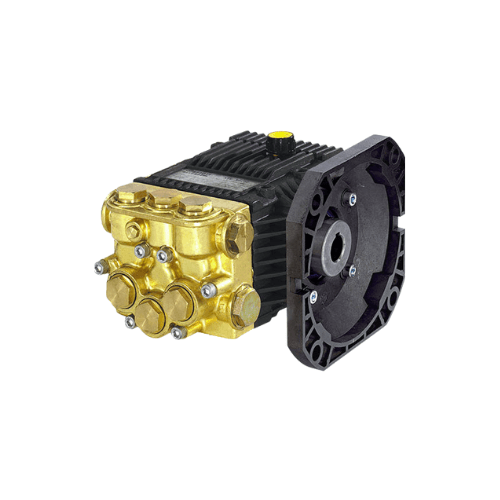

Annovi Reverberi XTV3G22E-F8 Triplex Plunger Pump

Overview

The Annovi Reverberi XTV3G22E-F8 is a compact yet highly durable triplex plunger pump designed for
electric-driven pressure washer systems that demand smooth performance, dependable pressure control, and
long service life. Delivering 3.0 GPM at 2,200 PSI while operating at 3,400 RPM, this pump
is ideally suited for residential, contractor, and light industrial cleaning applications where consistency
and reliability matter more than extreme output.

Unlike axial cam pumps commonly found on entry-level machines, the XTV3G22E-F8 utilizes a true
triplex ceramic plunger design. This architecture provides steadier flow, reduced vibration, and
significantly lower internal stress, helping extend seal life and improve overall system durability.
The integrated F8 shaft configuration allows direct, secure coupling to compatible electric motors,
making installation straightforward for both new builds and replacement applications.

Key Specifications

• Flow Rate: 3.0 GPM
• Maximum Pressure: 2,200 PSI
• Operating Speed: 3,400 RPM
• Shaft Type: F8 shaft for direct electric motor coupling
• Pump Type: Triplex ceramic plunger pump
• Construction: Brass manifold, ceramic plungers, stainless steel valves
• Lubrication: Oil bath crankcase with sight glass and vented dipstick
• Warranty: 5-year manufacturer warranty

What’s Included

• Factory pre-filled break-in crankcase oil for immediate installation
• Vented dipstick to regulate crankcase pressure and simplify oil checks
• Oil sight glass for quick visual monitoring of oil level and condition
• Mounting hardware for secure and accurate installation
• Operator’s manual with startup and maintenance guidance
• Detailed parts schematic for long-term service support
• Nationwide U.S. service and parts availability

How the XTV3G22E-F8 Works

The XTV3G22E-F8 operates using three synchronized ceramic plungers driven by a precision-machined
crankshaft. As each plunger cycles through its stroke, water is drawn into the pump and discharged
at consistent pressure with minimal pulsation. This smooth hydraulic output improves spray pattern
control and reduces fatigue on downstream components such as hoses, guns, and nozzles.

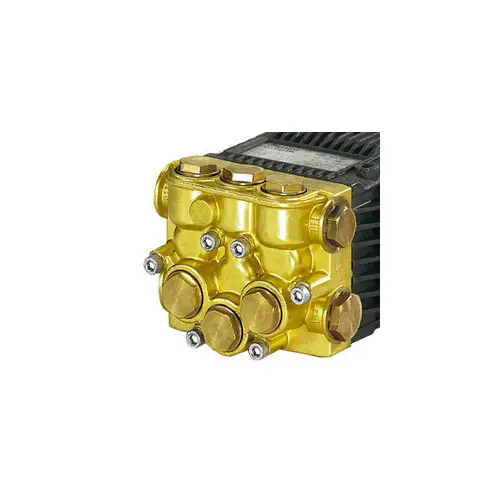

The brass manifold provides excellent resistance to corrosion, scaling, and chemical exposure,
making the pump well-suited for use with detergents and hard water. Stainless steel valves
ensure reliable sealing and consistent flow control, even under frequent start/stop operation.

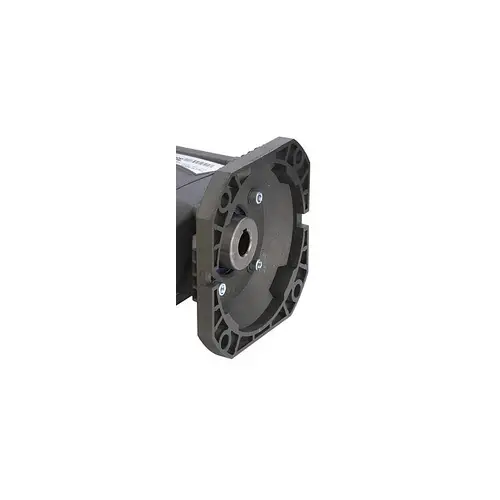

The F8 shaft design enables direct motor coupling, reducing alignment issues and eliminating the
need for belt drives or adapters in compact electric pressure washer systems.

Benefits of the XTV3G22E-F8

• Balanced Cleaning Power: 2,200 PSI and 3.0 GPM provide effective cleaning without excessive surface damage.
• Triplex Durability: Ceramic plungers and brass manifold deliver longer life than axial cam alternatives.
• Reduced Pulsation: Smooth flow improves operator control and extends accessory lifespan.
• Easy Electric Integration: F8 shaft supports fast, secure motor installation.
• Quiet, Emissions-Free Operation: Ideal for indoor, residential, and noise-sensitive environments.
• Low Maintenance: Pre-filled oil, sight glass, and vented dipstick simplify routine service.
• Long-Term Confidence: Backed by a 5-year warranty and nationwide service support.

Typical Applications

• Residential Pressure Washing: Driveways, patios, decks, siding, fencing, and outdoor furniture.
• Vehicle & Equipment Cleaning: Cars, trucks, tractors, ATVs, RVs, and lawn equipment.
• Contractor & Property Maintenance: Storefronts, sidewalks, small commercial exteriors.
• Light Industrial Support: Facility washdowns, workshops, warehouses, and maintenance bays.

Why Choose Annovi Reverberi

Annovi Reverberi is recognized worldwide for precision-engineered pumps that deliver dependable
performance across residential, commercial, and industrial markets. Each XTV-series pump is
factory-tested to verify flow, pressure, and sealing integrity before shipment. Replacement parts
are widely available, and the design emphasizes serviceability to help keep downtime and operating
costs to a minimum.

Final Summary

• Model: Annovi Reverberi XTV3G22E-F8
• Output: 3.0 GPM at 2,200 PSI
• Speed: 3,400 RPM
• Drive: F8 shaft for direct electric motor coupling
• Design: Triplex ceramic plunger pump with brass manifold and stainless steel valves
• Use Case: Residential, contractor, and light industrial pressure washing
• Support: 5-year warranty with nationwide U.S. service coverage
