XTV2G20D-F8 Triplex Pump | 2.0 GPM 2000 PSI F8 Shaft

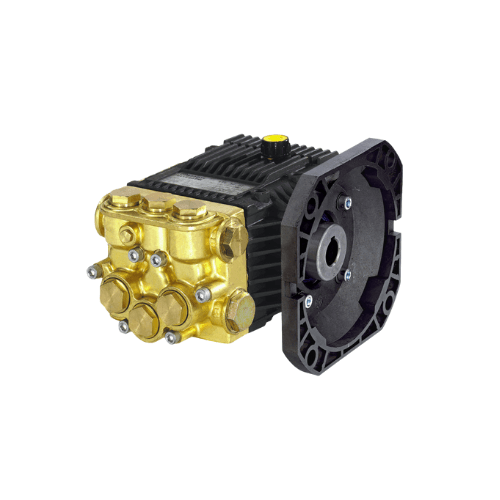

Annovi Reverberi XTV2G20D-F8 Pressure Washer Pump

Overview

The Annovi Reverberi XTV2G20D-F8 is a compact, high-quality triplex plunger pressure washer pump
engineered for users who want professional reliability in a small, efficient package. Delivering
2.0 GPM at 2,000 PSI, this pump provides the ideal balance of pressure and flow for residential,
commercial, and light industrial cleaning tasks. It is especially well suited for electric-driven
pressure washer systems where smooth operation, easy installation, and long service life are
essential.

Unlike entry-level axial cam pumps, the XTV2G20D-F8 features a true
triplex ceramic plunger design. This architecture produces steadier pressure, reduced pulsation,
and significantly lower internal stress. The result is quieter operation, improved spray consistency,
and longer seal and bearing life. Combined with Annovi Reverberi’s precision manufacturing and
factory testing, this pump is designed to outperform and outlast many pumps in its class.

Key Specifications

• Flow Rate: 2.0 GPM
• Maximum Pressure: 2,000 PSI
• Shaft Size: 5/8″ hollow shaft
• Flange Type: F8 electric motor mount
• Pump Type: Triplex ceramic plunger pump
• Construction: Brass manifold, ceramic plungers, stainless steel valves
• Lubrication: Oil bath crankcase with sight glass
• Warranty: 5-year limited manufacturer warranty

What’s Included

• Factory pre-filled break-in oil for immediate installation
• Oil sight glass for quick visual oil checks
• F8 motor-mount flange integrated into the pump body
• User manual with installation and operation guidance
• Detailed parts schematic for service and rebuild reference
• Mounting hardware for secure and vibration-resistant installation

How the XTV2G20D-F8 Works

At the heart of the XTV2G20D-F8 is a three-plunger pumping system driven by a precision-machined
crankshaft. Each ceramic plunger moves in a phased sequence, drawing water into the pump and
discharging it at consistent pressure. This triplex action minimizes pressure spikes and flow
variation, resulting in smoother operation than axial or wobble-plate designs.

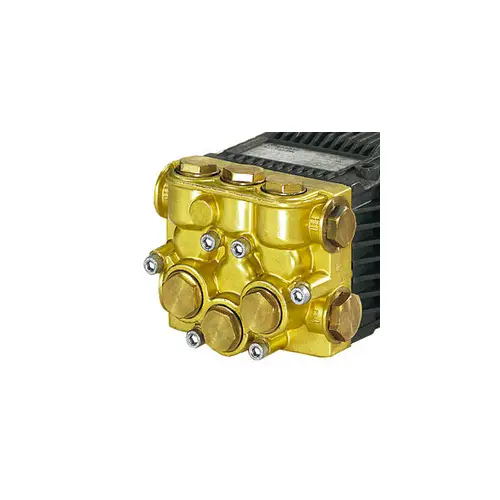

The brass manifold provides excellent resistance to corrosion, scaling, and chemical exposure,
making the pump compatible with detergents and a wide range of water conditions. Inside the
manifold, stainless steel valves control intake and discharge flow with reliable sealing and long
cycle life. The ceramic plungers are highly resistant to heat and abrasion, helping maintain sealing
integrity and consistent output over time.

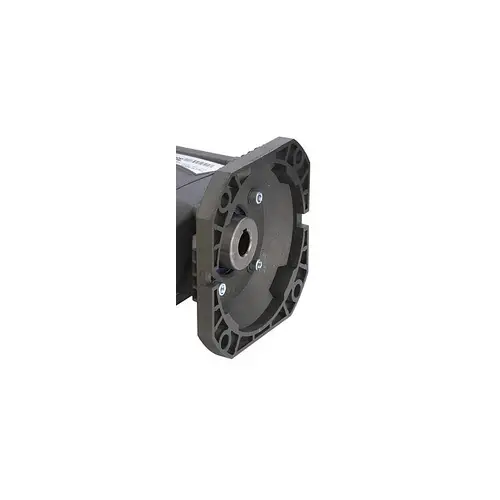

The 5/8″ hollow shaft with F8 flange allows direct coupling to compatible electric motors,
creating a compact, well-aligned assembly. This direct-mount design reduces vibration, simplifies
installation, and makes the pump an excellent choice for both new equipment builds and replacement
projects.

Benefits

• Balanced Cleaning Power: 2,000 PSI at 2.0 GPM is ideal for effective cleaning without excessive surface damage.
• Triplex Reliability: Ceramic plungers and stainless valves deliver longer service life than axial cam pumps.
• Smooth Operation: Reduced pulsation improves spray control and lowers stress on hoses and accessories.
• Compact Installation: F8 flange and 5/8″ hollow shaft support tight, space-efficient builds.
• Low Maintenance: Pre-filled oil and sight glass simplify routine service checks.
• Quiet, Electric-Friendly Design: Ideal for residential and indoor cleaning environments.
• Long-Term Confidence: Backed by a 5-year warranty and widespread parts availability.

Typical Applications

• Vehicle Washing: Cars, trucks, boats, ATVs, and light equipment.
• Home Exterior Cleaning: Siding, decks, patios, fences, driveways, and walkways.
• Surface Cleaning: Concrete, brick, stone, and tile with appropriate accessories.
• Light Commercial Use: Property maintenance, storefront cleaning, mobile wash units.
• Pump Replacement Projects: Upgrading from axial or worn triplex pumps.

Why Choose the XTV2G20D-F8

The XTV2G20D-F8 stands out as a premium upgrade for users who want professional-grade reliability
without stepping into oversized or overpowered equipment. It combines compact dimensions with
true triplex performance, making it a smart choice for homeowners, contractors, and service
technicians alike.

Every pump is factory-tested for pressure, flow, and sealing integrity before shipment. Annovi
Reverberi’s global reputation for precision engineering, combined with readily available replacement
parts and U.S.-based service support, ensures that this pump remains a dependable component in
your cleaning system for years to come.

Summary

• Provides 2.0 GPM at 2,000 PSI for versatile cleaning performance.
• Triplex ceramic plunger design delivers smooth, low-pulsation output.
• Brass manifold and stainless steel valves support long service life.
• 5/8″ hollow shaft with F8 flange allows easy electric motor installation.
• Ideal for residential, commercial, and light industrial pressure washer systems.
• Backed by a 5-year manufacturer warranty for added confidence.
