XJV25G15E-F8 2.5 GPM 1500 PSI | 3400 RPM F8 electric pump

XJV25G15E-F8 by Annovi Reverberi — XJV Series Axial Radial Pump with Integrated Unloader | 2.5 GPM | 1,500 PSI | Brass Head | Fixed 12% Injector | NEMA 56C Electric Motor Mount | 3,750 Cleaning Units

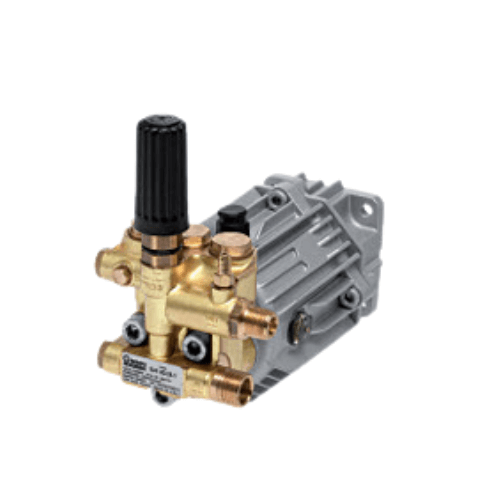

The XJV25G15E-F8 by Annovi Reverberi is an XJV Series axial radial pump with integrated unloader delivering 2.5 GPM at 1,500 PSI — engineered for direct electric motor coupling via the F8 NEMA 56C Electric interface. Rated at 2.5 GPM and 1,500 PSI, the XJV25G15E-F8 delivers 3,750 cleaning units — through a brass manifold head, ceramic pistons, an integrated adjustable unloader, and a fixed 12% chemical injector in one compact, factory-assembled pump body. Protected by a 2-year US limited warranty and built to be fully rebuilt rather than replaced. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the XJV25G15E-F8 is the complete integrated XJV solution for electric motor-powered pressure washing at 1,500 PSI.

Motor Compatibility — What Drives the XJV25G15E-F8

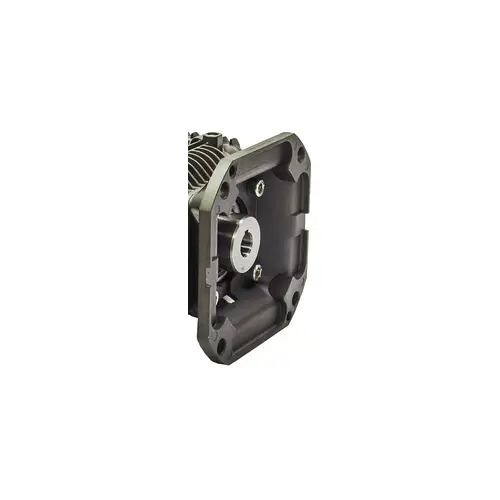

F8 NEMA 56C Flange. 5/8″ I.D. Hollow Shaft. 2.5 HP Minimum for Rated Output.

The XJV25G15E-F8‘s F8 NEMA 56C flange and 5/8″ I.D. hollow shaft mount directly to standard NEMA 56C-frame electric motors — the most common electric motor configuration for stationary wash stations, industrial cleaning installations, and motor-driven residential pressure washer systems. A minimum of 2.5 horsepower is required to deliver full rated output at 2.5 GPM / 1,500 PSI. NEMA 56C-frame electric motors from all major manufacturers are compatible with the F8 direct-mount interface.

Key Specifications

XJV25G15E-F8 Technical Details at a Glance

• Flow Rate: 2.5 GPM
• Maximum Pressure: 1,500 PSI (103 bar)
• Cleaning Units: 3,750 (GPM x PSI)
• Operating Speed: 3,400 RPM
• Power Required: 2.5 HP minimum
• Pump Type: XJV Series axial radial — integrated unloader, fully rebuildable

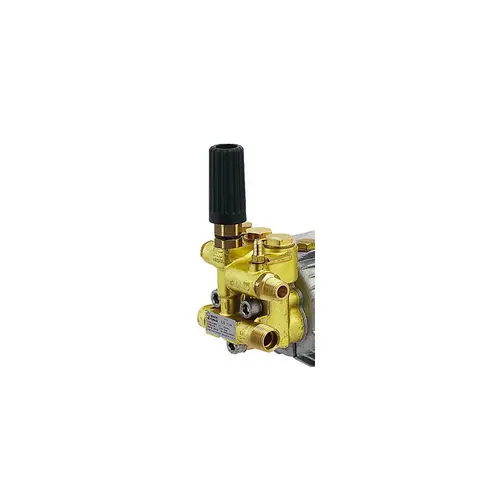

• Head Material: Brass
• Pistons: Ceramic
• Shaft/Flange: 5/8″ I.D. hollow shaft — F8 — NEMA 56C electric motor direct mount
• Bore Diameter: 15mm / Stroke: 4.8mm
• Inlet: 1/2″ M
• Outlet: 3/8″ M
• Oil Capacity: 4.5 oz
• Max Temperature: 140 degrees F
• Weight: 8 lbs

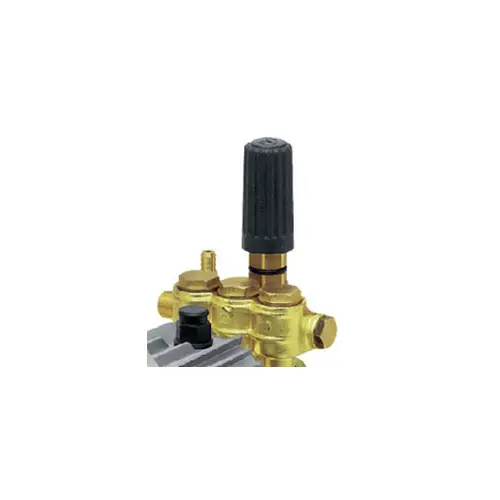

• Integrated Unloader: Adjustable — set working pressure to match nozzle selection and application
• Chemical Injector: Fixed 12% — integrated; detergent hose and filter sold separately
• Serviceability: Fully rebuildable — all components nationally available through AR North America
• Warranty: 2-year limited warranty — US-based coverage through Annovi Reverberi North America

Fixed 12% Chemical Injector — Integrated. Detergent Hose and Filter Sold Separately.

Injector Ready. Complete the System.

The XJV25G15E-F8 ships with a fixed 12% chemical injector integrated directly into the pump body. The injector draws detergent automatically when the downstream nozzle creates the correct pressure differential — no separate injector tee required. What is not included: the detergent hose and filter. The DETHOSE-FIL6X 6ft Detergent Hose with Red Filter is the correct accessory to complete the chemical delivery system at the XJV25G15E-F8 injector port.

XJV25G15E-F8 Typical Applications

• Stationary electric motor-driven wash stations — F8 NEMA 56C direct motor mount for fixed wash bay, industrial cleaning, and commercial wash station installations
• OEM equipment builds and replacements — the XJV25G15E-F8 integrated pump-and-unloader format with AR North America nationally stocked parts simplifies OEM design and field replacement
• Residential and light commercial cleaning — 3,750 cleaning units with integrated pressure regulation for consistent output
• Complete the chemical delivery system — add the DETHOSE-FIL6X 6ft Detergent Hose with Red Filter to complete downstream chemical delivery at the XJV25G15E-F8 injector port.

2-Year US Warranty, National Parts Availability, and Wholesale Pricing

XJV25G15E-F8 — XJV Series. Brass Head. Integrated Unloader. Backed for Two Years.

The XJV25G15E-F8 is protected by Annovi Reverberi’s 2-year limited warranty through the US-based warranty and service network administered by AR North America. Every wear component is stocked nationally through authorized AR North America distribution channels. Contractors, OEM builders, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the XJV25G15E-F8 and the complete WSHPWR pump package lineup.

3,750 Cleaning Units. 1,500 PSI. 2.5 GPM. Brass Head. Integrated Unloader. Fixed 12% Injector. F8 NEMA 56C Electric. 2-Year US Warranty.

Annovi Reverberi XJV Series. Axial Radial. Integrated Unloader. Fully Rebuildable. Nationwide Service.

The XJV25G15E-F8 is the complete XJV integrated axial solution for electric motor-powered pressure washing at 1,500 PSI — brass head, ceramic pistons, integrated adjustable unloader, and fixed 12% chemical injector in one compact factory-assembled pump body. Two-year US warranty. Nationwide AR North America service centers. Fully rebuildable.
