TPR600-03-P SS Rotating Nozzle With Plug | 8700 PSI

TPR600-03-P Stainless Steel Rotating Nozzle 8700 PSI

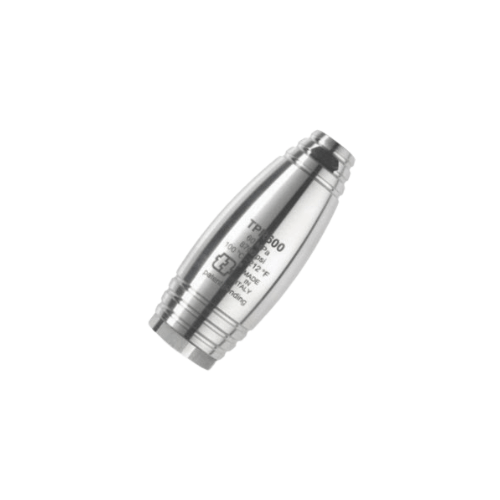

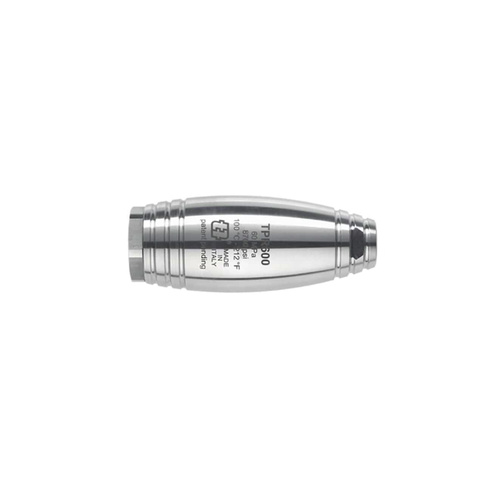

The Annovi Reverberi TPR600-03-P Rotating Nozzle is a professional-grade, stainless-steel
turbo nozzle with an integrated protective rubber cover, engineered for demanding 600-bar
(8,700 PSI) pressure-washing applications. Rated for working pressures up to
8,700 PSI (600 bar) and water temperatures up to 212°F (100°C),
this nozzle is built for heavy, continuous-duty service in industrial plants, shipyards, fleet maintenance
facilities, and hydro-excavation support fleets. The 3.0 orifice size delivers a strong
balance of impact, efficiency, and control, making it ideal for medium-flow 600-bar pump systems where both
cutting power and cleaning speed are priorities.

At its core, the TPR600-03-P uses a precision rotating assembly that transforms a concentrated 0° jet
into a fast-spinning 20° cone pattern. Instead of striking the surface at a single fixed
point, the jet continuously sweeps a tight circular path, multiplying the number of high-energy impacts on
the work area. This turbo action dramatically increases cleaning efficiency compared to a static straight
tip, helping operators strip coatings, rust, scale, and heavy residue in fewer passes. The “-P” rubber cover
further enhances the design by absorbing impacts, protecting painted or delicate surfaces, and improving
operator grip in wet, soapy, or oily environments.

Key Features for TPR600-03-P

• 8,700 PSI (600 bar) rating: Built for serious high-pressure systems used in industrial,
  marine, and heavy-construction cleaning where full-rated pressure is a daily requirement.
• 3.0 orifice size: Medium nozzle size tailored to mid-range GPM at 600 bar, delivering
  aggressive impact with good productivity and coverage.
• Rotating 20° spray cone: Converts a 0° pencil stream into a tight rotating cone,
  increasing impact frequency and reducing striping or streaking compared to a fixed jet.
• Protective rubber cover (“-P” series): Molded shroud around the stainless
  body that cushions accidental impacts, protects painted or plated surfaces, and improves handling.
• Stainless-steel body: Corrosion-resistant housing designed to withstand chemicals,
  saltwater mist, humidity, and the mechanical abuse common in industrial wash environments.
• Hardened nozzle and seat: Wear-resistant internal components maintain spray pattern,
  rotation quality, and operating pressure over long, continuous-duty cycles.
• High-temperature capable: Rated for water temperatures up to
  212°F (100°C), ideal for hot-water systems used to cut grease, oils, and organic
  buildup more quickly.
• Standard 1/4″ female inlet: Professional thread connection for easy integration with
  600-bar guns, lances, and quick-coupler adapters.

Construction & Design Advantages of TPR600-03-P

• Impact-absorbing rubber shroud: The protective cover softens contact with tanks, decks,
  pipe racks, vehicle bodies, and structural members, helping prevent damage to both the nozzle and the
  work surface.
• Improved grip & ergonomics: The rubber exterior provides a secure, non-slip grip in
  wet or gloved conditions, enhancing operator comfort and control during long shifts.
• Compact, protected profile: Short overall length and fully shrouded head make the nozzle
  easier to maneuver in tight spaces such as inside tanks, under platforms, or around piping and equipment.
• Precision rotor assembly: Balanced rotating group maintains smooth, consistent rotation
  at operating pressure, minimizing vibration and providing a stable spray cone.
• Vertical-start behavior: Internal rotor and check-valve geometry help reduce start-up
  hammer when the trigger is pulled, protecting the nozzle insert and upstream components.
• Durable in harsh conditions: Stainless and rubber construction is optimized for outdoor,
  coastal, refinery, and plant environments where corrosion and impact hazards are common.

TPR600-03-P  Typical Applications

• Shipyards & marine maintenance: Removing marine growth, rust, failed coatings, and
  scale from hull plating, decks, ramps, and ballast tanks where accidental contact with steel surfaces is
  frequent.
• Industrial plant cleaning: Stripping paints, oxides, baked-on product, and chemical
  deposits from tanks, vessels, process equipment, catwalks, and containment walls.
• Concrete & construction work: Deep cleaning slabs, ramps, tilt-wall panels, forms,
  and precast components before sealing, overlays, or structural repair.
• Hydro-excavation & vacuum trucks: Washing debris tanks, booms, tools, and hose reels
  between jobs while minimizing damage to painted truck bodies and tank interiors.
• Fleet & heavy equipment wash: Removing compacted mud, grease, and road film from dump
  trucks, vac trucks, loaders, excavators, sweepers, and refuse vehicles.
• Municipal & public works: Cleaning bridges, culverts, piers, water-treatment
  structures, and other infrastructure where high impact and controlled coverage are required.

Performance & Sizing Guidelines

TPR600-03-P Stainless Steel Rotating Nozzle 8700 PSI

• Flow pairing: The 3.0 orifice is typically matched to mid-flow 600-bar pumps; consult
  nozzle sizing charts or pump curves to confirm the actual GPM and PSI at your operating point.
• Minimum operating pressure: Turbo nozzles generally require around 2,000–2,200 PSI to
  rotate correctly; below this threshold, the jet behaves more like a straight 0° stream.
• Impact vs. coverage: The 3.0 size offers a strong balance—enough flow to cover surfaces
  efficiently while still delivering concentrated mechanical cutting action.
• System rating requirements: All hoses, guns, lances, swivels, and fittings must be rated
  for at least 8,700 PSI and 212°F to ensure safe operation.
• Operator technique: Maintain a steady stand-off distance and consistent travel speed to
  achieve an even, streak-free finish and maximize nozzle service life.

TPR600-03-P Best Practices for Use & Maintenance

• Flush before installation: Purge lines with a standard fan nozzle to remove rust, scale,
  or debris that could damage the rotating group or nozzle seat.
• Ramp pressure gradually: Avoid snapping the trigger fully open; gradual pressurization
  reduces mechanical shock to the nozzle and upstream components.
• Monitor spray pattern & sound: Changes in cone shape, rotation speed, vibration, or
  noise are signs of wear or contamination—inspect and replace the nozzle if performance declines.
• Rinse after chemical use: After detergents or process chemicals are used upstream, flush
  with clean water to protect stainless surfaces and the rubber housing.
• Store capped or in a holder: When not in service, keep the nozzle protected to prevent
  orifice damage and contamination inside the rubber shroud.
