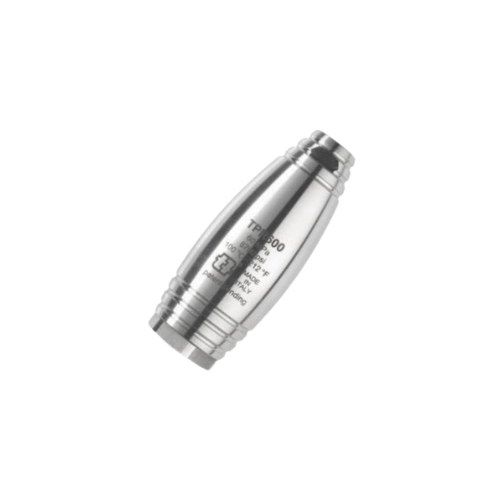

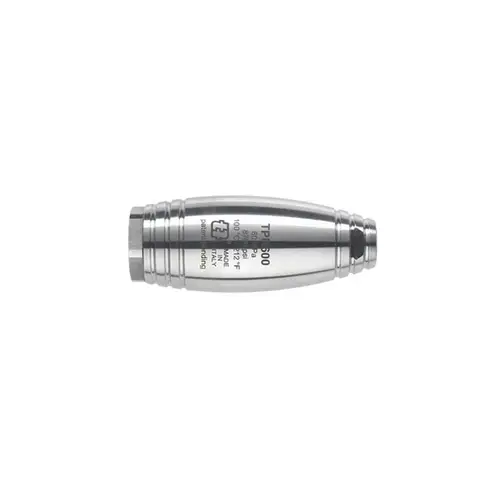

TPR600-04 SS Rotating Nozzle | 8700 PSI Heavy Duty

TPR600-04 Stainless Steel Rotating Nozzle 8700 PSI

The Annovi Reverberi TPR600-04 Rotating Nozzle is a high-output, stainless-steel turbo
nozzle engineered for extreme industrial cleaning applications where both impact and broad coverage are needed.
Rated for pressures up to 8,700 PSI (600 bar) and water temperatures up to
212°F (100°C), this size 4.0 orifice version delivers a powerful,
fast-spinning jet ideal for mid-to-high flow pump systems. Its rotating 0° stream produces aggressive
mechanical cutting action while sweeping a controlled cone pattern across large surfaces, dramatically reducing
cleaning time compared to fixed pencil jets or standard fan tips.

Built with a compact stainless-steel body and hardened wear components,
the TPR600-04 stands up to extended duty cycles in marine, industrial, fleet, and construction environments.
Its 1/4″ female inlet makes it compatible with most 600-bar lances and guns, while the
precision rotor assembly ensures smooth operation in any orientation—vertical, horizontal, or overhead. For
operators running larger pump outputs or working on broad surfaces like tanks, decks, and structural steel,
the 4.0 orifice provides the right blend of power and productivity.

TPR600-04 Key Features

• 8,700 PSI rating: Designed for extreme-duty cleaning where high impact and reliability are required daily.
• 4.0 orifice size: Optimized for higher GPM systems, improving coverage and productivity without losing cutting strength.
• Rotating turbo action: Converts a zero-degree jet into a rapidly spinning cone, multiplying cleaning power while reducing streaking.
• Stainless-steel body: Corrosion-resistant construction ideal for marine, chemical, food-grade, and outdoor environments.
• Wear-resistant internals: Hardened nozzle and seat maintain spray quality even under abrasive conditions.
• 212°F temperature capability: Allows hot-water use for improved removal of oils, greases, and organic residues.
• 1/4″ female inlet: Standard connection for quick integration with professional high-pressure rigs.
• Vertical start behavior: Built to minimize start-up hammer and protect both the nozzle and upstream components.

Construction & Design Advantages

• Heavy-duty stainless shell: Excellent resistance to corrosion, impact, and chemical exposure.
• Any-angle operation: Functions reliably in vertical, overhead, or horizontal positions.
• Precision rotor assembly: Maintains a consistent, tight impact path for uniform cleaning results.
• Productive spray footprint: Higher flow capacity makes this model effective for covering larger areas quickly.
• TPR600-series compatibility: Shares the same form factor, threads, and temperature/pressure specs across all TPR600 sizes.

Typical Applications

• Shipyards & marine facilities: Removing coatings, rust, barnacles, and marine growth from hulls, decks, ramps, and tanks.
• Industrial plant cleaning: Cutting through scale, coatings, dried process materials, soot, and residues on steel and concrete.
• Concrete & construction: Cleaning slabs, parking decks, tilt-up panels, and precast surfaces before coating or repair.
• Oil, gas & heavy industry: Washing heat exchangers, equipment frames, piping racks, platforms, and containment areas.
• Vacuum trucks & hydro-excavation: Washing tanks, booms, debris bodies, and removing compacted clay or slurry from tools.
• Fleet & municipal maintenance: High-impact cleaning for dump trucks, garbage trucks, sweepers, and public works equipment.

Performance & Sizing Guidelines

• Match to pump output: 4.0 orifice size is intended for higher flow systems—verify GPM and PSI with nozzle sizing charts.
• Productivity advantage: Larger orifice equals more flow, enabling broader cleaning paths without sacrificing effective impact.
• Minimum operating pressure: Turbo nozzles typically require over 2,000 PSI to rotate correctly; below this, the jet may behave like a straight tip.
• System safety: Ensure hoses, guns, lances, and fittings are all rated for at least 8,700 PSI and 212°F.
• Orientation flexibility: Designed to maintain smooth rotation in any position, supporting complex or overhead cleaning tasks.

TPR600-04 Best Practices for Use & Maintenance

• Flush system before install: Purge debris with a standard fan nozzle to protect the rotating assembly.
• Use filtered water when possible: Reduces abrasive wear on the rotor, nozzle, and seat.
• Bring pressure up gradually: Smooth trigger operation reduces mechanical shock and extends nozzle life.
• Monitor spray shape & vibration: Changes in rotation speed or pattern indicate wear—inspect or replace as needed.
• Rinse chemicals after use: Flush clean water through the nozzle after chemical exposure.
• Store protected: Keep capped or in a case when not in service to prevent tip damage and contamination.
