RTD160-130 | 42.3 GPM 1900 PSI Pump 1000 RPM 35mm Industrial

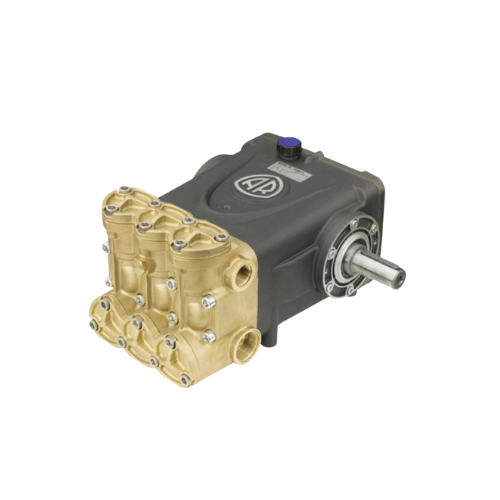

RTD160-130 Industrial Pump Overview

Performance Summary

• High-flow, slow-speed industrial triplex plunger pump engineered for continuous-duty operation in demanding industrial environments.
• Delivers an impressive 42.3 GPM at 1,900 PSI, providing the ideal balance of volume and pressure for large-scale cleaning, rinsing, and fluid-handling systems.
• Operates at a reduced 1,000 RPM to minimize heat generation, vibration, and internal wear, significantly extending service life.
• Designed for facilities where uptime is critical, including wastewater treatment plants, food processing operations, marine maintenance, and heavy industrial facilities.

Key Specifications

• Model: RTD160-130
• Flow Rate: 42.3 GPM
• Pressure Rating: 1,900 PSI
• Operating Speed: 1,000 RPM (slow-speed industrial duty)
• Shaft Type: 35mm solid keyed shaft
• Pump Type: Industrial triplex plunger pump
• Manifold: Forged brass for strength and corrosion resistance
• Plungers: Solid ceramic plungers for thermal stability and wear resistance
• Valves: Stainless-steel valves for corrosion control and long sealing life
• Bearings: Oversized industrial bearings for enhanced stability under continuous load
• Warranty: 5-year manufacturer commercial warranty

What’s Included RTD160-130

• Factory-filled break-in oil to support safe startup and immediate operation.
• Vented dipstick to regulate crankcase pressure during extended runtime.
• Oil sight glass for fast visual inspection of oil level and condition.
• Factory performance test report verifying flow and pressure output.
• Comprehensive 5-year commercial warranty for long-term ownership confidence.

How the RTD160-130 Works

• Triplex plunger system: Three ceramic plungers operate in synchronized cycles, producing smooth, pulse-reduced output that protects downstream hoses, valves, and spray devices.
• Slow-speed advantage: Operating at just 1,000 RPM dramatically reduces friction and heat, helping extend seal, valve, and bearing life compared to higher-speed pumps.
• Pressure and flow balance: The 1,900 PSI rating delivers effective industrial cleaning force while remaining gentle enough for sensitive surfaces and continuous rinse applications.
• Forged brass manifold: Designed to withstand constant pressure loading while resisting corrosion from detergents, chemicals, and wet environments.
• Stainless-steel valve system: Ensures reliable suction and discharge cycles with resistance to corrosion, scaling, and chemical attack.
• Industrial drivetrain: The 35mm solid keyed shaft provides stable torque transfer for belt-driven, gearbox-driven, or direct-coupled motor installations.
• Oversized bearing support: Maintains shaft alignment and minimizes vibration under heavy torque and continuous-duty conditions.

Benefits of the RTD160-130

• High-volume performance: 42.3 GPM supports flood rinsing, conveyor wash systems, spray bars, and multi-nozzle sanitation setups.
• Continuous-duty reliability: Engineered specifically for 24/7 operation in industrial facilities where downtime is not acceptable.
• Low-speed efficiency: Reduced RPM lowers heat buildup and mechanical stress, extending service intervals and lowering maintenance costs.
• Durable materials: Ceramic plungers, stainless valves, and a forged brass manifold resist abrasion, corrosion, and chemical exposure.
• System flexibility: Easily integrates into recirculation loops, bypass systems, filtration systems, and detergent-based cleaning circuits.
• Maintenance-friendly design: Sight glass and vented dipstick allow quick inspections without disassembly.
• Predictable operation: Smooth triplex output minimizes pressure spikes that can damage regulators, unloaders, and downstream components.

Typical Applications

• Wastewater Treatment Plants: Equipment cleaning, basin washdown, and recirculation systems.
• Food Production Facilities: Conveyor sanitation, packaging line washdown, and USDA-compliant cleaning programs.
• Marine and Shipyard Operations: Hull washdown, dock cleaning, and saltwater-resistant wash systems.
• Pulp and Paper Plants: Machinery cleaning and process washdown where high volume is essential.
• Industrial Equipment Cleaning: Concrete washdown, fabrication facilities, and manufacturing plants.
• Soft Wash & Detergent Systems: Low-pressure, high-volume cleaning where flow is more critical than cutting PSI.

Why Choose the RTD160-130

• Designed from the ground up for nonstop, high-volume industrial performance.
• Maintains stable, consistent output under long-term heavy workloads.
• Slow-speed 1,000 RPM operation ensures cooler running and reduced component fatigue.
• Industrial-grade construction delivers long service life in harsh environments.
• Backed by a 5-year manufacturer warranty for long-term confidence and value.
