RRV3G36-PKG | 3.0 GPM 3600 PSI Triplex Pump Package

RRV3G36-PKG by Annovi Reverberi — Complete RRV Series Triplex Pump Package | 3.0 GPM | 3,600 PSI | Bronze Connecting Rods | Forged Brass Manifold | Gymatic C2 Unloader | F24 SAE J609a 1″ Shaft | Direct Drive Gas Engine | 10,800 Cleaning Units

The RRV3G36-PKG by Annovi Reverberi is a complete, installation-ready RRV Series triplex ceramic plunger pump package engineered for direct drive gas engine-powered pressure washing systems requiring 3.0 GPM at 3,600 PSI in a compact, professional footprint. Rated at 3.0 GPM and 3,600 PSI, the RRV3G36-PKG delivers 10,800 cleaning units — combining 3,600 PSI professional cleaning pressure with a compact 3.0 GPM flow rate for contractor surface prep rigs, fleet cleaning systems, agricultural wash stations, and OEM builds where 3,600 PSI capability is required without the larger footprint of a 4.0 GPM package — through bronze connecting rods, solid ceramic plungers, a forged brass manifold, stainless steel valves, dual redundant packing, and an F24 SAE J609a direct-drive flange with 1″ shaft for direct coupling to compatible 11–13 HP gasoline engines. Every fitting, every bolt, the unloader, and the manual ship in one organized box. Mount it. Connect it. Wash. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the RRV3G36-PKG is the complete compact 3,600 PSI answer for operators who need professional pressure without a large-frame engine.

The RRV3G36-PKG is a factory-engineered, factory-assembled, factory-tested complete system — designed by Annovi Reverberi in Modena, Italy and distributed across North America by AR North America. Whether you are replacing a worn pump on a compact contractor rig, building a portable skid for surface preparation, specifying a pump for an OEM installation requiring 3,600 PSI in a reduced footprint, or outfitting a Predator-powered flatbed with compact high-pressure stations — the RRV3G36-PKG eliminates every compatibility question before the box is opened. Protected by a 5-year US limited warranty and built to be fully rebuilt rather than replaced, this is a decade-of-service investment.

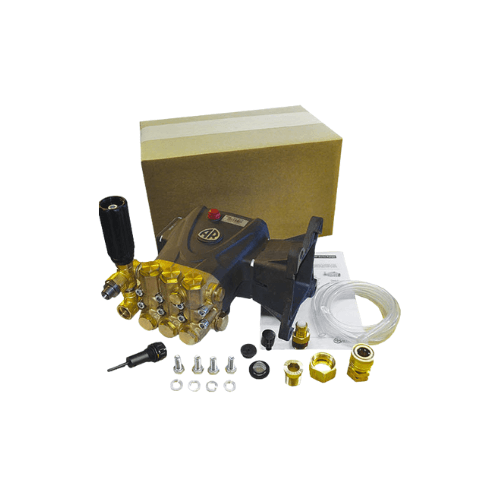

Everything in One Box — The RRV3G36-PKG Complete Package Contents

No Return Trips. No Guesswork. No Compatibility Risk. Same-Day Install.

Open the RRV3G36-PKG box and find everything required for a complete engine-to-pump installation:

• RRV3G36 triplex ceramic plunger pump — factory-tested and pre-lubricated with break-in oil. Bronze connecting rods, solid ceramic plungers, forged brass manifold, stainless steel valves, dual redundant packing, oversized crankshaft bearings — factory-installed and factory-verified. Ready to mount.
• Gymatic C2 adjustable unloader with banjo bolts and sealing O-rings — factory-matched and factory-installed for the 3.0 GPM / 3,600 PSI duty point. Smooth pressure regulation and safe bypass from first startup. The right unloader for this pump. Already on it.
• Fittings and mounting hardware — every fitting and fastener required for integration onto contractor skids, portable frames, flatbed rigs, and OEM installations. Organized in the box. Nothing to source separately.
• Chemical injector and suction hose — not included — the RRV3G36-PKG delivers straight 3,600 PSI high-pressure water output. When detergent capability is required, a downstream chemical injector and suction assembly are sourced separately and connected to the system outlet. Choose the draw rate and connection style that matches your cleaning program.
• Factory break-in oil — crankcase pre-filled. First-startup protection already handled.
• Oil sight glass and vented dipstick — at-a-glance oil monitoring from day one.
• Thermal relief valve — factory-installed protection against pump head overheating during extended bypass periods.
• Installation and service manual — complete setup, operating, service, and rebuild procedures with Annovi Reverberi part numbers for every component. AR North America parts availability confirmed across North America.

Decoding the RRV3G36-PKG

What This Annovi Reverberi Pump Package Designation Tells You

• RRV — Pump series: RRV Series commercial triplex plunger pump — Annovi Reverberi’s heavy-duty gas engine commercial platform
• 3G — Pump series identifier for this compact RRV configuration
• 36 — Maximum pressure: 3,600 PSI — 3.0 × 3,600 = 10,800 cleaning units
• PKG — Complete package: pump, Gymatic C2 unloader with banjo bolts, fittings, mounting hardware, thermal relief valve, manual, and factory break-in oil — everything required for a complete engine-to-pump installation in one organized box

RRV 3,600 PSI Family — 3.0 GPM vs 4.0 GPM

Both models share the RRV Series platform, 3,600 PSI pressure rating, bronze connecting rods, forged brass manifold, Gymatic C2 unloader, and F24 SAE J609a 1″ shaft. Flow rate and footprint are the key differences:

• RRV3G36-PKG (this model) — 3.0 GPM / 10,800 CU. Compact footprint for portable rigs, smaller OEM builds, and installations where engine size and frame weight are design constraints. Full 3,600 PSI capability in a lighter, more mobile package.
• RRV4G36-PKG — 4.0 GPM / 14,400 CU. Higher flow for fleet wash bays, industrial degreasing, and applications where coverage speed and volume output drive productivity on larger engine platforms.

Key Specifications

RRV3G36-PKG Technical Details at a Glance

• Flow Rate: 3.0 GPM (gallons per minute)
• Maximum Pressure: 3,600 PSI
• Cleaning Units: 10,800 (GPM × PSI)
• Operating Speed: 3,400 RPM — direct drive gas engine
• Engine Range: 11–13 HP gasoline engines with 1″ SAE J609a horizontal keyway shaft
• Pump Type: RRV Series triplex ceramic plunger pump — smooth, low-pulsation output in a compact footprint
• Flange: F24 — SAE J609a, 1″ hollow keyway shaft, direct drive gas engine compatible (Annovi Reverberi part AR41866)
• Connecting Rods: Bronze — standard specification at 3,600 PSI and above for continuous-duty commercial operation
• Manifold: Forged brass — corrosion and pressure fatigue resistance under sustained operation
• Plungers: Solid ceramic — abrasion, heat, and chemical exposure resistance
• Valves: Stainless steel inlet and discharge — fast seating under repetitive high-pressure cycles
• Packing: Dual redundant — two sets of high-quality seals per plunger; extended service intervals and reduced downtime
• Volumetric Efficiency: Approximately 93% — efficient energy use, reduced heat, reliable output under daily workloads
• Bearings: Oversized crankshaft — drivetrain stability and reduced wear at operating speed
• Lubrication: Vented oil-bath crankcase — constant lubrication and thermal stability
• Thermal Relief: Included — prevents overheating during bypass operation
• Unloader: Gymatic C2 — factory-matched, factory-installed, banjo bolts and O-rings included
• Chemical Injector: Not included — straight 3,600 PSI water output; downstream injector sourced separately
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

Engine Compatibility — What Drives the RRV3G36-PKG

F24 SAE J609a. 1″ Hollow Keyway Shaft. 11–13 HP Range. Predator-Compatible.

The RRV3G36-PKG‘s F24 SAE J609a direct-drive flange accepts a 1″ hollow keyway shaft rated for 11–13 HP gasoline engines. The 3.0 GPM / 3,600 PSI output is engineered for this engine range — high pressure without requiring the larger 13–16 HP platforms that the 4.0 GPM packages demand:

• Harbor Freight Predator 420cc / 13 HP — the top of the RRV3G36-PKG’s compatible range and the primary contractor pairing for portable high-pressure builds. Direct value-priced replacement for Honda GX390, Briggs & Stratton XR2100, and Kohler CH440. Compatible with the F24 1″ keyway shaft — delivers 3,600 PSI at 3.0 GPM efficiently without overworking the engine at this output level.
• Harbor Freight Predator 459cc / 15.8 HP Max Performance — up to 10% more torque than the standard 420cc. Direct replacement for Honda GX390, Briggs & Stratton XR2100, and Kohler CH440. Compatible with the RRV3G36-PKG F24 1″ keyway shaft — the preferred single-cylinder Predator pairing for sustained high-pressure continuous-duty operation.

3,600 PSI in a Compact 3.0 GPM Package — When Size and Weight Matter

Full Pressure. Smaller Footprint. Lighter Build. Right-Sized for Portable Rigs.

• 3,600 PSI without the 4.0 GPM footprint — the RRV3G36-PKG delivers the same 3,600 PSI professional cleaning pressure as the RRV4G36-PKG in a compact 3.0 GPM package suited to portable contractor rigs, OEM builds with frame weight constraints, and flatbed stations where engine size and pump mounting space are design limits
• Bronze rods at 3,600 PSI — same spec, compact size — the RRV3G36-PKG carries the same bronze connecting rod specification as the larger 4.0 GPM sibling. At 3,600 PSI, bronze rods are the required specification regardless of flow rate. The compact package delivers full commercial durability in a smaller frame.
• Contractor detail and surface prep — at 3.0 GPM and 3,600 PSI, the RRV3G36-PKG is a natural fit for surface preparation, graffiti removal, equipment cleaning, and contractor detail work where 3,600 PSI impact force is required and 4.0 GPM volume output exceeds the application need
• OEM compact system specification — OEM builders designing compact pressure washer systems requiring 3,600 PSI in a reduced footprint can specify the RRV3G36-PKG with confidence that every unit ships factory-tested, factory-assembled, and backed by AR North America’s national parts network

Built for the Predator-Powered Contractor Rig

Compact. Portable. 3,600 PSI Ready. Maximum Output Per Dollar.

• Build your own compact 3,600 PSI system — a Predator 420cc / 13 HP paired with the RRV3G36-PKG delivers 10,800 cleaning units of professional high-pressure output at a fraction of OEM-assembled pressure washer costs. The compact package fits portable contractor rigs, trailer corner stations, and flatbed multi-unit builds where every pound and every inch of mounting space counts.
• Standardize compact stations across a flatbed rig — contractors running multiple compact Predator/RRV3G36-PKG stations on a flatbed gain standardized parts and standardized service across every unit. The RRV Series shares rebuild components with the larger RRV4G36-PKG — one parts order covers both configurations on a mixed-output rig.
• AR North America national parts network — every wear component in the RRV3G36-PKG is stocked through AR North America’s domestic distribution. Rebuild kits, packing kits, valve assemblies, C2 unloader service parts — available nationally. The rig keeps running.

Typical Applications

Where the RRV3G36-PKG Delivers Best Results

• Contractor surface prep, graffiti removal, and equipment cleaning — the RRV3G36-PKG’s 3,600 PSI professional output and compact 3.0 GPM footprint make it the right-sized package for contractors who need maximum pressure in a portable, lightweight gas engine-driven rig
• Fleet vehicle detail bays and small fleet systems — buses, vans, and small-to-medium trucks where the RRV3G36-PKG’s 3,600 PSI force handles fleet vehicle contamination efficiently in compact gas engine wash systems
• Agricultural operations — tractor cleaning, irrigation equipment, barn sanitation, and livestock pens where the RRV3G36-PKG’s compact size and professional pressure support demanding agricultural cleaning programs on portable gas engine-powered rigs
• Light industrial wash stations and plant sanitation — tool washing, machinery maintenance, and plant cleaning where 10,800 cleaning unit output and bronze rod construction deliver sustained professional results in compact industrial cleaning installations
• Food and beverage floor and conveyor sanitation — when used with compliant detergents and appropriate sanitation procedures, the RRV3G36-PKG supports food-processing facility wash programs with chemical delivery sourced separately
• Municipal sidewalks, transit vehicles, and public works service bays — compact, standardized, rebuildable pump packages with national parts availability support scheduled municipal cleaning programs at a portable scale

5-Year US Warranty, National Parts Availability, and Wholesale Pricing

Built in Italy. Distributed Across North America. Compact 3,600 PSI Platform. Backed for Five Years.

The RRV3G36-PKG is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network administered by AR North America. Every internal wear component — ceramic plungers, bronze connecting rods, forged brass manifold seals and o-rings, stainless valve seats, Gymatic C2 unloader service parts, dual redundant packing kits, and oversized crankcase bearings — is stocked nationally through authorized AR North America distribution channels. Contractors, fleet operators, agricultural operations, light industrial facility managers, OEM equipment builders, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RRV3G36-PKG and the complete WSHPWR pump package lineup. WSHPWR maintains one of the most complete Annovi Reverberi inventories available through any US web store — with thousands of products in stock and a continually expanding catalog.

10,800 Cleaning Units. 3,600 PSI. 3.0 GPM. Bronze Rods. Compact Footprint. F24 SAE J609a. Gymatic C2. Everything in One Box.

Italian Engineering. Predator-Compatible 11–13 HP. Compact 3,600 PSI Package. 5-Year US Warranty.

Stop sourcing components one at a time. Stop guessing at unloader compatibility. The RRV3G36-PKG is the complete Annovi Reverberi compact pump package for contractors, detail wash operators, agricultural teams, light industrial facilities, OEM builders, and Predator-powered rig operators who need 3.0 GPM at 3,600 PSI in a portable, right-sized package with zero installation surprises. Bronze connecting rods. Forged brass manifold. Dual redundant packing. 93% volumetric efficiency. Gymatic C2 unloader. Thermal relief valve. Every fitting and every bolt. Factory-tested. Pre-lubricated. Five-year US warranty. One box. Same-day install.

Volume buyers and contractors building compact systems can reach the WSHPWR wholesale team directly at wholesale@wshpwr.com to discuss pricing across the complete Annovi Reverberi pump package lineup.
