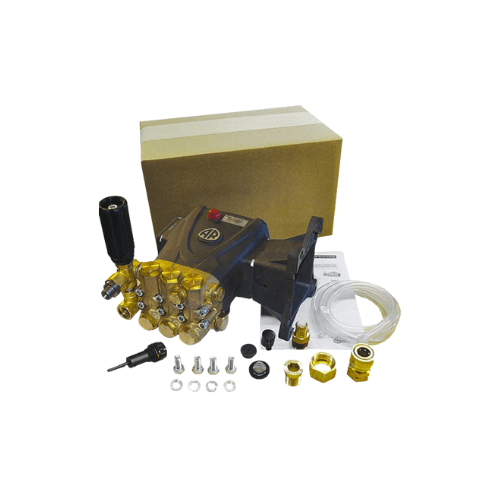

RRV4G40-PKG-P | 4.0 GPM 4000 PSI Triplex Pump Premium Pack

RRV4G40-PKG-P 4.0 GPM 4000 PSI Triplex Pump Premium Pack

• The Annovi Reverberi RRV4G40-PKG-P is a premium boxed triplex ceramic plunger pump
  package designed for professional contractors, OEM builders, and industrial operators who need a
  complete, ready-to-deploy system with upgraded fittings and accessories.
• Built in Italy by Annovi Reverberi and distributed throughout North America by
  AR North America (ARNA), this package delivers maximum durability, long service
  intervals, and professional-level performance.
• Supplied as a Premium Pack, it simplifies installation and reduces the need for
  aftermarket sourcing by including high-grade hardware and plumbing components right in the box.

Performance & Duty Class

• Flow & Pressure: delivers 4.0 GPM at 4000 PSI, providing the
  power required for heavy-duty surface preparation, equipment degreasing, coating removal, and
  large-scale fleet washing.
• Triplex crankshaft-driven architecture powers three solid ceramic plungers to
  generate low-pulsation flow that reduces vibration and protects downstream accessories.
• Consistent spray coverage translates into uniform cleaning results and faster job completion on
  large surfaces.

Pump Architecture & Efficiency

RRV4G40-PKG-P Wet-End Design

• Triplex ceramic plungers provide excellent abrasion resistance and smooth hydraulic
  performance in demanding environments.
• Each plunger features a dual redundant packing system, ensuring long seal life,
  reduced leakage, and fewer service interruptions.
• Optimized valve geometry and internal fluid dynamics deliver approximately
  93% volumetric efficiency, helping the pump run cooler and use input power more effectively.
• Higher efficiency reduces wasted energy and supports long-term reliability under continuous-duty cycles.

Manifold & Drivetrain

• Forged brass manifold offers superior strength and corrosion resistance under high
  pressure and temperature.
• Stainless-steel inlet and discharge valves provide crisp seating and long service life
  in harsh wash environments.
• Oversized crankshaft bearings stabilize the drivetrain, reducing vibration and
  extending mechanical life.
• A vented oil-bath crankcase ensures constant lubrication and thermal stability during
  extended operation.

Premium Pack Upgrades (PKG-P)

• Premium boxed configuration includes upgraded fittings and accessories for a
  ready-to-deploy solution.
• Supplied with high-grade mounting hardware to secure the pump to compatible frames
  or engines.
• Includes premium brass or stainless-steel couplers and additional fittings to
  simplify plumbing and reduce aftermarket sourcing.
• Chemical suction hose is included for detergent or sanitizer application.
• These upgrades save time for contractors and OEMs, helping ensure a fast, reliable build and
  consistent performance across installations.

Drive & Mounting Configuration for RRV4G40-PKG-P

• Features a 1″ hollow shaft engineered to mount directly to most gasoline
  engines in the 11–13 HP range.
• The kit’s standardized bolt pattern and pre-matched components support proper alignment and rapid
  integration in both replacement and new-build applications.
• Direct mounting simplifies frame layouts, reduces overall footprint, and maximizes power transfer
  from the engine to the pump.

Industry Use Cases & Applications

• Contractors: heavy surface cleaning, paint stripping, graffiti removal, equipment washdowns.
• Fleet operators: high-volume wash systems for trucks, buses, and trailers.
• Agriculture: barn sanitation, tractor and implement cleaning, irrigation equipment maintenance.
• Industrial facilities: conveyor cleaning, machinery degreasing, dedicated wash stations.
• Food & beverage processors: floor and conveyor sanitation using approved detergents
  and in line with facility compliance procedures.
• Municipalities: sidewalks, parking garages, transit fleets, and public works facilities.

Protection, Serviceability & Support

• Equipped with thermal relief to help prevent overheating when the pump is running
  in bypass mode.
• Easy access to plungers, packing kits, and valve assemblies simplifies routine
  maintenance and rebuilds.
• Wear components and rebuild kits are readily available through AR North America’s
  distribution and service network, keeping downtime to a minimum.
• Designed for long service intervals and straightforward shop or field service, making it suitable
  for busy fleets and industrial users.

Key Features & Applications (Quick Reference)

• Performance: 4.0 GPM @ 4000 PSI RRV4G40-PKG-P.
• Pump Type: Triplex ceramic plunger with forged brass manifold.
• Longevity: dual redundant packing, stainless valves, oversized bearings.
• Efficiency: approximately 93% volumetric efficiency.
• Fit: 1″ hollow shaft, mounts to 11–13 HP gasoline engines.
• Premium Pack: includes upgraded fittings, hardware, and accessories.
• Applications: contractor rigs, fleet systems, agriculture, food/beverage facilities,
  industrial plants, and municipal cleaning operations.

RRV4G40-PKG-P 4.0 GPM 4000 PSI Triplex Pump Premium Pack

• The RRV4G40-PKG-P is a high-output triplex ceramic plunger pump package rated at
  4.0 GPM and 4000 PSI, engineered for professional, continuous-duty use.
• With dual redundant packing, 93% volumetric efficiency, robust forged brass and stainless-steel
  construction, and a Premium Pack of upgraded fittings and accessories, it offers
  an ideal blend of efficiency, reliability, and installation readiness.
• It is a strong choice for contractors, OEMs, industrial users, and municipalities who demand
  professional performance and a complete, ready-to-install pumping solution.
