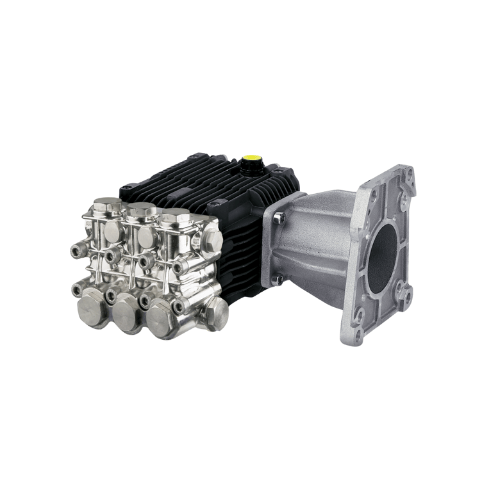

GRKV4G35HV-F35 4.0 GPM 4000 PSI Pump | 3400 RPM F35

Product Summary

• GRKV4G35HV-F35 triplex ceramic plunger pump engineered for high-output, high-pressure cleaning duty.
• Rated 4.0 GPM at 4,000 PSI at 3,400 RPM for demanding contractor, industrial, and fleet work.
• F35 tapered-shaft gasoline engine interface supports generator-driven and portable washer platforms using tapered shafts.
• Heavy-duty materials package includes forged brass manifold, ceramic plungers, stainless valves, and Viton sealing for chemical and heat exposure.
• Built for uptime-focused users who need stable performance, repeatable integration, and long service life.

Performance & Fit of GRKV4G35HV-F35

• Designed for fast cleaning production where both flow coverage and pressure impact are required.
• 3,400 RPM operating speed supports compact direct-drive builds in portable and generator-style frames.
• F35 tapered-shaft mounting is intended for engines commonly used in generator/washer combinations and portable packages.
• High-output duty point supports aggressive rinsing, surface prep, and equipment cleaning in professional workflows.
• Appropriate for single-gun systems where stability and repeatable output are priorities.

Key Specifications

• Model: GRKV4G35HV-F35.
• Flow: 4.0 GPM.
• Maximum Pressure: 4,000 PSI.
• Operating Speed: 3,400 RPM.
• Pump Type: Triplex ceramic plunger pump.
• Mount: F35 tapered-shaft gasoline engine interface.
• Manifold: Forged brass.
• Valves: Stainless steel.
• Plungers: Solid ceramic.
• Seals: Viton packings for chemical and temperature duty.
• Warranty: 5-year manufacturer coverage.

Included in the Box

• Fully assembled GRKV4G35HV-F35 pump configured for tapered-shaft gasoline engine mounting.
• Forged brass manifold installed and matched at the factory.
• Ceramic plungers and stainless-steel valve set installed.
• Viton sealing set for chemical-resistance and high-temperature service.
• Crankcase oil installed from factory for commissioning and initial run-in.
• Documentation package including operating guidance and warranty information.

Materials & Quality Control

• Forged brass manifold supports strength and corrosion resistance under high-pressure cycling.
• Solid ceramic plungers resist heat and wear to support long service intervals.
• Stainless-steel valves provide durability in wet environments and detergent-exposed operation.
• Viton seal package supports chemical handling and elevated operating temperatures in professional cleaning duty.
• Factory verification supports predictable performance and ready-to-run confidence in field installations.

Service Readiness

• Built to support routine maintenance with standard service intervals common to professional triplex platforms.
• Designed for predictable re-buildability in fleet and contractor environments where downtime must be minimized.
• Heavy-duty internal components support high-cycle work and repeated trigger operation.
• Stable construction supports long-term calibration and consistent performance over extended duty.
• Ideal for shops and OEM builders standardizing a high-output direct-drive platform.

Operating Guidance

• Confirm engine interface and tapered-shaft compatibility before installation on an F35 platform.
• Verify a steady, adequate water supply before start-up to protect the pump under high-output duty.
• Use clean, filtered inlet water whenever possible to protect valves, plungers, and seals.
• Commission with a gauge to verify stable regulated pressure under load and during trigger cycling.
• Follow standard oil service practices: initial break-in change, then periodic changes based on duty cycle and conditions.

Ownership & Maintenance

• Check oil level before operation and maintain correct fill level for consistent lubrication.
• Inspect inlet filtration, hose condition, and fittings regularly in high-pressure service.
• Replace worn seals and valves promptly to maintain pressure stability and reduce downtime.
• Flush with clean water after chemical use and store dry when equipment is not in service.
• Winterize as required for freezing environments to prevent water-end damage.

Typical Applications of GRKV4G35HV-F35

• Fleet and vehicle washing for trucks, trailers, buses, rental fleets, and utility equipment.
• Industrial cleaning of plant areas, production zones, heavy machinery, and maintenance bays.
• Commercial property cleaning including sidewalks, loading zones, docks, and hardscape surfaces.
• Agricultural equipment washdown for tractors, implements, barns, pens, and farm facilities.
• Surface preparation work where high pressure and strong flow improve productivity.
• Generator-based and portable pressure washer platforms requiring an F35 tapered-shaft engine mount.

Key Takeaways

• 4.0 GPM at 4,000 PSI performance package for high-production cleaning work.
• F35 tapered-shaft interface supports generator-driven and portable washer platforms using tapered-shaft gasoline engines.
• Brass, ceramic, stainless, and Viton materials package supports chemical exposure, heat handling, and long service life.
• Professional triplex architecture supports stable output, re-buildability, and daily-duty reliability.
