RRV3G36D-F24 Commercial Washer Pump | 3.0 GPM 3600 PSI

Annovi Reverberi RRV3G36D-F24 Commercial Pressure Washer Pump | 3.6 GPM 3400 PSI 1-Inch Key Shaft

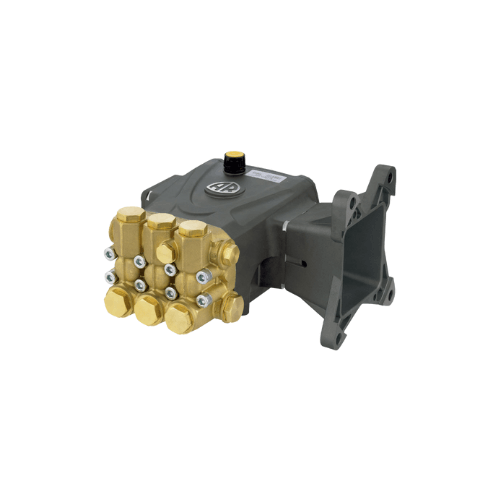

The Annovi Reverberi RRV3G36D-F24 is a commercial-grade triplex
plunger pump delivering 3.6 GPM at 3,400 PSI — engineered for
direct coupling with 1-inch key shaft gas engines including Honda,
Kohler, Vanguard, and PowerEase platforms for fleet washing, contractor rigs,
facility maintenance, agricultural equipment cleaning, and OEM skid builds. The
RRV3G36D-F24 combines a forged brass manifold head, solid ceramic
plungers, stainless steel valves, and a die-cast aluminum crankcase into a
standard bolt-pattern package built for straightforward OEM replacement and
new-build integration at commercial professional pressure washer output levels.

Whether replacing a worn OEM pump on an existing gas-engine pressure washer
frame or building a new contractor rig from scratch, the RRV3G36D-F24
delivers consistent 3,400 PSI output and reliable 3.6 GPM flow backed by Annovi
Reverberi’s manufacturing quality and decades of commercial pump engineering —
arriving pre-filled with crankcase oil and ready for immediate installation on
compatible 1-inch key shaft engine configurations.

RRV3G36D-F24 Key Specifications

Performance, Drive & Construction

• Model: Annovi Reverberi RRV3G36D-F24
• Flow Rate: 3.6 GPM — commercial-grade output for
  fleet washing, contractor cleaning, and facility
  maintenance applications
• Pressure Rating: 3,400 PSI — effective cutting
  pressure for concrete, equipment surfaces, building exteriors,
  and heavy commercial cleaning tasks
• Drive Type: Direct-coupled — engineered for
  1-inch key shaft gas engines; fits Honda, Kohler, Vanguard,
  and PowerEase engine platforms
• Pump Design: Triplex plunger — three-cylinder
  balanced design for consistent flow with minimal
  pulsation
• Head Material: Forged brass — superior pressure
  resistance and corrosion performance versus cast brass
  alternatives
• Plungers: Solid ceramic — superior wear resistance
  and cooler operation for extended seal life in commercial
  duty cycles
• Seals: Premium high-temperature seals engineered
  for commercial-duty pressure and heat cycling
• Valves: Stainless steel — consistent suction and
  discharge seating for stable pressure output across
  variable demand
• Crankcase: Die-cast aluminum with oil sight glass
  and vented dipstick for fast daily level checks and
  crankcase pressure control
• Mounting: Standard bolt pattern for straightforward
  OEM replacement on compatible engine-pump
  mounting frames

What’s Included with the RRV3G36D-F24

Ready to Install on Compatible 1-Inch Key Shaft Engine Platforms

• Pre-filled crankcase oil — factory-installed for
  immediate installation without sourcing initial
  oil fill separately
• Vented dipstick — crankcase pressure control and
  secondary oil level verification for complete
  daily service checks
• Oil sight glass — quick visual level inspection
  before each operating session without tools
  or disassembly

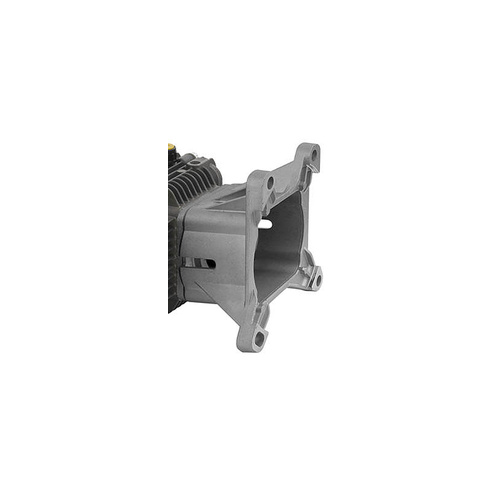

• Mounting hardware compatible with 1-inch key shaft
  engine flanges for direct installation on Honda, Kohler, Vanguard,
  and PowerEase engine platforms
• Owner’s manual and schematic diagram — installation
  reference, maintenance guidance, and parts identification
  for the life of the pump
• Manufacturer’s warranty documentation and technical
  support contact information

How the RRV3G36D-F24 Works

Triplex Plunger Design — Consistent Pressure With Minimal Pulsation

The RRV3G36D-F24 uses a positive displacement triplex plunger
design where three solid ceramic plungers move in precise synchronized
reciprocation — driven by a crankshaft that converts gas engine rotation into
the back-and-forth plunger motion required for high-pressure water displacement.
On the retraction stroke, inlet valves open to draw water into each cylinder.
On the forward stroke, inlet valves close and outlet valves open to discharge
pressurized water through the system at rated 3,400 PSI output.

Because three cylinders operate in an overlapping synchronized sequence rather
than in unison, the RRV3G36D-F24’s output is smooth and consistent with
substantially reduced pulsation compared to single or dual-piston pump designs
at equivalent pressure — a meaningful advantage for operator comfort at the
lance and for the longevity of downstream hose assemblies and accessories that
experience fatigue from pressure cycling.

The forged brass manifold head handles the intense mechanical
and thermal loads of 3,400 PSI commercial duty cycles — forged construction
provides superior grain structure and pressure resistance compared to cast
brass alternatives at this operating pressure class. The solid ceramic
plungers run cooler than metal alternatives, resist abrasion from
minerals and particulates in supply water, and minimize heat transfer into the
packing stack — the combination that makes ceramic the standard plunger material
for commercial-grade pressure washer pumps.

RRV3G36D-F24 Key Benefits

Why This Pump Earns Its Place in Commercial Professional Systems

• Commercial-grade 3.6 GPM at 3,400 PSI output:
  the right performance specification for fleet washing, contractor
  surface preparation, facility maintenance, and OEM skid builds
  where professional cleaning results are required
  consistently
• Direct-couple fit for major 1-inch key shaft engines:
  confirmed compatibility with Honda, Kohler, Vanguard, and PowerEase
  engine platforms — the most common gas engine configurations in
  professional contractor and commercial pressure
  washer systems
• Standard bolt pattern for fast OEM replacement:
  the RRV3G36D-F24’s mounting pattern fits the most common engine-to-pump
  frame configurations — replacement installation without custom hardware,
  drilling, or adapter plates for most compatible systems
• Forged brass head versus cast alternatives: forged
  brass provides measurably superior pressure resistance and structural
  integrity at 3,400 PSI commercial duty compared to the cast brass
  manifolds found on many competing replacement pumps
  at this price point
• Ceramic plungers extend seal and packing life:
  ceramic’s hardness, low thermal conductivity, and abrasion resistance
  directly extend water-seal service intervals versus steel or chrome
  plunger designs under equivalent commercial
  operating conditions
• Triplex smoothness protects downstream components:
  balanced three-cylinder output reduces pulsation and hydraulic shock —
  protecting hose assemblies, gun and lance connections, and surface
  cleaner tools from the fatigue that high-pulsation pumps
  produce over time
• Maintenance-friendly die-cast aluminum crankcase:
  oil sight glass and vented dipstick make daily oil checks a
  30-second task on working contractor and commercial
  equipment
• Cost-effective alternative to OEM replacement pricing:
  commercial-grade Annovi Reverberi construction at a lower cost than
  many branded OEM replacement pumps for equivalent engine
  platform configurations

RRV3G36D-F24 Typical Applications

Where 3.6 GPM at 3,400 PSI on a 1-Inch Key Shaft Delivers Results

• Fleet washing: trucks, buses, trailers, and heavy
  equipment where consistent 3,400 PSI output across long daily wash
  sessions requires the durability and heat management that ceramic
  plungers and forged brass provide
• Contractor cleaning jobs: deck restoration, concrete
  cleaning, surface preparation, and building exterior washing where
  3.6 GPM carry-off combined with 3,400 PSI mechanical action delivers
  efficient single-pass professional results
• Commercial facilities: garages, schools, warehouses,
  retail centers, and industrial plants where a reliable direct-drive
  gas-engine pump delivers consistent performance across
  varied daily cleaning demands
• Agricultural operations: equipment cleaning, barn
  washdown, and machinery maintenance where gas engine portability
  makes the RRV3G36D-F24 practical for remote field
  locations without electrical supply
• OEM skid and trailer rig builds: system builders
  requiring a proven 3,400 PSI direct-drive pump with standard bolt
  pattern, confirmed major engine compatibility, and
  commercial-grade AR construction
• Pump replacement on compatible gas engine frames:
  the RRV3G36D-F24’s standard mounting pattern and 1-inch key shaft
  compatibility make it a practical field replacement for worn OEM
  pumps on major engine platform pressure
  washer frames

RRV3G36D-F24 Installation & Maintenance

Best Practices for Long Service Life and Reliable Output

• Verify 1-inch key shaft compatibility and alignment:
  confirm the engine shaft is a true 1-inch keyed configuration and
  check for proper axial alignment before final mounting —
  misalignment at installation is the most common cause of
  premature bearing failure
• Operate at recommended RPM: run the engine at the
  correct speed to achieve rated 3.6 GPM and 3,400 PSI output —
  overspeeding reduces service life; underspeed reduces pressure
  and cleaning performance
• Use properly sized inlet plumbing and filtration:
  size the inlet hose for adequate flow to prevent cavitation; install
  an inlet strainer to protect ceramic plungers and stainless valves
  from particulate contamination
• Pair with a correctly rated unloader valve: size
  the unloader valve for 3,400 PSI and 3.6 GPM flow — an undersized
  or incorrectly adjusted unloader creates pressure spikes that
  damage pump packings and reduce component life
• Never run the pump dry: always confirm water supply
  is connected and flowing before starting the engine — brief dry
  operation damages ceramic plunger packings and
  voids warranty coverage
• Check oil before each use: use the sight glass
  for a quick visual check and confirm with the dipstick before
  starting — adequate oil is the foundation of
  crankcase bearing longevity
• First oil change at approximately 50 hours: then
  follow duty-cycle-based service intervals — change sooner in heavy
  commercial use with long daily runtimes
• Flush after cleaning chemicals: run clean water
  through the RRV3G36D-F24 after every detergent application to
  protect manifold passages and valve seats from
  chemical residue buildup
• Winterize before storage: drain completely or use
  pump-safe antifreeze — freeze damage to the forged brass manifold
  is not covered under warranty

Why Choose the Annovi Reverberi RRV3G36D-F24

Commercial-Grade Gas Engine Pump Backed by AR Engineering

• The right spec for professional gas-engine systems:
  3.6 GPM at 3,400 PSI covers the majority of contractor, fleet,
  and facility maintenance cleaning demands without oversizing the
  system or creating unnecessary containment and
  drainage challenges
• Confirmed fit for the most common professional engines:
  Honda, Kohler, Vanguard, and PowerEase 1-inch key shaft compatibility
  confirmed — the widest engine platform coverage available in a
  single commercial replacement pump specification
• Forged brass and ceramic construction at commercial price:
  forged manifold and ceramic plungers are the material standards for
  long-life commercial pumps — the RRV3G36D-F24 delivers this
  construction at a lower cost than most branded
  OEM replacement alternatives
• Triplex smoothness is a working advantage: reduced
  pulsation is not just a specification number — it means less operator
  fatigue at the lance, less hose assembly wear, and more consistent
  surface cleaning results per pass compared to
  wobble-plate or axial alternatives
• Annovi Reverberi quality since 1958: over 60 years
  of commercial pump engineering trusted by OEMs, contractors, and
  industrial operators globally — every RRV3G36D-F24 built to
  consistent dimensional accuracy and factory-tested
  performance standards
• Backed by WSHPWR: expert application support, engine
  compatibility guidance, and full parts availability for the
  RRV3G36D-F24 and the complete Annovi Reverberi
  RRV pump family

The Annovi Reverberi RRV3G36D-F24 delivers 3.6 GPM at
3,400 PSI through a direct-coupled 1-inch key shaft triplex plunger
design built with forged brass, ceramic plungers, and stainless steel valves
— a commercial-grade gas engine pressure washer pump engineered for fleet washing,
contractor rigs, facility maintenance, and OEM builds where consistent professional
output, major engine platform compatibility, and Annovi Reverberi durability are all
required. Contact WSHPWR for current pricing, availability, engine compatibility
confirmation, and application support.
