RKSS11.11N | Stainless Triplex Pump, 3 GPM 3000 PSI, 24mm Shaft

RKSS11.11N Stainless Triplex Pump | 2.9 GPM 3000 PSI AISI 316L Bronze Viton

RKSS11.11N — the Annovi Reverberi AISI 316L stainless steel
triplex plunger pump delivering 2.9 GPM at 3,000 PSI at a
controlled 1,450 RPM — engineered for USDA-compliant food and
dairy washdown, chemical wash stations, meat packing and beverage production
sanitation, marine and coastal facility cleaning, restaurant hood and duct
contractor rigs, and any continuous-duty industrial environment where chlorides,
caustic cleaners, disinfectants, and corrosive vapors demand AISI 316L stainless
construction over brass. The RKSS11.11N is built on a
24 mm solid keyed shaft compatible with belt-drive, gearbox,
and engine-coupled systems — combining an AISI 316L stainless pump head,
bronze connecting rods, ceramic plungers, stainless steel
valves, and Viton o-rings into a 22-lb continuous-duty
stainless pump backed by a 5-year commercial warranty with
U.S.-based service support.

The RKSS11.11N is the lowest-flow model in the RK-SS 1450 RPM
solid shaft lineup — at 2.9 GPM and 3,000 PSI it is tuned for single-gun
washdown systems, compact wash carts, and targeted cleaning stations in food
processing, chemical, and marine environments where steady controlled output
and chemical resistance matter more than maximum volume. Bronze connecting rods
and Viton o-rings confirm the RKSS11.11N’s specification for demanding chemical
exposure environments — bronze delivers superior fatigue strength and corrosion
resistance in the oil-bath crankcase at 1,450 RPM sustained industrial loads,
and Viton provides seal compatibility with the caustic cleaning agents,
disinfectants, and hot-water cycles of food processing and
sanitation applications.

RKSS11.11N Key Specifications

Performance, Drive & AISI 316L Stainless Construction — Confirmed AR Catalog

• Model: Annovi Reverberi RKSS11.11N
• Flow Rate: 2.9 GPM (11 L/min) — controlled
  single-gun output for targeted food processing washdown,
  chemical rinse stations, and marine
  facility cleaning
• Maximum Pressure: 3,000 PSI (200 Bar) —
  effective cutting force on fats, proteins, oils, concrete
  pads, and stainless equipment in sanitation-critical
  industrial environments
• EBHP: 6.0 — effective brake horsepower
  at rated duty point
• Operating Speed: 1,450 RPM — slow-speed
  design for reduced internal temperature, lower mechanical
  stress, and extended continuous-duty
  service life
• Bore: 22 mm | Stroke: 10.8 mm |
  CSID Stamp: 5

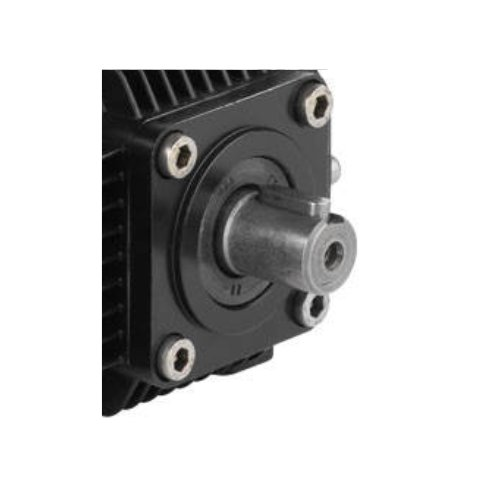

• Shaft: 24 mm solid keyed — N version,
  compatible with belt-drive, gearbox, and engine-coupled
  system configurations
• Weight: 22 lbs
• Pump Type: Triplex plunger — three-cylinder
  balanced design for low-pulsation output at rated
  3,000 PSI

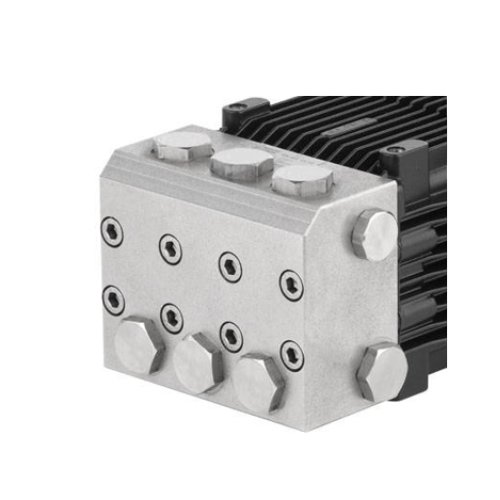

• Pump Head: AISI 316L stainless steel —
  superior resistance to chlorides, caustic cleaners,
  disinfectants, and corrosive vapors in food, chemical,
  and marine environments
• Connecting Rods: Bronze — superior fatigue
  strength and corrosion resistance at 1,450 RPM sustained
  industrial loads in the oil-bath
  crankcase environment
• Plungers: Ceramic — dimensionally stable
  hard surface limiting packing wear under continuous
  stroking at 3,000 PSI
• Valves: Stainless steel — clean seating
  and consistent flow control under chemical and thermal
  cycling in frequent washdown service
• Seals: Viton o-rings — durable compatibility
  with caustic cleaning agents, disinfectants, hot-water
  cycles, and aggressive detergents in food processing
  and sanitation applications
• Inlet: 1/2-inch female |
  Discharge: 3/8-inch female
• Max Water Temperature: 140°F
• Oil Capacity: 15 oz
• Oil Management: Integrated oil sight glass
  and vented dipstick for daily level checks and
  crankcase pressure control

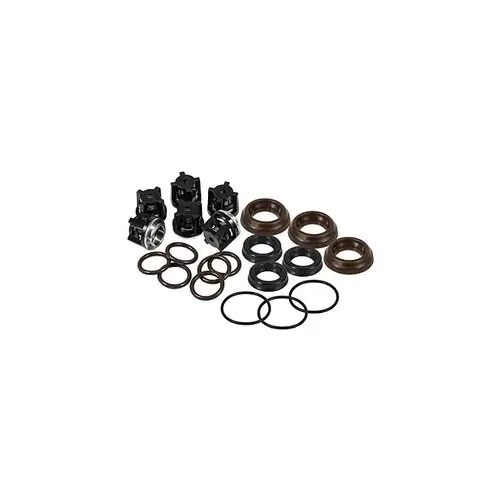

• Rebuild Kits: Seal and valve kits available
  — wet end rebuildable at planned intervals rather than
  requiring full pump replacement
• Warranty: 5-year commercial warranty with
  U.S.-based nationwide service support

What’s Included with the RKSS11.11N

Factory-Ready for Stainless Industrial System Installation

• Factory pre-filled break-in oil (15 oz) —
  simplifies commissioning and protects internal components
  during initial RKSS11.11N startup without
  sourcing oil separately
• Integrated oil sight glass — quick visual
  confirmation of oil level and condition during daily
  or pre-shift inspections in busy
  production environments
• Vented dipstick — crankcase pressure control
  and convenient access for oil sampling and changes
  supporting preventive maintenance schedules
• Exploded diagrams and parts lists — accurate
  rebuild kit selection and efficient bench or in-place
  service by in-house maintenance or
  service providers
• 5-year commercial warranty documentation —
  with U.S.-based nationwide service
  center coverage

Why AISI 316L, Bronze Rods, and Viton Define the RKSS11.11N

Three Specifications Chosen for the Chemistry of Industrial Sanitation

The RKSS11.11N’s three material specifications are not
independent upgrades — they work together to address the complete set of
corrosion, fatigue, and seal compatibility challenges in the industrial
chemical washdown environments this pump is built for.

AISI 316L stainless pump head addresses manifold corrosion —
chloride pitting, dezincification, and caustic attack that cause premature
failure in brass-head pumps in food processing, dairy, marine, and chemical
environments. AISI 316L’s molybdenum content provides the additional chloride
resistance that Grade 304 stainless lacks in high-chloride cleaning
environments.

Bronze connecting rods address drivetrain fatigue at sustained
chemical washdown duty cycles — at 1,450 RPM and 3,000 PSI, the connecting
rod experiences combined tensile, compressive, and bending loads continuously
across industrial operating shifts. Bronze’s fatigue strength and corrosion
resistance in the oil-bath crankcase environment outperforms aluminum rod
alternatives across the multi-year service life the RKSS11.11N is specified for
in food processing and sanitation program applications.

Viton o-rings address seal chemical compatibility — caustic
soda, chlorinated disinfectants, concentrated detergents, and hot-water cycles
exceed the compatibility range of standard EPDM and Buna-N seals. Viton’s
broad chemical resistance covers the cleaning agent concentrations and
temperatures encountered in USDA-compliant food processing, meat packing,
dairy, and chemical rinse applications.

RKSS11.11N Performance and Operating Envelope

Controlled 2.9 GPM at 3,000 PSI for Targeted Sanitation Applications

• 2.9 GPM for single-gun targeted cleaning:
  thorough rinsing of equipment surfaces, small tanks,
  process lines, and facility floor areas without
  overwhelming drains or generating overspray around
  instrumentation and sensitive
  processing surfaces
• 3,000 PSI for effective cutting on industrial
  soils: removes fats, proteins, oils, and residues
  from concrete pads, stainless equipment, and painted
  structures when used with compatible cleaning agents
  and appropriate nozzle selection
• Low-pulsation triplex output: balanced
  three-cylinder cycle improves operator control and
  reduces fatigue at the gun or lance across extended
  sanitation shifts in food processing
  and industrial facilities
• 1,450 RPM slow-speed advantage: lower
  mechanical stress, reduced internal temperature, and
  lower noise versus 3,400 RPM direct-drive alternatives
  at equivalent output — critical in food processing
  environments where noise and heat are
  operational concerns
• Tunable output for diverse sanitation tasks:
  with correct nozzle selection and unloader setting,
  the RKSS11.11N output can be tuned from light rinsing
  to aggressive degreasing within the 3,000 PSI
  maximum pressure rating

RKSS11.11N Drive and System Integration

24mm Solid Shaft for Belt-Drive, Gearbox, and Engine-Coupled Installations

• Belt-drive, gearbox, and flexible coupler
  compatibility: the RKSS11.11N’s 24 mm keyed
  shaft allows precise speed matching to available motors
  and engines across fixed central systems, OEM engineered
  skids, and contractor portable
  stainless rigs
• Stainless skid and washdown-zone mounting:
  mounting footprint supports installation on stainless
  skids, epoxy-coated bases, and mobile frames in
  washdown and outdoor corrosive
  environments
• Fixed central and multi-zone service
  configurations: the RKSS11.11N integrates into
  both fixed central washdown systems and portable rigs
  serving multiple work zones, dock positions, or
  production line areas
• Inlet sizing for 2.9 GPM without cavitation:
  size inlet plumbing, strainers, and valves to support
  2.9 GPM with minimal pressure drop — cavitation at
  this duty point damages ceramic plungers and Viton
  seals and voids warranty coverage
• All downstream components rated for 3,000 PSI:
  unloader, safety relief valve, hose assemblies, and spray
  guns must be rated at or above 3,000 PSI and chemically
  compatible with all cleaning agents
  in the system

RKSS11.11N Typical Applications

Where AISI 316L, Bronze, and Viton at 2.9 GPM and 3,000 PSI Are the Right Specification

• USDA-compliant food and dairy washdown:
  stainless construction and controlled 3,000 PSI output
  for sanitation-critical areas — OEM machine builders
  should follow facility certification requirements
  for completed system configurations
• Chemical wash stations and sanitation rigs:
  processing plants and laboratories handling caustic
  cleaners and disinfectants where the RKSS11.11N’s
  AISI 316L manifold and Viton seals handle the
  chemistry that degrades
  brass manifold pumps
• Meat packing, dairy, and beverage production:
  high-pH cleaning protocols and frequent hot-water
  washdowns in protein processing environments where
  bronze rods, Viton seals, and AISI 316L construction
  provide the service life that
  standard pumps cannot
• Marine and coastal cleaning: docks, vessels,
  equipment, and structures exposed to salt spray and
  corrosive atmospheres where AISI 316L’s chloride
  resistance is the required
  manifold specification
• Restaurant hood and duct cleaning contractors:
  high-temperature degreaser chemistry in contractor
  cleaning rigs where the RKSS11.11N’s Viton seals
  and stainless construction handle degreaser exposure
  across seasonal
  operating schedules
• Environmental services and chemical remediation:
  corrosion-resistant pumping hardware for chemical
  rinse systems and remediation equipment where
  AISI 316L stainless provides the manifold durability
  that environmental chemistry demands

RKSS11.11N Maintenance and Rebuild Planning

Preventive Service for Long-Term AISI 316L Stainless Platform Performance

• Daily pre-shift inspections: verify oil
  level and clarity via sight glass, check for leaks at
  all connections, confirm drive alignment, and monitor
  operating pressure under load before each
  production shift
• Planned seal and valve replacement intervals:
  schedule rebuild around run hours, temperature exposure,
  and chemical loading — planned maintenance minimizes
  unplanned downtime in critical food processing
  and sanitation areas
• Rebuild rather than replace: seal and valve
  kits available for the RKSS11.11N — the hydraulic
  section is rebuildable at planned intervals, extending
  the useful life of the AISI 316L pump head and
  bronze crankcase assembly investment
• Never run dry: always confirm water supply
  is flowing before starting — dry operation at 3,000 PSI
  damages ceramic plunger packings and Viton seals
  immediately and voids
  warranty coverage
• Flush between chemical applications: run
  clean water through the RKSS11.11N between caustic and
  acid wash cycles — mixed chemistry residue in manifold
  passages accelerates degradation
  even on AISI 316L construction
• First oil change at approximately 50 hours:
  then follow Annovi Reverberi’s duty-cycle preventive
  maintenance schedule with intervals appropriate to
  chemical exposure intensity in the
  installed environment
• Winterize with compatible antifreeze: in
  food processing and dairy environments confirm
  antifreeze compatibility with facility food safety
  protocols — drain completely where chemical
  antifreeze is not acceptable

Why Choose the Annovi Reverberi RKSS11.11N

AISI 316L, Bronze Rods, and Viton — The Complete Chemical Industrial Specification

• Three-material stainless specification for demanding
  chemistry: AISI 316L manifold for corrosion
  resistance, bronze rods for drivetrain fatigue strength,
  and Viton seals for caustic and disinfectant
  compatibility — the complete specification
  for food processing, dairy, marine,
  and chemical applications
• AISI 316L above Grade 304 and brass in chloride
  environments: molybdenum content provides the
  additional chloride pitting resistance that makes 316L
  the correct stainless specification for food processing
  and marine washdown
  chemistry
• Bronze rods for sustained sanitation duty
  cycles: superior fatigue strength and oil-bath
  corrosion resistance at 1,450 RPM across multi-year
  food processing and industrial cleaning service life —
  the drivetrain specification that matches the
  RKSS11.11N’s premium stainless
  wet-end construction
• Rebuildable wet end for long-term asset
  value: seal and valve kits allow planned rebuild
  rather than full pump replacement — the RKSS11.11N
  AISI 316L pump head and crankcase are designed as
  long-term facility
  cleaning assets
• Lowest-flow RK-SS 1450 RPM model for single-gun
  systems: 2.9 GPM at 3,000 PSI is the controlled
  duty point for single-operator food plant, chemical
  facility, and marine wash stations where targeted
  output and drain management matter
• Annovi Reverberi AISI 316L engineering since
  1958: over 60 years of industrial pump
  manufacturing specifically including AISI 316L stainless
  and Viton configurations for food, chemical,
  and marine applications
• 5-year warranty on AISI 316L bronze Viton
  construction: exceptional coverage for a premium
  industrial stainless pump — backed by U.S.-based
  nationwide service centers
• Backed by WSHPWR: expert stainless pump
  application support, chemical compatibility guidance,
  rebuild kit specification, and full parts availability
  for the RKSS11.11N and the complete Annovi Reverberi
  RK stainless pump family

The RKSS11.11N delivers 2.9 GPM at 3,000 PSI
at a controlled 1,450 RPM through a 24 mm solid keyed
shaft built on an AISI 316L stainless pump head with
bronze connecting rods and Viton o-rings — the lowest-flow
RK-SS 1450 RPM stainless triplex pump engineered for food processing sanitation,
dairy and meat packing facilities, chemical wash stations, marine cleaning, and
contractor sanitation rigs where AISI 316L corrosion resistance, bronze drivetrain
durability, Viton chemical seal compatibility, and 5-year commercial warranty
confidence are all required. Contact WSHPWR for current pricing, availability,
rebuild kit specification, and application support.
