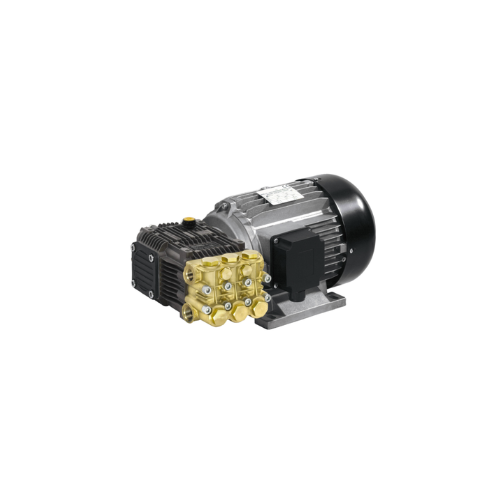

RKA35G40H/ET — 3.5 GPM 4000 PSI Pump & Motor Assembly

Overview

• Factory-assembled pump and motor package engineered for heavy-duty, high-pressure cleaning systems.
• Delivers 3.5 GPM at 4,000 PSI for industrial, commercial, and professional wash applications.
• Features an RKA-series triplex plunger pump precisely matched to a high-efficiency electric motor.
• Plug-and-play design eliminates separate alignment, coupling selection, and mounting calibration.

Key Specifications

• Flow Rate: 3.5 GPM.
• Maximum Pressure: 4,000 PSI.
• Pump Type: RKA-series triplex plunger pump.
• Drive: Direct-coupled pump and motor assembly.
• Manifold: Precision-machined brass manifold for strength and corrosion resistance.
• Crankcase: Die-cast aluminum with oil-bath lubrication for smooth operation.

What’s Included with RKA35G40H/ET 3.5 GPM 4000 PSI Pump Motor Assembly

• Factory-aligned pump and motor mounted together as a single, ready-to-install unit.
• Integrated coupling for smooth, efficient power transfer from motor to pump.

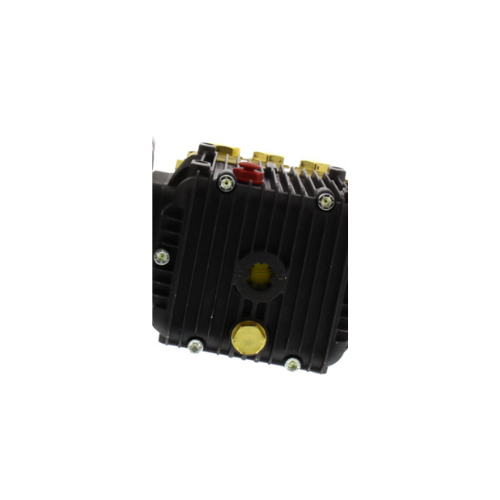

• Oil sight glass and service ports for straightforward inspection and maintenance.
• Each assembly is pre-tested and performance-verified prior to shipment.

Key Features & Benefits

• Minimal setup time—the complete assembly arrives ready to bolt into place and wire.
• Triplex design with ceramic plungers provides low pulsation, smooth output, and long service life.
• Corrosion-resistant brass manifold and advanced elastomer seals handle demanding detergents and environments.
• Heavy-duty crankshaft and tapered roller bearings support continuous-duty operation.

Typical Applications

• Fixed industrial wash systems and factory sanitation lines.
• Maintenance bays and fleet wash facilities for trucks, buses, and equipment.
• Mobile service equipment and heavy machinery cleaning rigs.
• High-pressure hot- or cold-water cleaning stations in commercial and industrial sites.
