XWA9G15N/ET-S | 9 GPM 1500 PSI Pump Motor Combo 1750 RPM Duty

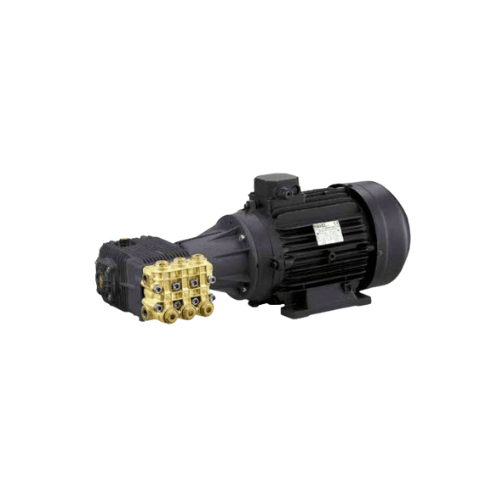

XWA9G15N/ET-S Pump & Motor System

System Role

• Factory-assembled pump-and-motor washdown system delivering 9.0 GPM at 1,500 PSI for professional sanitation and industrial cleaning.
• Turnkey base-mounted design reduces alignment issues and installation labor versus sourcing components separately.
• Built for chemical-resistant and hygienic environments with stainless steel internals, ceramic plungers, and Viton seals.
• 24mm left-hand shaft configuration supports mirrored layouts, reverse-drive installations, and tight-equipment packaging.

Key Specifications

Ratings & Build

• Model: XWA9G15N/ET-S.
• Flow Rate: 9.0 GPM.
• Pressure Rating: 1,500 PSI.
• Pump Design: Triplex plunger pump with stainless steel valves.
• Plungers: Ceramic for heat and wear resistance.
• Seals: Viton for chemical compatibility.
• Shaft: 24mm left-hand keyed shaft.
• Drive: Factory-installed electric motor.
• Mounting: Heavy-duty base plate included.
• Warranty: 5-year commercial warranty.

What’s Included XWA9G15N/ET-S  9 GPM 1500 PSI Pump Motor Combo

Factory-Assembled Package

• Factory-assembled pump and motor system mounted on a base.
• Pre-wired electric motor for simplified electrical hookup.
• Pre-filled break-in oil for immediate startup.
• Oil sight glass for fast lubrication checks.
• Vented dipstick for crankcase ventilation and servicing.
• Owner’s manual with wiring diagram and maintenance instructions.
• Factory performance test certification.
• 5-year commercial warranty with U.S.-based support.

How the Pump/Motor Combo Works

Triplex Output With Turnkey Drive

• Triplex ceramic plungers compress incoming water to deliver steady 9.0 GPM at 1,500 PSI with reduced pulsation.
• Stainless steel valves support dependable sealing and consistent flow control in washdown cycles.
• Factory-mounted motor and base help maintain proper coupling alignment and reduce vibration-related wear.
• Left-hand shaft orientation supports reverse-mount and mirrored equipment designs where standard rotation layouts will not fit.

Benefits

Why This System Fits Washdown Operations

• Complete system delivery reduces sourcing and assembly time for new builds and replacements.
• Balanced output provides high coverage flow with controlled pressure for washdown efficiency.
• Hygienic and chemical-resistant materials support sanitation programs and aggressive detergents.
• Service-friendly oil sight glass and dipstick simplify daily checks and routine maintenance.
• Factory testing and warranty support reduce risk in continuous-use environments.

Typical Applications

Industries & Use Cases

• Commercial kitchens and food-service washdown.
• USDA-compliant meat, poultry, and dairy plants.
• Bottling and beverage processing facilities.
• Theme parks and entertainment sanitation systems.
• Pharmaceutical processing and hygienic cleaning zones.
• Vehicle rental and fleet wash bays.
• Industrial washdown in factories and production lines.

XWA9G15N/ET-S 9 GPM 1500 PSI Pump Motor Combo

Integration Tips

• Confirm motor voltage, phase, and overload protection match your facility electrical service.
• Use a properly sized inlet feed, filtration, and water supply to prevent cavitation at 9.0 GPM demand.
• Verify rotation requirements and plumbing orientation for left-hand shaft layouts in mirrored installations.
• Follow break-in oil change and service intervals listed in the included manual.
