RG2125HN 5.5 GPM 3650 PSI | 1450 RPM Triplex Pump

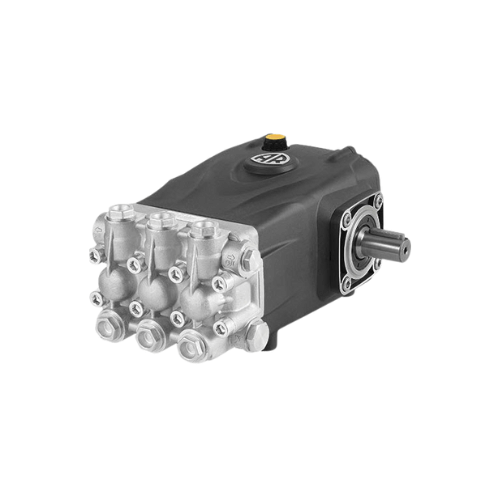

RG2125HN — 5.5 GPM 3650 PSI Triplex Pump, 1450 RPM, Nickel-Plated Head

• The RG2125HN is a professional-grade triplex plunger pump designed for industrial and commercial cleaning systems that require a dependable balance of flow, pressure, and long service life.
• Delivering 5.5 GPM at 3650 PSI while running at a low 1450 RPM, this pump provides strong cleaning impact with controlled mechanical stress, making it suitable for multi-shift operation and heavy-duty use.
• The nickel-plated manifold head offers enhanced corrosion resistance in wet, chemical-exposed, or wash bay environments where standard brass components are regularly challenged.
• Built around a 24 mm keyed solid crankshaft, the RG2125HN integrates easily into belt-drive, gearbox, and other engineered drive packages used by OEMs and system builders.

Performance and Operating Characteristics

Flow, Pressure, and Speed

• RG2125HN rated flow of 5.5 gallons per minute provides enough volume for large-area cleaning, multi-gun configurations (within system limits), and high-output tools such as surface cleaners and rotary nozzles.
• Maximum working pressure of 3650 PSI delivers the impact required to remove compacted road film, heavy grease, and stubborn deposits from vehicles, machinery, and structural surfaces.
• Operating at 1450 RPM, the pump runs slower than typical high-speed units, reducing vibration, lowering internal heat, and supporting longer service intervals for seals, bearings, and oil.
• The combination of high pressure and high flow makes the RG2125HN a good fit for systems where operators must cover large surfaces quickly without sacrificing cleaning intensity.

Triplex Plunger Design RG2125HN

• Triplex plunger configuration produces a smoother, pulse-reduced flow compared with single- or twin-piston designs, improving tool control and reducing pressure shock in hoses and fittings.
• Ceramic plungers provide a hard, wear-resistant surface that resists scoring and thermal shock, maintaining seal contact and volumetric efficiency over extended operating hours.
• Plunger movement is driven by a precision-ground crankshaft and robust connecting rods, maintaining accurate stroke length and alignment under varying loads and drive conditions.
• The pump is suitable for continuous-duty applications where long periods of operation and frequent start–stop cycles are part of normal daily use.

Construction and Materials

Crankcase, Shaft, and Bearings

• A heavy-duty crankcase is designed to support the rotating assembly under sustained load, providing structural rigidity and helping to control vibration when mounted on steel frames or skids.
• The 24 mm keyed solid crankshaft allows reliable power transmission from belt drives, Poly Chain systems, or gearboxes, giving integrators flexibility in system layout and motor selection.
• Oversized bearings are specified to manage radial and axial loads associated with high-pressure operation and belt tension, supporting stable long-term operation at the rated 1450 RPM.
• Internal lubrication is configured to deliver oil to critical surfaces consistently, supporting operation in demanding environments where ambient temperatures and duty cycles vary throughout the day.

Nickel-Plated Manifold and Wet End

• The nickel-plated manifold head provides an additional barrier against corrosion, improving service life in wash bays, outdoor installations, and applications using detergents within recommended limits.
• Precision machining of ports and sealing surfaces supports reliable gasket and O-ring sealing, reducing the risk of weeping or leakage under continuous-duty conditions.
• Stainless steel valves and guides are used in the wet end to maintain clean seating, reliable opening and closing, and stable flow at rated pressures.
• The overall material selection is aimed at users who operate in demanding industrial environments and expect the pump to handle regular exposure to water, humidity, and cleaning agents.

Installation, Service, and Maintenance

System Integration and Setup

• The RG2125HN is suitable for integration into belt-driven, gearbox-coupled, or direct-drive systems when configured with appropriately sized pulleys, couplings, and guards.
• Properly sized inlet plumbing, adequate water supply, and appropriate filtration are recommended to protect the pump from cavitation and particulate damage.
• The pump can be matched with unloaders, regulators, and safety valves commonly used in industrial and commercial high-pressure systems, allowing builders to standardize on proven components.
• The mounting footprint and port layout are well suited for use on floor skids, trailer-mounted packages, wall racks, and fixed plant frames where access for maintenance has been planned.

Routine Service Features

• Factory pre-filled crankcase oil supports initial start-up and testing; operators can quickly verify oil level through the integrated sight glass before the first run.
• A vented dipstick helps manage crankcase pressure and allows straightforward oil checks and changes without disassembling guards or removing major components.
• Seal and valve assemblies are serviceable using standard kits, enabling maintenance teams to perform planned rebuilds and keep pumps in rotation with minimal downtime.
• Documentation typically includes operating guidance and exploded parts schematics, making it easier to identify components, plan maintenance intervals, and maintain parts inventory.

Industrial and Commercial Applications

Vehicle and Equipment Washing

• Well-suited for truck, bus, and fleet wash systems where a combination of high pressure and high flow is needed to remove heavy road film, grease, and dirt.
• Supports cleaning of construction and rental equipment, including excavators, loaders, lifts, and mixers exposed to mud, concrete residue, and abrasive dust.
• Can be incorporated into mobile wash trailers and service rigs where industrial-grade components are required to withstand frequent transport and daily use.
• Works effectively with surface cleaners, undercarriage tools, and rotary nozzles commonly used by professional contractors and facility maintenance teams.

Facility and Surface Maintenance

• Suitable for plant and warehouse maintenance, including cleaning of floors, loading docks, containment areas, and structural elements before coating or repair.
• Supports surface preparation before painting, sealing, or coating on concrete, masonry, and steel where consistent high-pressure performance is required.
• Used in commercial cleaning operations for sidewalks, parking lots, drive lanes, and building exteriors that need regular, high-output washing.
• A good fit for industrial complexes and large facilities where fixed or centralized high-pressure systems feed multiple cleaning stations or tools.
