RG2125HN-SX LH Triplex Pump | 5.5 GPM 3650 PSI

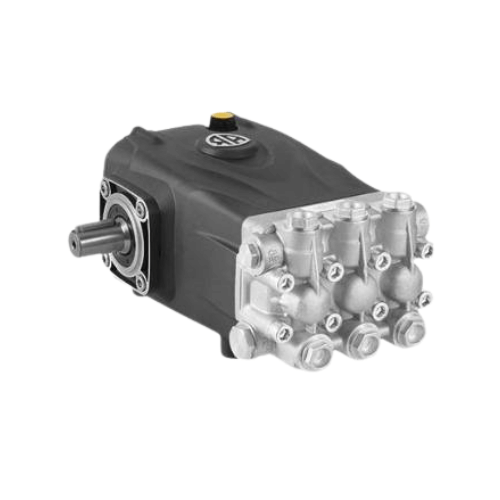

RG2125HN-SX — 5.5 GPM, 3650 PSI Left-Hand Triplex Pump, 1450 RPM

• Heavy-duty left-hand triplex plunger pump designed for industrial and commercial pressure washing systems that operate for long hours and require predictable performance.
• Delivers 5.5 GPM at 3650 PSI while running at a slow 1450 RPM, balancing strong impact pressure with reduced mechanical stress on bearings, seals, and drivetrain components.
• Intended for OEM builders, skid manufacturers, and contractors who need a left-hand shaft orientation to support mirrored layouts, compact frames, and clean plumbing runs.
• Built with a nickel-plated brass manifold, stainless valves, ceramic plungers, and oversized bearings to withstand harsh environments, frequent start–stop cycles, and continuous-duty service.

Performance and Operating Characteristics of RG2125HN-SX

Flow, Pressure, and Speed

• Nominal output of 5.5 gallons per minute gives enough volume to drive single or dual-gun cleaning systems, large surface cleaners, and high-impact rinse applications without oversizing the power unit.
• Maximum working pressure of 3650 PSI supports removal of heavy soils, oil, grease, and compacted road film on equipment, vehicles, and structural surfaces.
• Operating speed of 1450 RPM reduces heat generation, lowers internal turbulence, and helps extend service life of the crankcase oil, bearings, and packing assemblies.
• Stable pressure output across the normal operating range provides consistent tip performance, which is critical when using rotary nozzles, undercarriage cleaners, and specialty tools.

Shaft and Drive Configuration

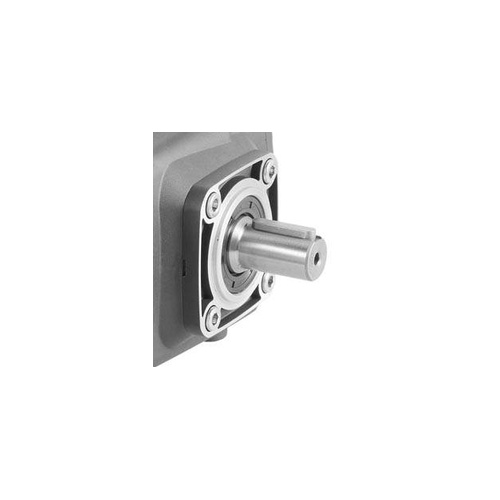

• 24 mm solid left-hand keyed crankshaft allows direct integration with belt drives, gearboxes, or couplings designed for reverse orientation without additional adapters.
• Left-hand drive simplifies mirrored pump layouts on shared skids, letting builders place drives, guards, and sheaves in symmetrical positions for cleaner assembly and easier guarding.
• Shaft design is sized to handle radial and axial loads associated with belt tension and fluctuating pressure, minimizing deflection and reducing long-term wear.
• Compatible with electric, hydraulic, or engine-driven power units when matched with appropriate drive hardware, giving OEMs flexibility to standardize on a single pump family.

Construction, Materials, and Reliability

Crankcase and Internal Components

• Heavy cast crankcase provides rigidity and helps control vibration when the pump is mounted to steel bases, trailers, or truck frames exposed to constant movement.
• Oversized crankshaft bearings are specified for long life at rated duty, supporting continuous-run applications and high annual operating hours.

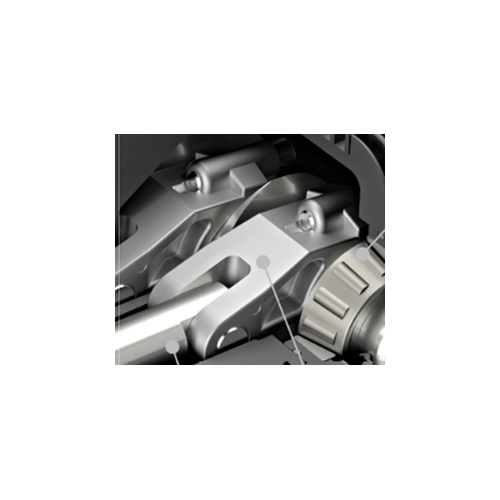

• Precision-machined connecting rods and crank surfaces maintain accurate plunger alignment, reducing side loading on seals and packings for longer service intervals.
• Internal oil passages are designed for consistent lubrication across a wide range of operating temperatures, supporting use in both indoor wash bays and outdoor mobile rigs.

Wet-End Materials of RG2125HN-SX

• Nickel-plated brass manifold provides improved resistance to moisture, mild detergents, and aggressive environments compared with uncoated brass, helping ports and sealing surfaces stay intact longer.
• Ceramic plungers resist scoring and thermal shock, maintaining smooth surfaces that reduce seal wear and support stable volumetric efficiency over time.
• Stainless steel inlet and discharge valves are designed for precise seating and controlled flow, helping the pump maintain pressure with minimal pulsation.
• High-pressure seals and low-pressure packings are selected for industrial duty and can be serviced using standard kits, making it easier to support fleet-wide maintenance programs.

Installation, Service, and Maintenance

RG2125HN-SX Service-Friendly Features

• Integrated oil sight glass allows technicians to verify oil level and basic oil condition at a glance without removing any covers or plugs, speeding up daily inspections.
• Vented fill cap or dipstick manages crankcase pressure and helps prevent premature seal wear caused by internal pressure build-up during long runs.
• Accessible drain ports make oil changes straightforward on skids, trailers, and wall-mounted frames, encouraging adherence to recommended service intervals.
• Straightforward head and seal access allows experienced technicians to complete seal and valve service in a controlled, repeatable process using standard tools.

Installation Considerations

• Best results are achieved when the pump is supplied with clean, adequately filtered water through correctly sized inlet plumbing and a properly supported suction line.
• System design should include a correctly matched unloader or regulator, bypass routing, and thermal relief strategy to protect the pump during extended bypass conditions.
• Careful alignment of belts, pulleys, or couplings is recommended to prevent side loading, vibration, and premature bearing wear, especially in high-duty-cycle environments.
• Detailed technical documentation, exploded views, and parts references are available to support stocking of seal kits, valve kits, and common wear items across multiple units.

Industrial and Commercial Use Cases

Fleet, Construction, and Industrial Equipment

• RG2125HN-SX is suited for truck and bus wash systems, refuse fleet cleaning, and heavy equipment wash bays where strong, repeatable pressure is required to remove road film and packed debris.
• Performs well on construction and rental yard wash stations servicing excavators, skid steers, lifts, mixers, and compact equipment exposed to mud, concrete residue, and abrasive dust.
• Supports industrial plant maintenance, including cleaning of process equipment, loading docks, material handling systems, and general facility exteriors.
• Compatible with large-diameter surface cleaners and specialty tools used in high-traffic yards and industrial pads where uniform cleaning coverage is required.

Agricultural, Municipal, and Custom Rigs

• Appropriate for agricultural equipment washing, livestock facility cleanup, and yard sanitation where durable pumps are expected to tolerate variable water quality and intermittent chemical exposure.
• Fits well in municipal maintenance rigs used for utility vehicles, public works fleets, and general facility cleaning where a left-hand orientation simplifies compact skid layouts.
• Frequently selected for custom trailers and truck-mounted systems that combine multiple pumps, heaters, tanks, and reels on a single frame, with left-hand drive aiding in component placement.
• Provides a stable platform for integrators and OEMs building standardized packages for contractors who need dependable, serviceable pumping equipment for daily professional use.
