RG2125HN-EC 5.5 GPM 3650 PSI Pump | 1450 RPM with Clutch

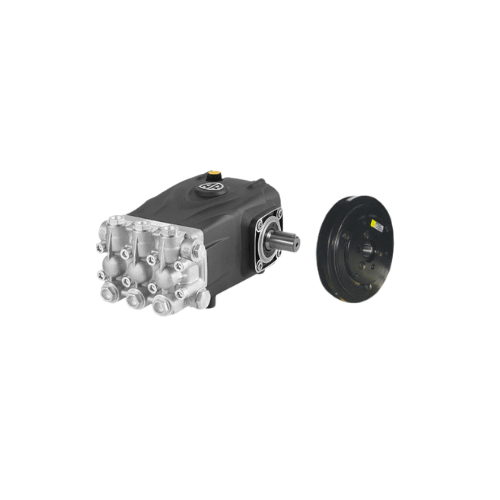

RG2125HN-EC — 5.5 GPM 3650 PSI Industrial Pump with Clutch, 1450 RPM

• The RG2125HN-EC is an industrial triplex plunger pump with an integrated clutch, engineered for continuous-duty cleaning systems that demand controlled operation, long service life, and stable performance.
• Delivering 5.5 GPM at 3650 PSI while running at a low 1450 RPM, it provides strong cleaning impact with reduced mechanical stress, making it suitable for multi-shift operation in busy facilities.
• The clutch allows the pump to engage only when flow is required, reducing heat, limiting wear on seals and bearings, and helping operators align pump run time with actual washing demand.
• Built for integration into truck and fleet wash stations, car wash tunnels, food and agriculture sanitation systems, and industrial wash bays where uptime and predictable maintenance are critical.

Performance and Operating Characteristics

Flow, Pressure, and Speed

• Rated output of 5.5 GPM supports single- or multi-gun systems, fixed spray bars, and rotating tools commonly used in commercial and industrial wash environments.
• Maximum working pressure of 3650 PSI provides the impact needed to remove heavy road film, grease, oil residue, and compacted dirt from vehicles, equipment, and process areas.
• Low 1450 RPM operating speed helps control vibration and internal temperature, supporting long-term durability and more predictable service intervals compared to high-speed alternatives.
• Stable pressure and flow characteristics support consistent nozzle performance, which is important for automated systems, undercarriage cleaners, and large-surface cleaners.

Triplex Plunger Pump Design

• Triplex configuration produces a pulse-reduced flow pattern, improving tool control and limiting pressure spikes in hoses, fittings, and manifolds.
• Ceramic plungers run against high-quality packings to maintain efficiency and reduce wear, even under frequent start–stop cycles or long-duty runs.
• Hardened stainless pistons and precision-ground crank components keep plunger travel accurate, which helps extend seal life and maintain volumetric performance.
• The pump is well-suited for applications that require long daily operating hours with steady pressure and minimal output fluctuation.

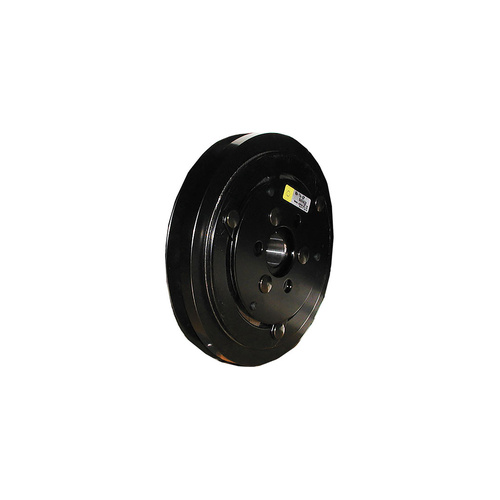

Integrated Clutch System

Engagement and Control

• The integrated clutch decouples the pump from the drive when flow is not required, allowing the engine or motor to continue running without constantly turning the pump.
• On-demand engagement can be coordinated with system controls, such as flow switches, pressure switches, or PLC logic, to match pump operation to process needs.
• Reduced run time during idle periods lowers energy use and mechanical load, particularly in automated bays or tunnels where vehicles move in and out of the wash zone.
• Controlled engagement and disengagement help protect the pump and drive components from unnecessary cycling, especially in high-frequency applications.

Service Life Advantages

• Limiting pump operation to periods of actual water flow reduces total seal and valve cycles, which can extend the time between rebuilds when the system is configured correctly.
• Lower average internal temperatures help preserve oil quality, extend bearing life, and improve long-term crankcase reliability.
• Operators can track pump hours more accurately based on flow time, improving planning for preventive maintenance and parts stocking.
• The clutch arrangement is particularly beneficial in facilities where wash demand is intermittent throughout each shift.

Construction and Materials

Crankcase and Bearings

• Heavy-duty die-cast aluminum crankcase provides structural rigidity while offering good heat dissipation in enclosed cabinets, pump rooms, and trailer enclosures.
• Splash lubrication distributes oil to crank journals and bearings without external pumps, simplifying the system and reducing failure points.
• Oversized tapered roller bearings are specified to handle both radial and axial loads from belts, couplings, and pressure fluctuations, helping maintain accurate shaft alignment.
• Robust internal components are designed to tolerate extended duty cycles typical of multi-shift operations and high-throughput wash facilities.

Manifold and Wet End

• Precision-machined brass manifold offers corrosion resistance and maintains accurate sealing surfaces in wet, chemical-exposed wash environments.
• Stainless and ceramic wet-end components are selected to handle frequent exposure to detergents, reclaimed water within specification, and changing operating temperatures.
• High-pressure seals and low-pressure packings are arranged for stable performance and serviceability, allowing straightforward seal replacement using standard kits.
• Valve assemblies are designed for clean seating and efficient flow, supporting consistent pressure rise and quick response to demand changes in multi-gun systems.

Installation, Service, and Integration

System Design Considerations

• Best results are achieved when the pump is supplied with properly filtered water, correctly sized inlet lines, and an adequate water source to avoid cavitation and inlet starvation.
• The clutch-equipped pump can be integrated with unloaders, regulators, and safety valves commonly used in industrial wash bays and automated systems.
• Careful alignment of belts or couplings and proper guard installation are recommended to maintain safety and maximize bearing life.

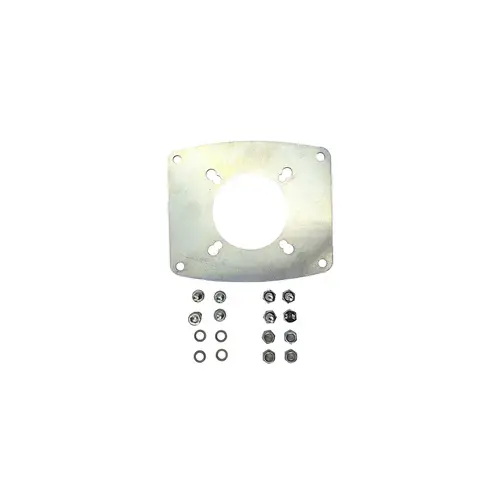

• The pump’s envelope and mounting configuration are suitable for floor frames, wall racks, mobile trailers, and skid packages where service access is planned from the outset.

Routine Maintenance and Monitoring

• Integrated oil sight glass allows quick verification of oil level and basic condition during daily inspections, without removing plugs or covers.
• Accessible fill and drain ports support clean oil changes on installed equipment, reducing service time in tight pump rooms or skid frames.
• Standardized seal and valve kits make it easier for maintenance teams to support multiple pumps of the same family with a limited range of stocked parts.
• When run within rated limits and supported by a sound maintenance program, the RG2125HN-EC provides stable, repeatable performance over long service intervals.

Industrial and Commercial Applications

Wash Bays, Tunnels, and Automated Systems

• Truck, bus, and fleet wash facilities that operate for long hours and require a pump and clutch combination capable of cycling with varying traffic and demand.
• Car wash tunnels and in-bay automatics where pumps must start and stop in coordination with vehicle presence, spray manifolds, and control logic.
• Multi-gun wash bays in distribution centers and logistics yards where several operators may be drawing flow at different times of the day.
• Facilities that need controlled, high-pressure output for undercarriage cleaning, wheel wash systems, and fixed spray bars.

Mobile Rigs and Plant Maintenance

• Professional mobile wash trailers and service trucks that require industrial-grade components capable of withstanding transport vibration and daily operation.
• Agricultural and food-processing sanitation systems where frequent washdown, confined spaces, and intermittent demand favor low-speed, clutch-enabled pump operation.
• Industrial plant maintenance programs that rely on fixed washdown stations to clean process equipment, floors, and structural surfaces during planned windows.
• Any high-demand, multi-shift cleaning environment where controlled pump engagement, consistent output, and predictable service requirements are key to keeping equipment online.
