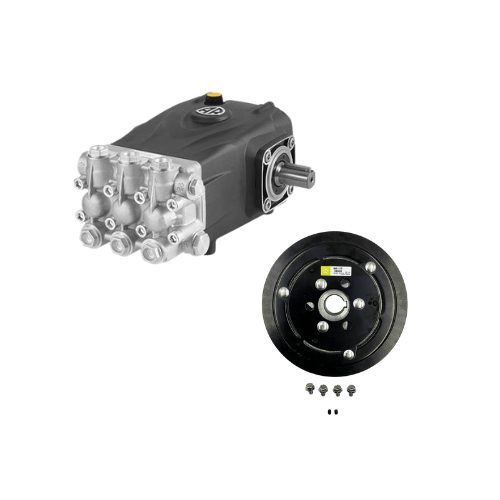

RG1528HN-EC | Triplex Pump, 4 GPM 4000 PSI, Electric Clutch Pulley

RG1528HN-EC — 4.0 GPM 4000 PSI Triplex Pump with Electric Clutch, 1450 RPM

• The RG1528HN-EC is an industrial triplex plunger pump equipped with an electric clutch pulley, built for commercial wash systems that need controlled engagement, long service life, and consistent daily performance.
• Delivering 4.0 GPM at 4000 PSI while running at a low 1450 RPM, it provides strong cleaning power with reduced mechanical stress, making it suitable for multi-shift fleets, fixed bays, and mobile rigs.
• The electric clutch allows the pump to be driven from a common power source while engaging only when commanded, supporting modern control strategies and reducing unnecessary pump run time.
• Intended for fleet wash operations, tunnel and in-bay automatic systems, industrial washdown, and contractor trailers where uptime, controllability, and predictable maintenance are priorities.

Performance and Operating Characteristics

RG1528HN-EC Flow, Pressure, and Speed

• Rated 4.0 gallons per minute output at 4000 PSI, the pump provides the pressure and volume needed to remove road film, grease, heavy dirt, and production residues from equipment and structures.
• Operates at 1450 RPM, a low shaft speed that limits vibration, lowers heat generation, and reduces wear on bearings, seals, and drive components.
• Triplex plunger design delivers a smoother flow pattern with less pulsation than simple piston arrangements, improving control at spray guns, manifolds, and rotating tools.
• Stable output supports long hose runs, multi-gun setups (within system design limits), and fixed spray bars used in automated and semi-automated wash systems.

Triplex Pumping Design of RG1528HN-EC

• Three plungers are driven in sequence by a precision-ground crankshaft, providing continuous high-pressure delivery with reduced pressure spikes in hoses and fittings.
• Ceramic plungers offer a hard, wear-resistant surface that resists scoring and thermal shock, helping maintain seal integrity and volumetric efficiency under long duty cycles.
• Oversized bearings and robust connecting rods support the rotating assembly, keeping plunger travel consistent even under varying load and drive conditions.
• The design is well suited for daily use in demanding environments where pumps see frequent starts, stops, and extended periods of operation.

Electric Clutch System

On-Demand Engagement and Control

• Integrated electric clutch pulley allows the pump to be engaged and disengaged under control of switches, relays, or automation systems, rather than running continuously with the engine or motor.
• The clutch enables the drive source to idle or run auxiliary equipment while the pump remains off-line until pressure is required, improving overall system flexibility.
• On-demand control is particularly useful in mobile rigs, service trailers, and tunnel systems where wash demand varies throughout the shift.
• Electrical actuation can be tied into safety interlocks, door switches, proximity sensors, or PLC logic to ensure the pump only runs when conditions are correct.

Service Life and Efficiency Advantages

• By allowing the pump to run only when needed, the clutch reduces total operating hours, lowering wear on seals, valves, and bearings over the life of the unit.
• Less time circulating water during idle conditions helps control operating temperature, supporting longer oil life and more stable performance.
• Energy use is better matched to actual cleaning demand, which is beneficial for systems where the power unit serves multiple functions.
• Maintenance schedules can be based more closely on true pump run time instead of engine or motor hours, improving planning for rebuilds and parts stocking.

Construction and Materials

Crankcase, Shaft, and Bearings

• Oil bath crankcase provides continuous lubrication to crankshaft journals and bearings, with a sight glass and vented dipstick to support quick checks and clean oil changes.
• The 24 mm solid shaft is designed for belt-drive and clutch applications, offering a stable connection to the electric clutch pulley and associated drive components.
• Oversized bearings are selected to manage radial and axial loads from belt tension, clutch engagement, and pressure changes, helping maintain alignment over long service intervals.
• Robust crankcase casting provides structural support and assists with heat dissipation in enclosed cabinets, trailers, and pump rooms.

Plungers and Wet-End Components of RG1528HN-EC

• Precision ceramic plungers reduce friction and resist chemical attack within rated limits, contributing to smoother operation at high pressure.
• Seals and packings are configured for industrial duty and are serviceable with standard kits, allowing planned rebuilds without specialized tools.
• Stainless-steel valve components maintain clean seating and reliable flow control under frequent cycling, supporting consistent performance in continuous-use wash systems.
• Material selection is aimed at environments where water quality, mild detergents, and extended operating hours are part of normal operation.

RG1528HN-EC Installation, Service, and Integration

System Integration and Setup

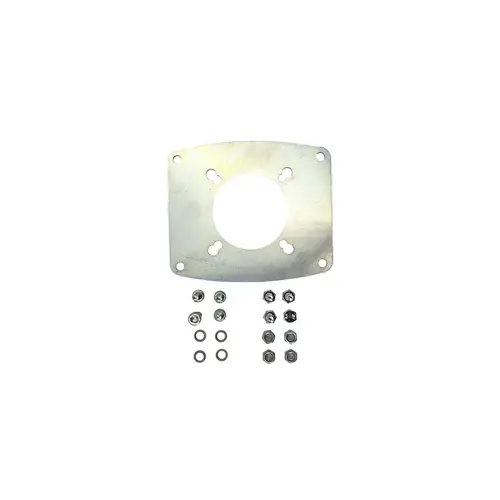

• Intended for integration into belt-driven systems using the supplied electric clutch pulley, with proper alignment and guarding recommended to maintain safety and bearing life.
• Works with unloaders, regulators, and safety valves commonly used in commercial and industrial wash systems, giving builders flexibility in system design.
• Properly sized inlet plumbing, filtration, and water supply are important to avoid cavitation and protect internal components from debris.
• The pump footprint and port layout support installation on skids, trailers, wall frames, and fixed plant bases where access for maintenance is planned.

Routine Maintenance of RG1528HN-EC

• Oil sight glass and vented dipstick make daily checks straightforward, encouraging consistent inspection during shift changes or pre-start routines.
• Standardized seal and valve kits simplify stocking for fleets and facilities operating multiple pumps of the same series.
• Periodic inspection of belts, clutch wiring, connections, and mounting hardware is recommended to maintain reliable engagement and smooth operation.
• When maintained within rated limits and supplied with proper water quality, the RG1528HN-EC delivers stable performance and predictable service intervals for high-demand users.

RG1528HN-EC Industrial and Commercial Applications

Fleet, Automotive, and Mobile Rigs

• Suitable for fleet wash systems for trucks, buses, and delivery vehicles where wash demand varies and electric clutch control supports efficient operation.
• Commonly used in automatic and tunnel car wash installations where pump operation must follow conveyor or gantry movement.
• Well suited for mobile wash trailers and service trucks that require industrial-grade pumps capable of withstanding transport vibration and daily deployment.
• Supports undercarriage cleaners, rotating nozzles, and surface tools used in transportation and service center environments.

Industrial, Agriculture, and Facility Maintenance

• Performs well in industrial washdown applications, including equipment cleaning, floor flushing, and work area maintenance in factories and processing plants.
• Appropriate for agricultural and farm equipment cleaning where mud, residues, and chemicals must be removed from tractors, implements, and handling equipment.
• Can be applied in rental centers, maintenance shops, and municipal facilities that need controlled, high-pressure output tied to operational signals or safety logic.
• A practical choice for facilities that prioritize controlled engagement, reduced wear, and reliable performance from a low-speed triplex pump with integrated electric clutch.
