RCV3G25E-F8SX LH Electric Pump | 3.0 GPM 2500 PSI

RCV3G25E-F8SX Overview

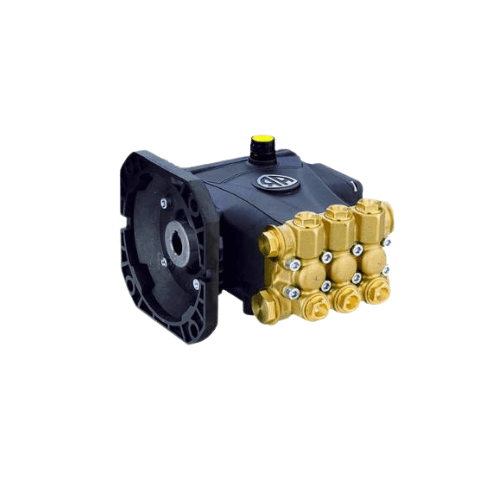

The Annovi Reverberi RCV3G25E-F8SX is a compact, electric-drive
triplex plunger pump designed for professional cleaning systems that
require dependable performance, long service life, and efficient operation in
continuous-duty environments. Delivering 3.0 GPM at 2,500 PSI and running
at 1,750 RPM, this pump is optimized for electric-powered pressure washer
packages, industrial washdown stations, maintenance bays, and OEM cleaning equipment.

Built with a forged brass manifold, precision ceramic plungers, and
heavy-duty crankshaft bearings, the RCV3G25E-F8-SX offers a robust solution for
commercial and light-industrial applications where consistent output and reliability
are essential. Its F8 motor flange allows direct coupling to NEMA 56C
electric motors, while the left-hand shaft (SX) orientation provides layout
flexibility for skid builders, cabinet systems, and mirrored pump configurations.

Performance & Pump Architecture

Triplex Plunger Design

• Smooth, pulse-reduced flow ideal for surface cleaning, washdown, and multi-nozzle applications.
• Ceramic plungers improve wear resistance and extend seal life even under heavy use.
• Brass manifold head provides strength, corrosion resistance, and excellent heat management.
• Oversized bearings support long hours of operation at 1,750 RPM with low vibration.
• High-efficiency valving maintains volumetric performance across pressure ranges.

Electric-Duty Performance of RCV3G25E-F8SX

• 3.0 GPM @ 2,500 PSI makes this pump well-suited for both single-gun contractor units and in-plant cleaning stations.
• 1,750 RPM slow-speed design reduces pump temperature, extending service intervals and improving longevity.
• Engineered specifically for electric motor-driven systems, minimizing noise and vibration.
• Provides consistent output for rinse arches, wash bays, tool cleaning, parts washing, and maintenance operations.

Key Specifications – RCV3G25E-F8SX

Hydraulic & Mechanical Data

• Flow: 3.0 GPM (11.4 L/min)
• Maximum Pressure: 2,500 PSI (172 bar)
• Operating Speed: 1,750 RPM
• Pump Type: Triplex ceramic plunger pump

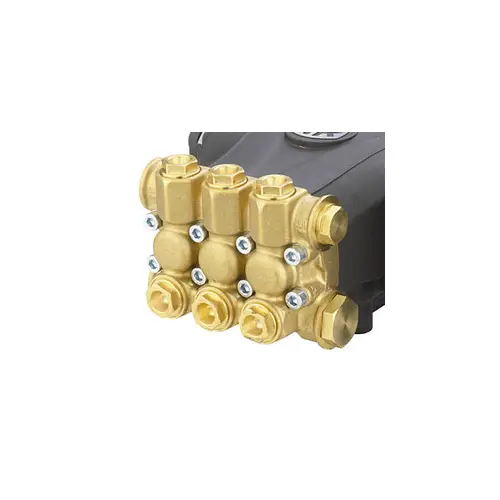

• Manifold Material: Forged brass
• Crankcase: Cast aluminum with oversized bearings
• Plungers: Ceramic plungers with high-pressure seals
• Oil Capacity: Approx. 10 oz (varies by revision)
• Max Fluid Temperature: Typically up to 140°F (60°C) when properly supplied

Shaft, Mounting & Ports

• Shaft Orientation: Left-hand (SX) configuration
• Shaft Type: 5/8″ hollow shaft for NEMA 56C motor coupling

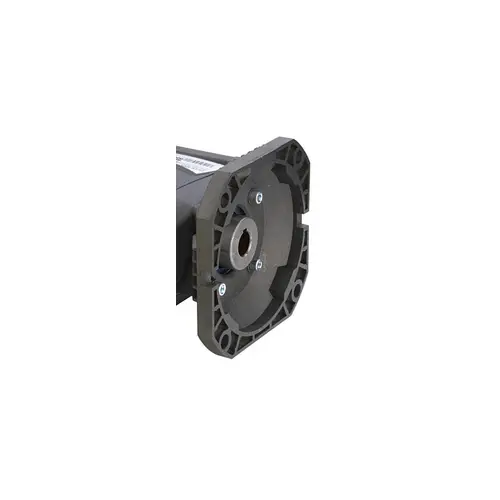

• Mounting Style: F8 flange for direct electric motor connection
• Inlet Port: 1/2″ NPT (verify final BOM)
• Discharge Port: 3/8″ NPT

Applications & Industry Use Cases of RCV3G25E-F8SX

Industrial & Commercial Cleaning

• Fleet washdown stations for trucks, vans, equipment, and machinery.
• Manufacturing plants requiring reliable high-pressure water for cleaning tools, floors, and components.
• Maintenance and repair shops using pressure washing for vehicle prep, degreasing, and surface cleaning.
• Food-processing areas when installed with appropriate downstream hygienic components.

Contractor & Facility Applications

• Mobile wash skids powered by electric generators or shop power.
• Detailing shops and car wash prep bays where consistent 2,500 PSI performance is ideal.
• Building maintenance teams cleaning walkways, equipment pads, and work areas.
• Light industrial rinse stations supporting daily sanitation tasks.

OEM & Custom System Builders

• Skid and cabinet-style pressure washer packages designed for indoor or enclosed environments.
• Automated rinse arches and conveyor wash modules.
• Multi-pump arrays where SX orientation helps create mirrored, space-optimized layouts.
• Industrial equipment cleaning modules integrated into assembly lines or process cells.

Installation & Integration

RCV3G25E-F8SX Mounting & Drive Alignment

• Direct-mount F8 motor interface eliminates the need for a pump-to-motor coupler in many designs.
• Precision alignment between pump and motor shaft ensures smooth engagement and reduces wear.
• Compact configuration allows installation in cabinet systems, wall-mount frames, and portable electric skids.
• Ensure adequate ventilation and service clearance for oil checks, valve maintenance, and seal replacement.

System Design Recommendations

• Use proper inlet filtration (50–100 micron) to protect valves, plungers, and seals from debris.
• Maintain positive inlet pressure to prevent cavitation, especially in warm-water or long-line installations.
• Pair with a correctly sized unloader valve and safety relief rated for 2,500 PSI.
• Use high-pressure hose, fittings, and nozzles matched to the pump’s output for best performance.

Maintenance & Serviceability

RCV3G25E-F8SX Service Features

• Ceramic plungers and high-grade seals provide excellent life under continuous load but are easy to replace when needed.
• Accessible valve caps allow quick inspection and replacement of check valves.
• External oil fill and drain simplifies routine maintenance and oil changes.
• Adhering to AR’s recommended service intervals helps maintain maximum pump life, efficiency, and uptime.
• When supplied with clean water, proper unloader settings, and correct inlet conditions, the RCV3G25E-F8-SX delivers years of dependable service.
