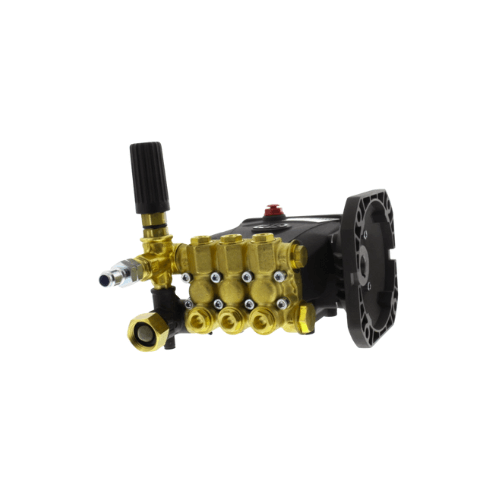

RCV3G25E-F8VRCID 3.0 GPM 2500 PSI Pump | 3400 RPM F8VRCID

Overview

The Annovi Reverberi RCV3G25E-F8VRCID is a commercial-grade
triplex plunger pressure washer pump engineered for electric
direct-drive applications that demand reliable power in a compact footprint.
Rated for 3.0 GPM at 2,500 PSI and designed to run at
3,400 RPM, this pump is ideal for 120V and 230V electric
pressure washer packages, in-plant washdown systems, detail bays, and OEM
equipment where consistent performance and long service life are essential.

Built on AR’s proven RC-series platform, the RCV3G25E-F8VRCID features a
forged brass manifold head, ceramic plungers,
and a 5/8″ hollow shaft designed to mount directly to
NEMA 56C frame electric motors via the integrated F8 motor flange.
This direct-coupled configuration reduces footprint, simplifies alignment, and
delivers efficient power transfer for compact, professional cold-water systems.

Performance & Pump Architecture

Triplex Plunger Design

• Three-plunger triplex design delivers smooth, pulse-reduced flow that improves trigger-gun feel and nozzle pattern consistency.
• Ceramic plungers provide outstanding wear resistance and help extend seal life, even under frequent start–stop cycles.
• Forged brass manifold resists corrosion and maintains structural integrity at 2,500 PSI working pressure.
• Aluminum crankcase with oil bath lubrication keeps weight low while providing excellent heat dissipation at 3,400 RPM.
• High-efficiency check valves support strong volumetric efficiency across the full operating range.

Electric-Duty Performance

• 3.0 GPM @ 2,500 PSI is a proven “sweet spot” for professional cleaning – strong impact with manageable water use.
• 3,400 RPM operating speed matches typical 2-pole electric motors and compact gas/electric conversion frames.
• Designed for heavy-duty, daily service in commercial and light industrial environments.
• Suitable for single-gun systems using 3/8″ high-pressure hose and standard contractor-grade accessories.

Key Specifications – RCV3G25E-F8VRCID

Hydraulic & Mechanical Data

• Model: RCV3G25E-F8VRCID
• Flow: 3.0 GPM (11.4 L/min) nominal
• Maximum Pressure: 2,500 PSI (172 bar)
• Maximum Speed: 3,400 RPM
• Pump Type: Triplex ceramic plunger design
• Head Material: Forged brass manifold
• Crankcase Material: Cast aluminum
• Oil Capacity: Approx. 9.8 oz (check manual for oil type and volume)
• Maximum Fluid Temperature: Up to 140°F (60°C) with proper inlet conditions

Shaft, Mounting & Porting

• Shaft Type: 5/8″ hollow shaft for direct electric-motor drive
• Mounting: F8 flange for NEMA 56C electric motors (approx. 1.5–6.0 HP range)
• Inlet Port: 1/2″ FPT (low-pressure water supply)
• Discharge Port: 3/8″ FPT high-pressure outlet
• Series: RC / RCV electric-drive commercial series

Applications & Industry Use Cases

Commercial & Facility Cleaning

• Maintenance wash bays for equipment, forklifts, and shop tools.
• Fleet and vehicle washing for vans, pickups, small trucks, and service rigs.
• Building maintenance tasks such as cleaning sidewalks, loading docks, and exterior walls.
• Manufacturing plants that require routine washdown of floors, work cells, and fixtures.

Detailing & Service Operations

• Automotive and truck detailing shops where consistent pressure and moderate flow are ideal.
• Rental yards and equipment dealers preparing machines between rentals.
• Small service fleets needing a fixed, electric-powered wash station.
• HOA and facility maintenance teams supporting carts or wall-mount washdown units.

OEM & Custom System Builders choose RCV3G25E-F8VRCID

• Cabinet and wall-mount electric pressure washer packages for indoor use.
• Compact skid systems where a NEMA 56C motor and direct-mount pump keep footprint small.
• Dedicated wash modules feeding hose reels, boom systems, or automated spray manifolds.
• Retrofit kits replacing worn axial pumps with a longer-life triplex design.

Installation & Integration

Mounting & Alignment

• Direct F8 motor flange simplifies installation—no belt/pulley alignment in most builds.
• Ensure the electric motor is properly sized (typically 1.5–3 HP at 230V, depending on duty and supply) to avoid overload.
• Mount pump and motor on a rigid base or frame to minimize vibration and shaft stress.
• Allow adequate clearance around the pump for oil checks, drain access, and valve servicing.

Plumbing & System Design

• Use sufficient inlet hose diameter and short runs from the water source to maintain positive inlet pressure.
• Install an appropriate inlet filter/strainer (50–100 micron) to protect valves and seals.
• Pair with a correctly sized unloader valve, pressure gauge, and safety relief rated for 2,500 PSI.
• Match nozzle size to the pump’s 3.0 GPM / 2,500 PSI duty point for best performance and motor load.

Maintenance & Serviceability

Service-Friendly Features of RCV3G25E-F8VRCID

• Removable valve caps enable quick inspection and replacement of check valves when performance drops.
• Ceramic plungers and premium seal packs deliver long life, and are easily serviced with standard AR repair kits.
• External oil fill, sight glass, and drain plug support routine oil changes and visual checks.
• Follow AR-recommended oil change intervals, torque checks, and seal inspections to maximize uptime.
• When paired with clean water, correct inlet conditions, and a properly adjusted unloader, the RCV3G25E-F8VRCID can provide years of reliable, commercial-duty performance in demanding environments.
