RCV2G25EF8SXVRCIDR Left-Hand Triplex Pump | 2.0 GPM 2500 PSI

RCV2G25EF8SXVRCIDR by Annovi Reverberi — RC Series Left-Hand Electric Triplex Plunger Pump with VR Unloader and Integrated Dump Regulator | 2.0 GPM | 2,500 PSI | Brass Manifold | 5/8″ Hollow Shaft | NEMA 56C F8 Electric Motor Mount | 3,400 RPM

The RCV2G25EF8SXVRCIDR by Annovi Reverberi is a precision-engineered RC Series triplex ceramic plunger pump built for NEMA 56C electric motor-driven pressure washing systems requiring 2.0 GPM at 2,500 PSI in a left-hand shaft configuration with an Integrated Dump Regulator for instant pressure relief at trigger release. Rated at 2.0 GPM and 2,500 PSI at 3,400 RPM, the RCV2G25EF8SXVRCIDR delivers 5,000 cleaning units — combining 2.0 GPM focused output with 2,500 PSI cleaning force for residential and commercial vehicle washing, decks, patios, siding, small equipment, and shop-floor cleaning — through a precision-machined brass manifold, solid ceramic plungers, stainless steel valves, and an F8 NEMA 56C flange with 5/8″ hollow shaft. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the RCV2G25EF8SXVRCIDR arrives factory-configured and factory-tested for immediate installation.

The RCV2G25EF8SXVRCIDR carries two factory-installed features that make it purpose-built for specialized electric system applications: the SX left-hand shaft configuration — engineered for frames, cabinets, and installations where the motor and pump must align from the left side — and the Integrated Dump Regulator (IDR), which instantly releases system pressure the moment the trigger gun is released rather than holding pressure in the bypass circuit. Built by Annovi Reverberi in Modena, Italy — with US-based operations, a domestic parts distribution network, and dedicated technical support — this pump arrives pre-filled with factory break-in oil, factory-tested, and ready for installation. Protected by a 5-year US limited warranty and built to be fully rebuilt rather than replaced, the RCV2G25EF8SXVRCIDR is a long-term investment capable of a decade of productive service life.

Factory-Matched and Approved — The RCV2G25EF8SXVRCIDR Complete Assembly Advantage

No Mismatches. No Guesswork. No Warranty Risk. Just Install and Run.

Every RCV2G25EF8SXVRCIDR ships as a factory-matched, factory-approved, and factory-installed complete pump and unloader assembly:

• Factory-matched VR unloader with IDR for 2,500 PSI — the VR adjustable unloader and Integrated Dump Regulator are factory-calibrated for this pump’s 2.0 GPM / 2,500 PSI duty point. Pressure regulation and instant dump characteristics are factory-set as a complete system.
• Factory-approved configuration — the complete assembly is Annovi Reverberi’s validated specification for this model. Operating with the factory-installed components maintains full 5-year warranty coverage.
• Factory-installed and tested — every RCV2G25EF8SXVRCIDR exits the manufacturing facility with the VR/IDR assembly mounted, calibrated, and tested for flow, pressure, and leak-free operation before shipment.
• Eliminates mismatch returns — the factory-matched assembly eliminates incorrect unloader specification — the most common source of pump system returns — before the pump leaves the box.
• Installation-ready — confirm NEMA 56C motor compatibility and left-hand frame geometry, mount via the F8 flange, connect system hoses, and start. The RCV2G25EF8SXVRCIDR arrives engineered, assembled, and ready.

Decoding the RCV2G25EF8SXVRCIDR Model Number

What Every Segment of This Annovi Reverberi Pump Designation Tells You

• RCV — Pump series: RC Series triplex plunger pump — Annovi Reverberi’s compact commercial electric motor pump platform
• 2G — Flow rate: 2.0 GPM
• 25 — Maximum pressure: 2,500 PSI — 2.0 × 2,500 = 5,000 cleaning units
• E — Shaft type: Electric shaft — hollow shaft configuration for direct electric motor coupling
• F8 — Flange type: NEMA 56C flange — direct coupling to NEMA 56C electric motors with 5/8″ hollow shaft (Annovi Reverberi part AR1584)
• SX — Shaft orientation: Left-hand configuration — pump shaft exits from the left side of the crankcase, engineered for frames, cabinets, and installations where left-hand motor-to-pump alignment is required
• VR — Unloader family: VR series adjustable unloader — factory-installed pressure regulation and bypass control
• C — Assembly configuration code for this integrated VR/IDR assembly
• IDR — Integrated Dump Regulator: instant pressure release at trigger release — system pressure drops immediately when the spray gun trigger is released rather than holding in the bypass circuit

Key Specifications

RCV2G25EF8SXVRCIDR Technical Details at a Glance

• Flow Rate: 2.0 GPM (gallons per minute)
• Maximum Pressure: 2,500 PSI
• Cleaning Units: 5,000 (GPM × PSI)
• Operating Speed: 3,400 RPM
• Pump Type: RC Series triplex ceramic plunger pump — smooth, low-pulsation output
• Shaft Orientation: Left-hand configuration (SX) — left-side shaft exit for specialized frame and cabinet installations

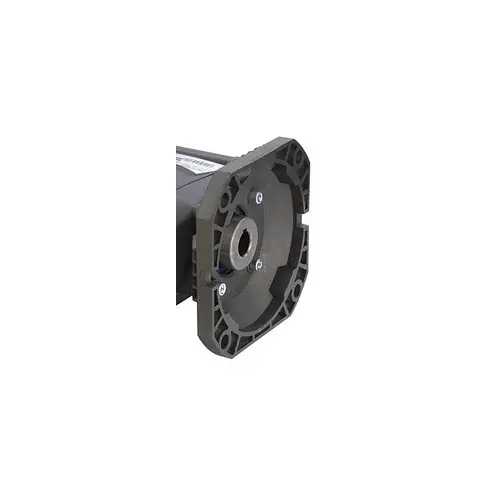

• Flange: F8 — NEMA 56C electric motor flange, 5/8″ hollow shaft (Annovi Reverberi part AR1584)

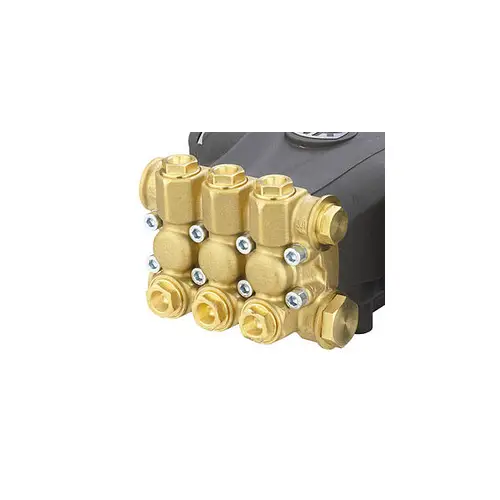

• Manifold Material: Precision-machined brass — pressure stability and corrosion resistance
• Plungers: Solid ceramic — wear resistance and consistent sealing performance
• Valves: Stainless steel — durability under frequent pressure cycling
• Bearings: Industrial-grade — engineered for long-term tolerances under continuous operation
• Serviceability: Oil sight glass and vented dipstick for simplified routine maintenance
• Lubrication: Oil-bath crankcase with factory pre-filled break-in oil
• Unloader System: VR series adjustable unloader with Integrated Dump Regulator (IDR) — factory-matched and factory-installed
• Chemical Injector: Not included — straight 2,500 PSI water output
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

What’s Included in the Box

A Complete, Factory-Configured RCV2G25EF8SXVRCIDR Assembly Ready for Installation

• Factory-matched VR adjustable unloader with Integrated Dump Regulator (IDR) — installed and calibrated for the 2.0 GPM / 2,500 PSI operating point; instant pressure release at trigger release confirmed
• Banjo bolts and sealing O-rings — standard VR family hardware for secure, leak-resistant unloader connections
• Factory break-in oil — crankcase pre-filled to the correct operating level for first startup
• Oil sight glass and vented dipstick — at-a-glance oil level monitoring and simplified oil changes
• Mounting hardware — for F8 NEMA 56C left-hand electric motor installation
• Operator’s manual — complete installation, startup, operating, and maintenance procedures
• Parts schematic — exploded-view diagram with Annovi Reverberi part numbers for every serviceable component

SX Left-Hand Configuration — Engineered for Specialized Installations

Left-Side Shaft. Correct Frame Geometry. Purpose-Built for Tight Installations.

The SX left-hand configuration on the RCV2G25EF8SXVRCIDR is the defining installation feature that separates this pump from standard RC Series models at the same output:

• Left-hand shaft for specific frame and cabinet geometry — the SX designation confirms the pump shaft exits from the left side of the crankcase on the RCV2G25EF8SXVRCIDR. This is engineered for pressure washer frames, cabinets, and skid layouts where the standard right-hand shaft orientation creates motor-to-pump alignment conflicts or plumbing routing interference.
• Correct for specialized OEM electric builds — custom OEM pressure washer systems, compact cabinet washers, and specialty electric skid layouts sometimes require left-hand pump orientation to match motor position, outlet port routing, or cabinet door clearance. The RCV2G25EF8SXVRCIDR is the correct specification for these installations.
• Essential for replacement installs preserving original layout — when replacing a left-hand pump in an existing system, the RCV2G25EF8SXVRCIDR preserves the original motor-to-pump alignment and plumbing geometry without requiring frame modifications or re-routing of inlet and discharge connections
• Direct F8 NEMA 56C mounting — left-hand configuration, same F8 NEMA 56C flange and 5/8″ hollow shaft interface as standard orientation, supporting fast installation with repeatable alignment for high-speed electric builds where left-hand geometry is required

Integrated Dump Regulator (IDR) — Instant Pressure Release at Trigger Release

Pressure Drops Immediately. No Holding Pressure in Bypass. Maximum Safety at Trigger Release.

• Instant pressure dump at trigger release — the IDR on the RCV2G25EF8SXVRCIDR releases system pressure immediately when the spray gun trigger is released, dropping pressure to near-zero rather than holding 2,500 PSI in the bypass circuit during idle intervals
• Enhanced operator safety — instant pressure release means hoses, connections, and accessories downstream of the RCV2G25EF8SXVRCIDR are not holding full working pressure during pause intervals, reducing the risk of unexpected discharge when the trigger is re-engaged
• Reduced bypass circuit stress — by dumping pressure at trigger release rather than holding it in bypass, the IDR reduces sustained thermal and mechanical load on hoses, fittings, and downstream components connected to the RCV2G25EF8SXVRCIDR during stop-start operation
• Adjustable VR unloader base — the VR unloader provides adjustable pressure regulation across the RCV2G25EF8SXVRCIDR operating range, with the IDR functioning as the immediate dump mechanism at trigger release on top of the VR’s standard bypass protection
• No factory-installed injector — the RCV2G25EF8SXVRCIDR delivers straight 2,500 PSI water output. Chemical delivery managed externally when soap application is required.

Typical Applications

Where the RCV2G25EF8SXVRCIDR Delivers Best Results

• Custom OEM electric pressure washer builds requiring left-hand orientation — the RCV2G25EF8SXVRCIDR is purpose-engineered for cabinet washers, compact skid systems, and specialty electric builds where left-hand shaft geometry is dictated by frame design, motor position, or plumbing layout
• Replacement installs preserving original left-hand layout — direct drop-in replacement for existing left-hand pump configurations, preserving motor alignment and outlet port geometry without frame modification
• Residential and commercial washing — vehicles, decks, patios, siding, and outdoor surfaces where the RCV2G25EF8SXVRCIDR’s 2,500 PSI output and IDR instant pressure release deliver safe, controlled cleaning from a compact electric platform
• Small equipment and shop-floor cleaning — compact electric wash systems in enclosed environments where left-hand motor orientation, quiet electric operation, and IDR instant pressure management support safe stop-start cleaning workflows
• Agricultural and facility maintenance with left-hand mounting requirements — stationary electric wash installations where left-hand pump orientation is required by existing motor position or facility layout

5-Year US Warranty, Full Rebuildability, and Wholesale Pricing

RC Series Electric Performance Backed by Domestic Support

The RCV2G25EF8SXVRCIDR is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network. Every internal wear component — solid ceramic plungers, brass manifold seals and o-rings, stainless valve seats and springs, VR unloader and IDR service parts, piston packing kits, and crankcase bearings — is stocked domestically through authorized distribution channels. Contractors, facility managers, OEM equipment builders, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RCV2G25EF8SXVRCIDR and the complete Annovi Reverberi pump and unloader assembly line. WSHPWR maintains one of the most complete Annovi Reverberi inventories available through any US web store — with thousands of products in stock and a continually expanding catalog.

5,000 Cleaning Units. 2,500 PSI. 2.0 GPM. Left-Hand. F8 NEMA 56C. IDR Instant Dump. No Injector.

Italian Engineering. Left-Hand Electric Platform. Integrated Dump Regulator. US Warranty Coverage.

For OEM builders, facility managers, and contractors who need 2.0 GPM at 2,500 PSI in a left-hand NEMA 56C electric platform — with F8 flange direct coupling, SX left-hand shaft configuration for specialized frame and cabinet geometry, VR adjustable unloader with Integrated Dump Regulator for instant pressure release at trigger release, and a completely rebuildable platform backed by a 5-year US warranty — the RCV2G25EF8SXVRCIDR delivers the purpose-engineered left-hand electric solution from one of the global pressure pump industry’s most trusted manufacturers. Five thousand cleaning units. Left-hand configuration. Instant pressure dump. Five years of US warranty. A decade of service life.
