XJV2G15D-F7 2.0 GPM 1500 PSI | F7 fits 4″ SAE J609A

This product has been discontinued and is no longer available.

Browse our current pressure washer pumps here → View Available Pumps

Need help finding a replacement? Contact us and we’ll match you with the right pump for your application.

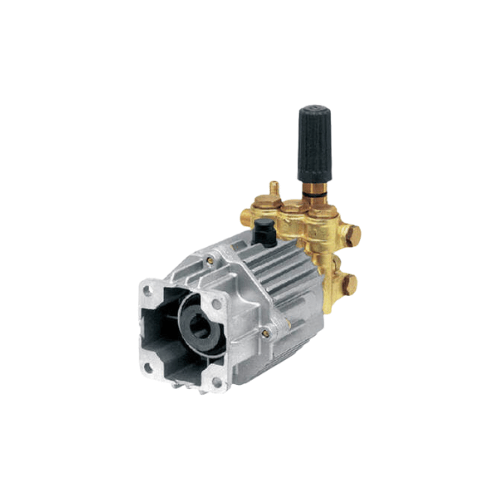

XJV2G15D-F7 Vertical Axial Cam Pump

The Annovi Reverberi XJV2G15D-F7 is a compact, vertical-shaft axial cam pump designed
for gas-engine pressure washer platforms where footprint, weight, and uptime all
matter. Delivering 2.0 GPM at 1,500 PSI at a nominal
3,400 RPM, it provides consistent cleaning performance for
residential and light commercial machines while maintaining an industrial-style
approach to materials, protection, and serviceability.

• 2.0 GPM at 1,500 PSI for everyday surface cleaning and rinse work.
• Vertical-drive axial cam architecture for compact gas engine packages.
• Designed as an OEM-grade replacement for consumer and light-duty contractor units.
• Factory-filled, maintenance-free crankcase to simplify ownership and operation.
• Integrated unloader and chemical injector to reduce system complexity.

Key Specifications & Duty Point of XJV2G15D-F7

The duty point and configuration are sized for standard vertical-shaft gasoline
engines used on portable pressure washers. The F7 3/4″ SAE J609A mount
allows the pump to bolt directly to the engine crankshaft, minimizing hardware
and alignment work. This arrangement provides a clean, repeatable package for
OEM builds and replacement scenarios.

• Flow: 2.0 GPM nominal.
• Pressure: 1,500 PSI for typical residential and light commercial tasks.
• Speed: 3,400 RPM engine-matched operating speed.
• Pump Type: Horizonta axial cam, direct-drive configuration.
• Mount: F7 3/4″ SAE J609A gas engine flange.
• Warranty: 5-year limited coverage when used within rated conditions.
• Service Window: Rebuild-friendly after approximately 500 hours of use.

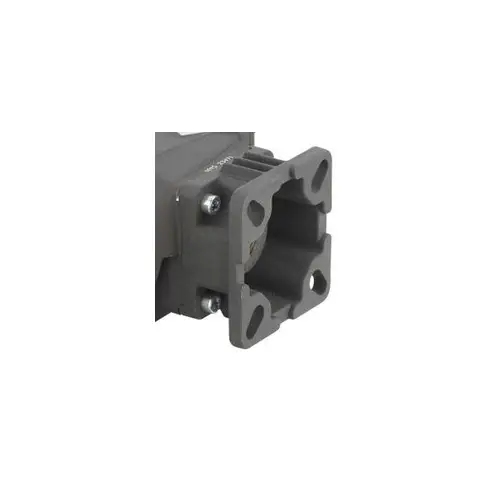

Engine Mount & Interface

The vertical F7 mount is engineered for direct coupling to popular small-engine
platforms, eliminating the need for belts, pulleys, or additional brackets.
This results in a compact footprint and straightforward installation for both
OEM production and in-field replacements.

• Direct connection to 3/4″ horizontal engine shafts via F7 flange.
• Reduces hardware count and alignment steps during assembly.
• Compact envelope for consumer carts and contractor-grade frames.
• Consistent centerline alignment between pump and engine for reduced vibration.
• Suitable for new builds and retrofits on many vertical-engine pressure washers.

Pump Construction & Internal Components

Although compact, the pump uses an industrial-style mix of materials to support
reliable operation. Ceramic plungers, stainless steel valves, and heavy-duty
seals are combined with a molded housing and maintenance-free crankcase to
deliver a long service life under typical residential and light commercial duty.

• Ceramic plungers to resist abrasion and provide a stable sealing surface.
• Stainless steel valves for dependable seating and repeatable pressure.
• Heavy-duty seal set sized for continuous cycling at rated pressure.
• Factory-filled synthetic oil in a sealed crankcase—no scheduled oil changes.
• Internal geometry optimized for low pulsation and smooth hydraulic output.

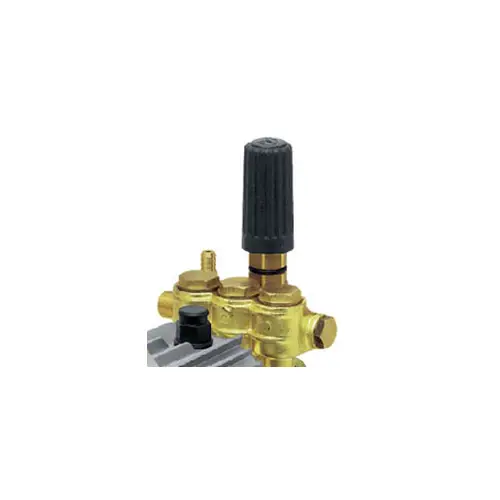

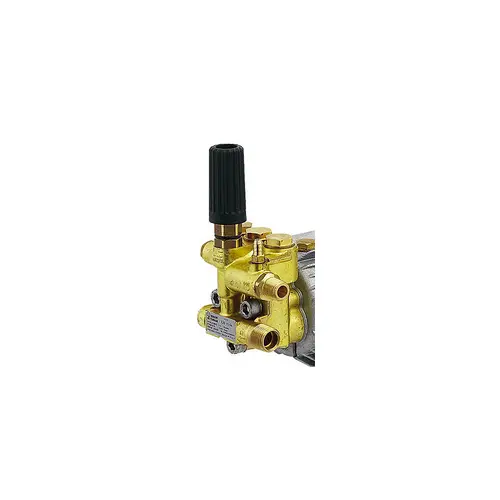

XJV2G15D-F7  Integrated Unloader & Chemical Injection

To reduce system plumbing and assembly time, the pump incorporates both the
unloader and chemical injection directly into the body. This simplifies hose
routing on compact frames and gives the operator direct control over pressure
and detergent delivery at the machine.

• Built-in unloader bypasses flow when the trigger gun is released.
• Manual pressure adjustment knob for fine-tuning operating pressure.
• Internal bypass passages sized to protect both pump and engine from dead-head conditions.
• Integrated downstream chemical soap injector for detergent application.
• Reduced external fittings and joints compared to standalone components.

Operation & Performance Characteristics

In operation, the XJV2G15D-F7 provides a stable 2.0 GPM flow at 1,500 PSI for
routine cleaning tasks. The axial cam design keeps the package light and
compact, while the direct-drive interface ensures that engine output translates
efficiently into hydraulic power.

• Consistent cleaning output suitable for hard surfaces, vehicles, and fixtures.
• Axial cam layout keeps weight low for portable pressure washer platforms.
• Balanced design limits vibration and contributes to smoother engine operation.
• Flow and pressure range aligned with common 5/16″ and 1/4″ hose circuits.
• Suitable for intermittent and moderate continuous-duty cycles within its class.

XJV2G15D-F7 Maintenance & Serviceability

The pump is designed to minimize routine maintenance while still offering a
clear path to rebuild when hours accumulate. The sealed oil system removes
periodic oil changes from the service schedule, and the supplied schematic
supports component-level repair when the pump reaches its rebuild interval.

• Maintenance-free crankcase—no oil change procedure in normal service.
• Serviceable wet end with replaceable valves, seals, and key wear items.
• Detailed parts diagram included to support future overhaul work.
• Rebuild window around 500 hours, depending on duty cycle and inlet conditions.
• Designed so competent service personnel can restore performance with standard tools.

Applications & Use Cases

With its compact size and vertical mounting pattern, the XJV2G15D-F7 is a
practical fit for a wide range of homeowner and light commercial machines.
It offers enough pressure to remove typical soils without oversizing the
engine, frame, or hose set.

• Driveways, walkways, and patios where routine cleaning is required.
• Siding, fencing, and building exteriors in residential settings.
• Small fleet and vehicle washdown for cars, pickups, and light trailers.
• Agricultural and hobby equipment such as ATVs, mowers, and compact tractors.
• Light commercial storefronts, shop fronts, and small maintenance bays.

Why Specify the XJV2G15D-F7

This model offers a balanced mix of cost, performance, and durability for
vertical-engine pressure washer platforms. The integrated unloader and chemical
injector reduce parts count and assembly time, while the ceramic plungers and
stainless valves support long service life when used within rated limits.
For OEMs, service centers, and distributors, it provides a straightforward
replacement option that restores performance without reworking the frame or
engine mount.

• Direct-fit solution for 3/4″ vertical-shaft gas engine pressure washers.
• Integrated functions reduce system complexity and leak points.
• Industrial-grade internal components in a compact, consumer-friendly package.
• Rebuildable architecture that extends lifecycle beyond the initial service window.
• Reliable base for WSHPWR.com customers needing a vertical-drive pump with clear specifications.
• XJV2G15D-F7 2.0 GPM 1500 PSI | F7 fits 4″ SAE J609A
