RCAM2G15E-F8-SX 2.0 GPM 1500 PSI Pump | Left-Hand 1750 RPM F8 Flange

Overview

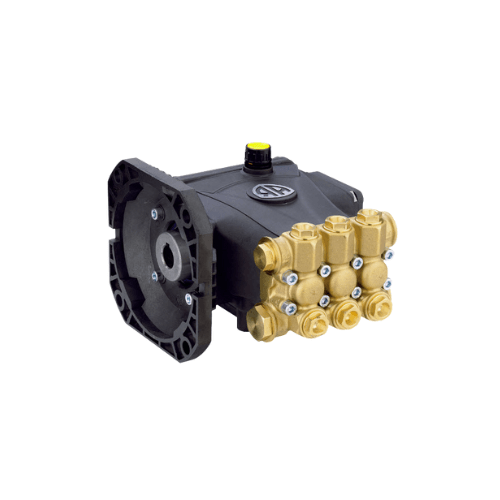

The AR RCAM2G15E-F8-SX is a compact, high-performance left-hand drive
high-pressure pump engineered for continuous-duty industrial, commercial,
and OEM cleaning systems requiring precise hydraulic output and structural
reliability in tight or mirrored layouts. Rated at 2.0 GPM and
1,500 PSI at 1,750 RPM, it is ideal for applications where
equipment geometry, multi-pump assemblies, or space constraints demand a
reversed shaft configuration for optimized motor placement and plumbing routing.

The left-hand (SX) shaft orientation enhances installation flexibility where
traditional right-hand drive pumps would create clearance issues or disrupt
system symmetry, making this model a preferred choice for balanced or
compact machinery layouts.

Key Features of RCAM2G15E-F8-SX

• 2.0 GPM at 1,500 PSI
• Left-hand (SX) drive shaft for mirrored or restricted installations
• Triplex plunger design for reduced pulsation and stable discharge pressure

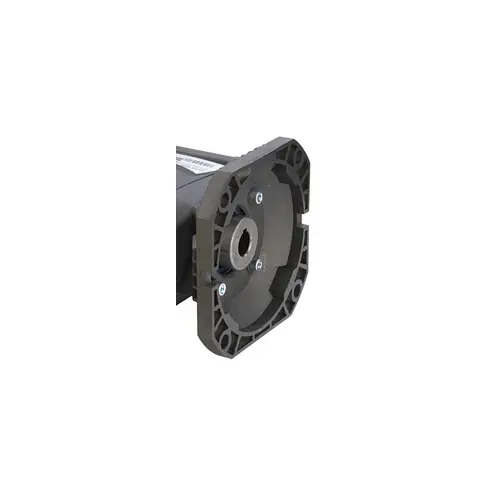

• F8 direct-mount flange for precise motor alignment

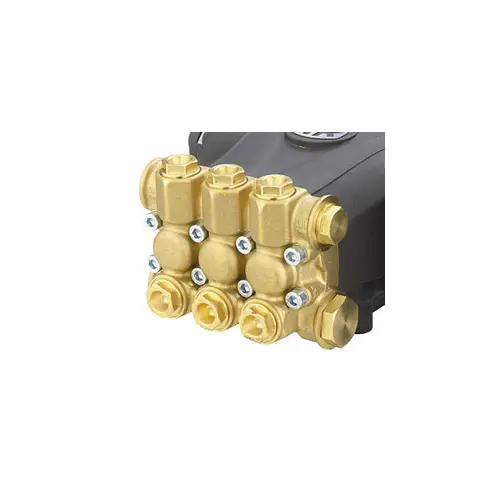

• Brass manifold engineered for corrosion resistance and long-term durability
• Ceramic plungers paired with hardened stainless-steel pistons
• Chemical- and heat-resistant seals and O-rings
• Die-cast aluminum crankcase for structural rigidity and thermal efficiency
• Splash-lubricated crankcase with sight glass for easy maintenance
• Heavy-duty bearings for smooth, long-life operation

Performance & Construction Benefits

Reliable, Stable Pressure Output

• Triplex plunger system delivers balanced motion and reduced hydraulic pulse
• Protects hoses, guns, valves, and fittings from pressure fluctuations
• Supports continuous-duty, medium-demand cleaning and process applications

High-Strength, Long-Life Components

• Brass manifold maintains structural reliability under high pressure
• Ceramic plungers resist friction, wear, temperature cycling, and abrasive fluids
• Premium elastomer seals maintain leak-free operation through repeated duty cycles

Efficient Drivetrain & Thermal Control

• Precision-ground crankshaft supported by heavy-duty ball bearings
• Die-cast aluminum crankcase dissipates heat for continuous-duty operation
• Splash-lubrication bath ensures consistent lubrication throughout the drivetrain
• Integrated sight glass allows quick oil-level inspection

Application Suitability for RCAM2G15E-F8-SX

• Commercial floor cleaning machines
• Industrial rinse stations
• Sanitation and chemical-wash systems
• Precision misting and fluid-distribution assemblies
• OEM cleaning systems with tight or mirrored layouts
• Compact automated wash platforms and mobile systems
• Process-fluid applications requiring stable, consistent pressure

Integration Advantages

• Left-hand drive allows pump placement where right-hand units cannot fit
• F8 flange mount eliminates couplers or adapter plates
• Reduces vibration and improves longevity through precise drivetrain alignment
• Supports dual-pump mirrored assemblies and symmetrical system designs

Maintenance & Reliability

• Minimal routine maintenance—primarily periodic oil changes
• Ceramic and hardened steel components extend service life
• Factory-tested for pressure accuracy, seal integrity, and mechanical tolerances

Specifications

• Model: RCAM2G15E-F8-SX
• Flow: 2.0 GPM
• Pressure: 1,500 PSI
• RPM: 1,750
• Drive: Left-hand (SX)
• Mount: F8 flange
• Manifold Material: Brass
• Plungers: Ceramic
• Pistons: Hardened stainless steel
• Crankcase: Die-cast aluminum
