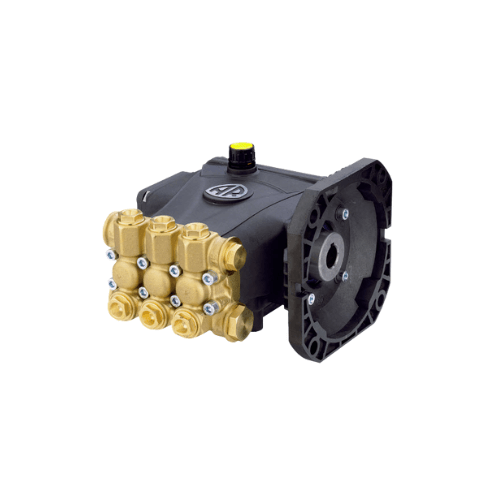

RCAM2G15E-F8 2.0 GPM 1500 PSI Pump | 1750 RPM F8 Flange

Overview

2.0 GPM, 1,500 PSI compact F8-mounted pump

• The AR RCAM2G15E-F8 is a precision-engineered high-pressure pump designed for
  continuous-duty cleaning, fluid circulation, and industrial pressure applications that require
  consistent operation, controlled hydraulic output, and long component life.
• Rated at 2.0 GPM and 1,500 PSI at 1,750 RPM, it strikes an ideal balance of
  efficiency, durability, and performance for medium-duty systems that run for long durations.
• Its compact footprint and F8 flange-mount design allow direct connection to
  compatible electric motors, supporting stable, reliable performance in OEM platforms,
  commercial cleaning systems, and built-in industrial machinery.

Key Specifications for RCAM2G15E-F8

Duty point and construction details

• Flow Rate: 2.0 GPM
• Maximum Pressure: 1,500 PSI
• Operating Speed: 1,750 RPM
• Pump Type: Triplex plunger pump (three-piston design)
• Flange Type: F8 direct electric-motor mount
• Manifold: Precision-machined brass, corrosion and fatigue resistant
• Plungers: High-polish ceramic with hardened stainless-steel pistons
• Crankcase: Die-cast aluminum with splash lubrication and oil sight glass
• Seals: Premium elastomer seals and O-rings for detergent and temperature resistance

F8 Direct-Mount Design

Compact, rigid connection to electric motors

• Integrated F8 flange interface bolts directly to compatible electric motors,
  eliminating separate couplers, brackets, and time-consuming shaft alignment work.
• Direct mounting improves power transfer and mechanical stability, reducing
  vibration and shaft deflection during continuous operation.
• The compact configuration supports tight equipment layouts in OEM enclosures,
  skid frames, and cabinet-mounted systems without sacrificing service access.

Pump Architecture

Triplex plunger design with brass head and ceramic plungers

• AR’s proven triplex plunger design delivers pulse-reduced flow and steady
  discharge pressure, protecting spray guns, valves, hoses, and downstream components from
  pressure spikes.

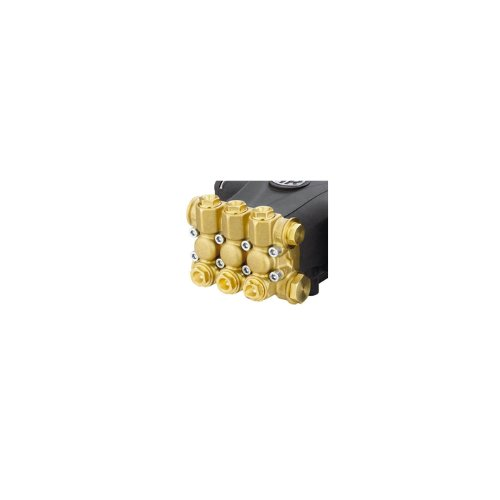

• A precision-machined brass manifold offers superior resistance to corrosion,
  chemical exposure, and mechanical fatigue, maintaining long-term sealing accuracy.
• Hardened stainless-steel pistons running in high-polish ceramic plungers
  minimize friction, resist scoring, and withstand thermal cycling for extended wear life.
• Premium elastomer seals and O-rings are formulated to handle detergents,
  temperature swings, and frequent pressurization cycles while maintaining leak-free operation.

Crankcase & Drive

Die-cast aluminum housing with splash lubrication

• The die-cast aluminum crankcase provides a strong yet lightweight housing that
  efficiently dissipates heat, supporting continuous-duty operation without overheating.
• A precision-ground crankshaft supported by heavy-duty ball bearings delivers
  smooth, low-noise mechanical motion and minimized vibration.
• The internal splash-lubrication system continuously distributes oil across
  moving parts, reducing friction and extending component life during long service cycles.
• A built-in oil sight glass allows quick visual inspection of lubricant level
  and condition, simplifying preventative maintenance.

Performance & Control

Steady 2.0 GPM low-pulsation output

• The 2.0 GPM at 1,500 PSI duty point offers efficient water usage while
  delivering sufficient power for medium-duty cleaning and rinsing tasks.
• Pulse-reduced hydraulic output helps maintain stable operating pressure and
  controlled water delivery for process-critical applications.
• Engineered for both cold water and appropriately rated hot water within AR specifications, the
  pump performs reliably in industrial, commercial, and manufacturing environments.

Typical Applications

Medium-duty continuous-use systems

• Industrial rinse systems and conveyor wash lines requiring steady output.
• Medium-scale cleaning units and sanitation equipment in plants and facilities.
• Commercial misting and spraying systems where controlled flow is critical.
• Parts washers and equipment wash systems in automotive, manufacturing, and service shops.
• Agricultural sanitation and packaging-line cleaning where reliability and longevity matter.

Service & Maintenance

Low-maintenance design for long service life

• Routine service is minimal, generally consisting of periodic oil changes and inspection
  of seals and plungers to maintain peak performance.
• Ceramic plungers, corrosion-resistant brass, and durable sealing components help
  extend maintenance intervals and reduce long-term operating cost.
• Balanced mechanical and hydraulic design supports continuous-duty cycles,
  helping reduce operator fatigue and unplanned equipment downtime.

RCAM2G15E-F8

Compact 2.0 GPM @ 1,500 PSI F8-mounted workhorse

• The RCAM2G15E-F8 combines a brass manifold, ceramic plungers, precision pistons,
  durable seals, and a direct-drive F8 flange interface to deliver stable pressure output and
  smooth hydraulic performance in continuous-use environments.
• Ideal for OEM builders, professional cleaning teams, and industrial system operators, it offers
  compact power, reliability, and efficient performance wherever steady 2.0 GPM
  low-pulsation pressure is required.
