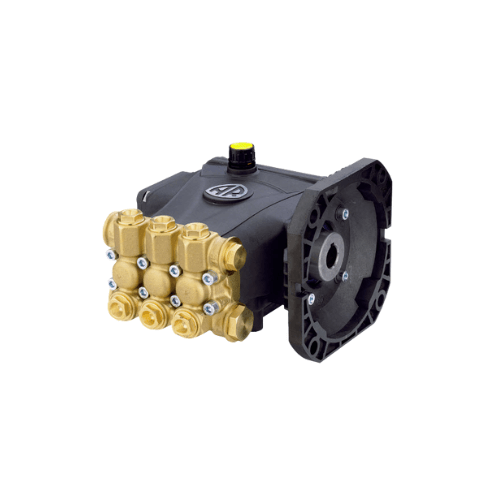

RCAM05G15E-F8 0.5 GPM 1500 PSI Pump | 1750 RPM F8 Flange

RCAM05G15E-F8

0.5 GPM, 1,500 PSI compact low-flow triplex pump

• The AR RCAM05G15E-F8 is a compact, precision-engineered high-pressure pump
  designed for applications that demand extremely consistent low-flow performance, stable pressure,
  and long-term reliability in tight system layouts.
• Delivers 0.5 GPM at 1,500 PSI while running at 1,750 RPM,
  providing an ideal balance of efficiency and power where controlled output matters more than volume.
• Ideal for fine-rinse stations, compact wash rigs, disinfecting lines, industrial misting,
  laboratory processes, automated cleaning fixtures, sterilization equipment, and OEM systems
  built around low water consumption and constrained space.

Key Specifications for RCAM05G15E-F8

Duty point and mechanical details

• Flow Rate: 0.5 GPM
• Maximum Pressure: 1,500 PSI
• Operating Speed: 1,750 RPM
• Flange Type: F8 direct electric-motor mount
• Shaft Size: 5/8 in
• Pump Type: Triplex plunger pump
• Crankcase: Die-cast aluminum with splash lubrication and oil sight glass
• Manifold: Brass, corrosion resistant
• Plungers: Ceramic-sleeved stainless-steel plungers

RCAM05G15E-F8 F8 Direct Mount

Compact flange system for tight OEM layouts

• Integrated F8 motor flange mounts directly to compatible electric motors, removing
  the need for extra brackets, plates, or custom supports.
• Direct coupling creates a rigid, vibration-controlled power path that helps extend bearing and seal
  life while improving overall alignment stability.
• Compact mechanical footprint simplifies frame and cabinet design for
  OEM integrators, enclosure builders, and panel-mounted systems.

Pump Architecture

Triplex low-pulsation hydraulic design

• Utilizes AR’s proven triplex plunger design to produce balanced, low-pulsation
  hydraulic output that protects downstream fittings, precision nozzles, and metering devices.
• Hardened stainless-steel plungers reciprocate within
  precision-machined ceramic sleeves, reducing friction, extending seal life, and
  maintaining smooth motion under long duty cycles.
• Chemical-resistant elastomer seals maintain internal sealing and consistent
  discharge pressure even with temperature swings, detergents, or frequent cycling.
• Brass manifold preserves sealing surfaces and resists deformation under sustained
  pressure, ensuring tight internal passages and stable compression.
• Die-cast aluminum crankcase provides structural rigidity and acts as a heat sink,
  while splash lubrication keeps the crankshaft and connecting components coated in oil for quiet,
  efficient operation.

Performance & Control

Stable low-flow output for precision systems

• Tuned for controlled 0.5 GPM delivery, reducing overspray, water waste, and
  downstream load in systems designed around low flow rates.
• Smooth pressure curve and low pulsation help protect misting heads, fine nozzles, dosing
  devices, and small-diameter tubing from shock and pressure spikes.
• Compatible with clean cold or warm water within AR’s rated temperature range for flexible use in
  sanitation, cooling, or process applications.

Applications

Where the RCAM05G15E-F8 excels

• Industrial misting & humidity control: climate regulation, dust suppression, and environmental control systems.
• Disinfecting & sanitizing lines: low-flow spray bars and booth systems needing precise coverage.
• Laboratory & process equipment: rinse, wash, and cooling loops in compact test or production rigs.
• Automated cleaning fixtures: robotic or enclosed washing systems where space and flow control are critical.
• Compact wash rigs: low-consumption pressure cleaning in mobile or cabinet-style systems.
• OEM integration: purpose-built machinery requiring small, quiet, and reliable hydraulic modules.

Service & Maintenance

Low cost of ownership, easy upkeep

• Oil sight glass provides quick visual confirmation of crankcase oil level and condition,
  encouraging proper preventative maintenance.
• Splash-lubricated crankcase and hardened internal components are engineered to support extended
  service intervals and reduce total cost of ownership.
• Routine care is limited to scheduled oil changes, seal inspection, and basic cleaning
  of external surfaces and inlet filtration.
• Every RCAM05G15E-F8 is factory-tested and calibrated for pressure output, sealing
  integrity, and flow accuracy to ensure immediate readiness out of the box.

Summary

Compact F8-mounted pump for precise 0.5 GPM @ 1,500 PSI

• The RCAM05G15E-F8 combines a compact F8 direct-mount footprint, brass manifold,
  ceramic plungers, and a 5/8 in shaft to deliver precise low-flow hydraulic performance in space-limited
  systems.
• Its low-pulsation triplex design, durable materials, and OEM-friendly configuration make it an
  excellent choice for industrial misting, sanitizing, specialized wash modules, and automated equipment
  where small-scale yet powerful and stable pressure output is essential.
