XM15.15-HYD 4.0 GPM 2000 PSI Hydraulic Pump | F38 Mount

XM15.15-HYD Hydraulic Triplex Plunger Pump

Overview

• Hydraulic-driven triplex plunger pump engineered for industrial, agricultural, and professional cleaning systems.
• Delivers 4.0 GPM at 2,000 PSI through an F38 hydraulic flange mount.
• Designed for continuous-duty environments where hydraulic power is preferred.
• Optimized for mobile equipment, service vehicles, municipal rigs, and stationary wash systems.

Core Construction

• Triplex plunger configuration with three solid ceramic plungers.

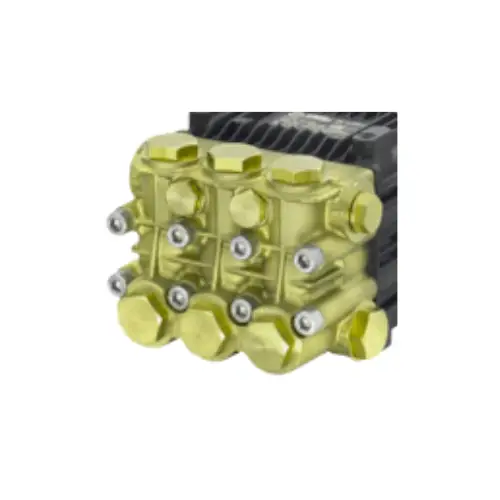

• Solid brass manifold for corrosion resistance and pressure stability.
• Stainless steel valves for fast, consistent reseating.
• Die-cast aluminum crankcase with integrated cooling fins.
• Hardened steel crankshaft supported by oversized bearings.

Hydraulic Drive Interface

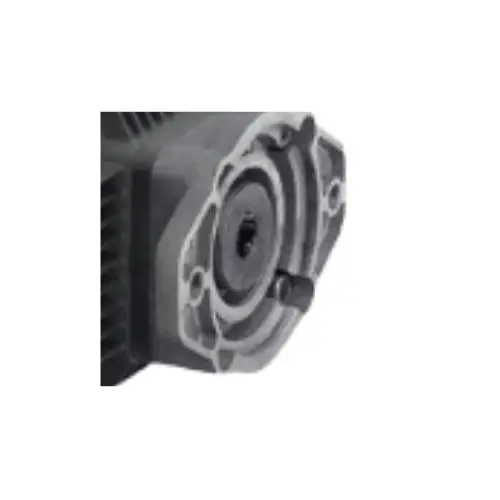

• F38 hydraulic flange mount for direct hydraulic motor coupling.
• Eliminates belts, pulleys, and gearboxes.
• Maximizes torque transfer efficiency.
• Maintains precise shaft alignment.
• Reduces vibration and mechanical wear.

Lubrication & Cooling

• Oil bath lubrication system for continuous internal protection.
• Sight glass for quick visual oil inspection.
• Cooling fins improve heat dissipation during extended operation.

Performance Characteristics

• Smooth, low-pulsation water delivery.
• Low vibration to protect hoses and downstream components.
• Efficient hydraulic power conversion.
• Designed for extended runtime and continuous-duty use.

Factory Validation

• Pressure-tested for output accuracy.
• Flow-tested for consistency.
• Seal integrity verified prior to shipment.

XM15.15-HYD 4.0 GPM 2000 PSI Hydraulic Pump | F38 Mount

Key Specifications

• Flow Rate: 4.0 GPM
• Maximum Pressure: 2,000 PSI
• Drive Type: Hydraulic-driven triplex plunger
• Mount Type: F38 hydraulic flange
• Plungers: Solid ceramic
• Manifold: Brass
• Valves: Stainless steel
• Crankcase: Die-cast aluminum
• Duty Rating: Continuous-duty

Typical Applications

• Fleet and heavy equipment wash systems.
• Municipal cleaning rigs and service vehicles.
• Agricultural machinery and barn washdown systems.
• Construction site mobile cleaning equipment.
• Trailer- and skid-mounted hydraulic wash systems.

Maintenance & Serviceability

• Routine oil level checks via sight glass.
• Periodic inspection of seals and valves.
• Requires clean hydraulic fluid for optimal performance.
• Compatible with AR service and seal kits.

Why Choose XM15.15-HYD

• Hydraulic operation eliminates need for engines or electrical supply.
• Heavy-duty materials support long service life.
• Low pulsation for smoother and quieter operation.
• Compact design for vehicle, skid, and trailer installations.
• Built for industrial, agricultural, and municipal duty cycles.
