RCAM025G15EF8-SX | 0.25 GPM 1500 PSI Left-Drive Pump F8 Flange

RCAM025G15EF8-SX

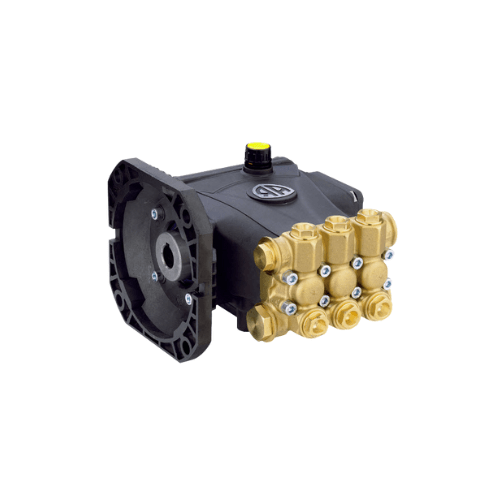

The Annovi Reverberi RCAM025G15EF8-SX is a precision-engineered micro triplex plunger pump designed for compact OEM systems that require highly controlled low-flow delivery, stable pressure performance, and dependable operation in restricted installation spaces. Producing 0.25 GPM at 1,500 PSI while running at 1,750 RPM, this left-drive configuration provides layout flexibility for mirrored system designs, enclosure optimization, and applications where a standard right-hand shaft would interfere with plumbing or mounting geometry.

Its F8 direct-mount flange enables alignment-free coupling to compatible motors, reducing noise, vibration, and long-term wear while delivering a rigid, compact installation footprint.

Key Specifications of RCAM025G15EF8-SX

• Flow Rate: 0.25 GPM
• Maximum Pressure: 1,500 PSI
• Operating Speed: 1,750 RPM
• Drive Orientation: Left-drive
• Mount Type: F8 direct-mount flange
• Pump Type: Triplex plunger pump
• Manifold Material: Brass
• Plungers: Ceramic with hardened stainless-steel pistons
• Crankcase: Die-cast aluminum

Advanced Features

Low-Flow, High-Pressure Precision Output

• Engineered for extremely controlled water delivery
• Minimal pulsation protects delicate downstream components
• Ideal for micro-misting, precision rinse, and dosing systems

Triplex Plunger Mechanism

• Balanced action provides smooth hydraulic performance
• Precision-ground ceramic plungers reduce wear and heat
• Hardened stainless-steel pistons ensure long sealing life

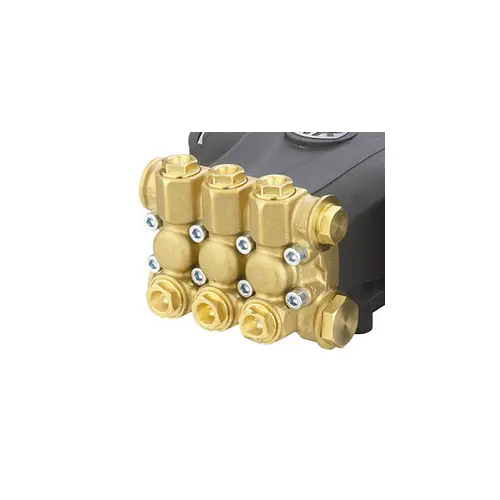

Brass Manifold Construction

Maintains dimensional stability, corrosion resistance, and leak-free performance under continuous high-pressure use.

Left-Drive Shaft Orientation

• Allows mirrored pump layouts and compact enclosure designs
• Prevents interference with plumbing, cabling, or structural panels
• Improves OEM flexibility in multi-pump systems

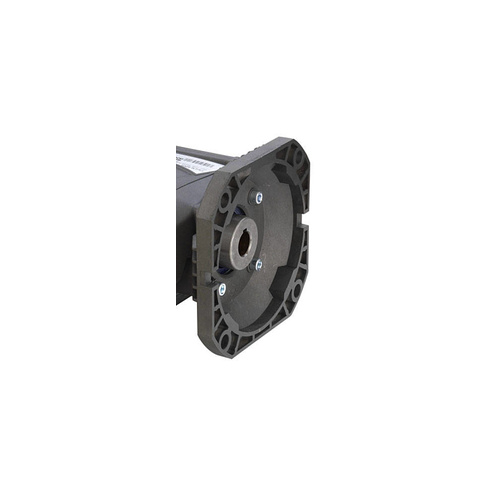

RCAM025G15EF8-SX F8 Direct-Mount Flange

• Direct motor-to-pump coupling eliminates alignment issues
• Reduces vibration and start-up noise
• Simplifies installation while improving long-term stability

Durable Internal Components

• Premium elastomer seals withstand heat, chemicals, and detergents
• Heavy-duty ball bearings stabilize crankshaft rotation
• Precision-machined crankcase supports smooth, low-noise operation

Cooling & Lubrication System

• Splash-lubrication continuously coats bearings and moving parts
• Die-cast aluminum housing improves heat dissipation
• Sight glass allows quick oil-level inspection

Applications

This micro high-pressure pump is ideal for ultra-controlled low-flow systems, including:

• Micro-misting and humidity-control systems
• Precision lab and clean-room rinse equipment
• Sterilization and surgical wash systems
• Compact OEM cleaning modules
• Environmental control cabinets
• Food-environment micro-spray systems
• Sanitation and controlled dosing applications

Benefits of RCAM025G15EF8-SX

• Exceptionally stable pressure output at minimal flow
• Compact footprint for tight OEM installations
• Low vibration and reduced pulsation
• Long service intervals due to hardened internal components
• Reliable sealing in temperature- and chemical-variable environments

Maintenance

• Periodic oil changes
• Occasional seal inspection
• Designed for extended service life in controlled-duty cycles

Quality Assurance

Each RCAM025G15EF8-SX is factory pressure-tested and calibrated to ensure reliable sealing, accurate pressure output, and zero-leak performance before shipment.

Conclusion

Combining ceramic plungers, a durable brass manifold, hardened internal drive components, and an F8 left-drive flange-mount configuration, the RCAM025G15EF8-SX delivers highly stable low-flow hydraulic performance, compact mechanical integration, and long-term reliability for demanding OEM, industrial, and technical micro-pressure applications.
