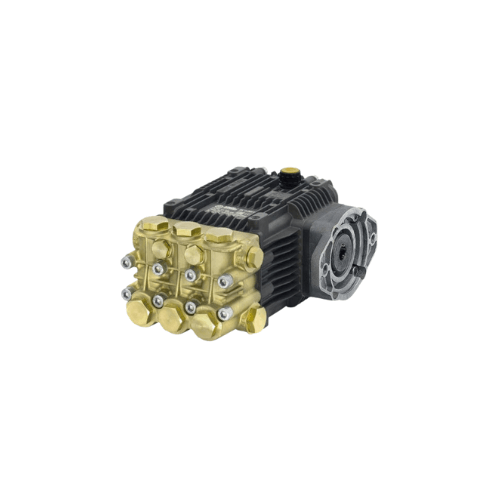

RKA36G25E-F38 — 3.6 GPM 2500 PSI Hydraulic-Drive Triplex Pump, F38 Flange

• Hydraulic-drive triplex plunger pressure pump engineered for industrial, agricultural, and mobile cleaning systems where hydraulic power is already available.
• Rated to deliver 3.6 gallons per minute at 2,500 PSI, providing a balanced combination of flow and pressure for medium- to heavy-duty cleaning tasks.
• Designed to operate at 1,750 RPM, reducing heat generation, internal wear, and noise compared to high-speed pump designs.

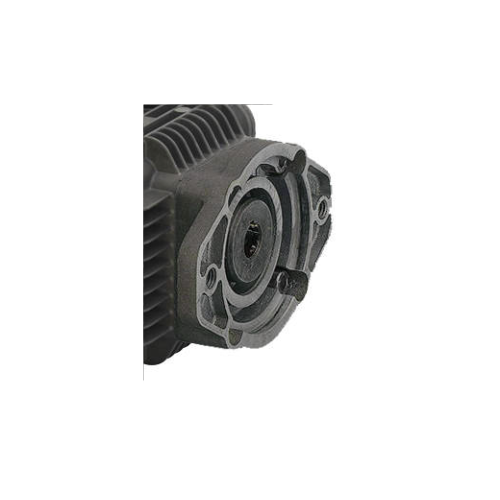

• F38 hydraulic motor flange allows direct integration with standard hydraulic motors, eliminating complex couplers or belt-drive assemblies.
• Well-suited for service trucks, agricultural machinery, wash skids, and industrial equipment that rely on centralized hydraulic power systems.
• Triplex plunger architecture ensures smooth, stable output for consistent cleaning performance under varying load conditions.

Key Specifications RKA36G25E-F38

• Model: RKA36G25E-F38.
• Rated Flow Output: 3.6 GPM.
• Maximum Operating Pressure: 2,500 PSI.
• Nominal Operating Speed: 1,750 RPM.
• Drive Interface: F38 hydraulic motor flange mount.
• Pump Design: Triplex plunger configuration for balanced mechanical loading.
• Manifold Construction: Precision-machined brass with optimized internal flow passages.
• Plungers: Solid ceramic for abrasion resistance and thermal stability.
• Pistons: Stainless steel for corrosion resistance and mechanical strength.
• Crankcase: Aluminum housing with integrated lubrication system.
• Lubrication: Splash lubrication with oil sight glass for easy monitoring.

Key Features & Benefits

• RKA36G25E-F38 Direct F38 flange mounting simplifies system layout by allowing the pump to bolt directly to a hydraulic motor.
• Eliminates the need for belts, pulleys, or external gearboxes, reducing mechanical complexity and maintenance points.
• Triplex plunger design minimizes pressure pulsation, protecting downstream components such as hoses, guns, valves, and nozzles.
• Ceramic plungers provide exceptional resistance to abrasion, heat, and chemical exposure commonly found in agricultural and industrial environments.
• Brass manifold resists corrosion from detergents, fertilizers, and wash chemicals while maintaining structural stability.
• Optimized internal flow paths reduce pressure loss and improve volumetric efficiency.
• Low-speed 1,750 RPM operation reduces bearing loads and seal wear, extending overall service life.
• Aluminum crankcase supports effective heat dissipation during extended run cycles.
• Integrated oil sight glass allows quick visual inspection of oil condition without disassembly.
• Designed for consistent performance in systems where hydraulic speed and pressure may vary.

RKA36G25E-F38 3.6 GPM 2500 PSI Hydraulic Pump | F38 Flange

Typical Applications

• Hydraulic-powered mobile wash trailers and service vehicles used in fleet maintenance.
• Agricultural sprayers, livestock facility cleaning systems, and farm equipment wash stations.
• Construction equipment cleaning and jobsite washdown operations.
• Industrial maintenance rigs requiring reliable medium-pressure cleaning capability.
• Hydraulic systems on tractors, loaders, and utility vehicles that need integrated pressure washing.
• Facilities where electrical power is limited but hydraulic power is readily available.
• General-purpose industrial and agricultural wash systems requiring durability and consistent output.
