MV610-38 | Safety Valve, 3/8 in Male, 145 PSI Set Pressure

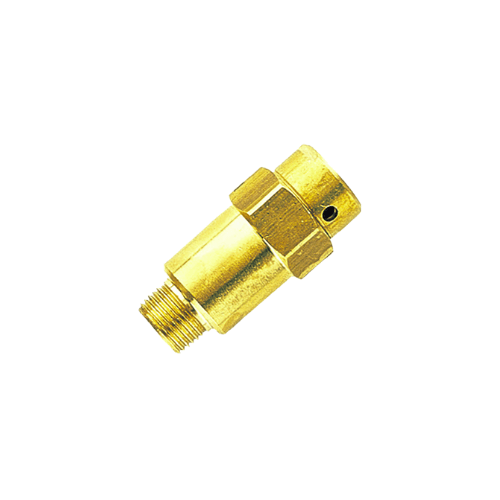

MV610-38 Safety Valve

Product Configuration

• MV610-38 is a compact safety relief valve engineered for automatic overpressure protection in low- to medium-pressure water or air circuits.
• Factory-calibrated opening setpoint is 145 PSI for repeatable relief behavior without field adjustment.
• Automatic reseat function restores a tight seal as pressure returns to the normal operating range.
• 3/8″ male NPT connection supports direct installation on manifolds, distribution headers, or dedicated safety branches.
• Compact form factor supports integration into tight skids, mobile carts, and equipment enclosures where space is limited.

MV610-38 Pressure Protection Function

Relief and Reseat Behavior

• Opens when system pressure exceeds 145 PSI to vent excess fluid or air and stabilize line pressure.
• Helps protect pumps, hoses, fittings, seals, gaskets, manifolds, and downstream components from overpressure damage.
• Reseats automatically after relief to maintain system integrity during standby operation.
• Acts as a final safeguard that complements unloaders, regulators, and control systems in the overall protection stack.
• Helps reduce risk related to blockage, mis-adjustment, or control failure by providing autonomous relief action.

Construction and Performance

Materials and Internal Build

• Brass body specification supports corrosion resistance and long service life in wet environments.
• Stainless-steel internal components support spring stability and seat geometry through repeated cycling.
• Precision-machined seat and guided spring support consistent crack pressure and smooth relief action.
• Fast reseating behavior supports leak-free standby performance when operating within normal pressure range.
• Compact, lightweight assembly supports reliable performance without adding unnecessary mass to small frames.

MV610-38 Installation Notes

Mounting and Discharge Practices

• Install using standard thread sealant practices to achieve a leak-free NPT joint.
• Orient discharge to a safe area or to an approved return path based on the system design.
• Avoid placing the valve immediately after sharp elbows where dynamic loading can increase stress at the valve inlet.
• Support plumbing to avoid side-load on the valve body and threads in mobile or vibration-prone equipment.
• Perform a functional check during commissioning to confirm opening response and clean reseat behavior.

Applications

Typical Use Cases

• Compact pressure washers requiring 145 PSI relief protection in auxiliary or low-pressure circuits.
• Booster and transfer pump systems where line protection is required to protect hoses and fittings.
• Small irrigation loops and utility water distribution branches operating near the setpoint.
• Air-handling and utility manifolds requiring repeatable overpressure venting at 145 PSI.
• General water or air circuits where compact, factory-set overpressure protection is specified.

Maintenance

Service Expectations

• Keep the discharge path unobstructed to ensure relief flow can exit safely during an overpressure event.
• Inspect periodically for scale, debris, or residue near the seat area that could affect sealing.
• Flush systems operated on mineral-rich water to reduce buildup that can affect moving components.
• Include the valve in scheduled PM checks alongside regulators, unloaders, and gauges.
• Replace components per site maintenance standards if relief behavior becomes inconsistent or reseat leakage is observed.

Operational Standardization

MV610-38 Factory-Set Control

• Factory preset at 145 PSI supports consistent performance across multiple installations and repeatable OEM builds.
• Eliminates field adjustment variability and reduces commissioning time in standardized equipment packages.
• Supports predictable protection behavior for equipment builders and maintenance teams operating multiple units.
• Materials and construction intent support dependable relief cycling with minimal upkeep.
• Connection and footprint intent support fast integration into existing plumbing layouts without major rework.
