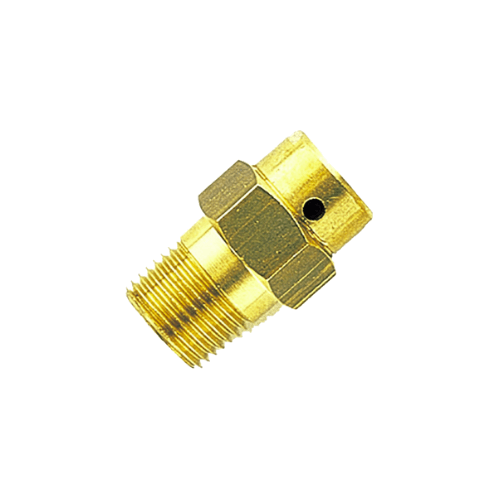

MV610-12 | Safety Valve, 1/2 in Male, 145 PSI Set Pressure

MV610-12 Safety Valve Overview

The AR MV610-12 is a compact, precision-calibrated safety valve preset to open at 145 PSI, providing automatic overpressure protection for low- to medium-pressure water and air systems. Its 1/2 in male NPT connection allows fast, universal installation on pump manifolds, tanks, and distribution lines.

Designed to vent excess pressure instantly and reseat cleanly once pressure stabilizes, the MV610-12 protects pumps, hoses, seals, filter housings, and other system components from pressure spikes and damage.

Key Features

• Factory-set 145 PSI relief pressure
• 1/2 in male NPT threaded connection
• Automatic pressure release and clean reseating
• Compact design fits tight system layouts
• Brass body with stainless-steel internal components
• Suitable for water or air service within rated limits

Construction & Durability

The MV610-12 is built from corrosion-resistant brass and engineered for stable, repeatable operation under cycling, vibration, and temperature variation. Its stainless-steel internals maintain spring force and seat integrity over long service intervals.

Durability Benefits

• Corrosion-resistant brass housing
• Stainless-steel spring and guided components
• Precision-machined seat for smooth relief action
• Leak-tight reseating after each relief event

Performance & Operation

When system pressure rises above 145 PSI, the valve opens immediately to discharge excess water or air. As pressure returns to a safe operating level, the spring-loaded mechanism reseats automatically to restore a sealed system.

Because it operates independently of unloaders or electronic controls, the MV610-12 provides a critical final layer of safety if adjustment errors, blockages, or control failures cause pressure to rise unexpectedly.

Performance Advantages

• Fast response to overpressure conditions
• Consistent crack pressure for predictable system protection
• Low turbulence and minimal chatter during relief
• Supports stable system operation and equipment longevity

Installation & Compatibility

The 1/2 in male NPT port allows quick installation on pump heads, compressor receivers, discharge headers, and auxiliary safety ports. Its compact footprint supports use on mobile systems, compact skids, and wall-mounted frames.

Installation Highlights

• Standard NPT threads fit common manifolds and tanks
• Orient discharge toward a safe vent area or return path
• Use thread sealant to ensure a leak-free joint
• Avoid mounting directly after sharp bends to reduce dynamic load

Maintenance

The valve requires minimal upkeep. Keeping the discharge path clear and preventing debris buildup ensures crisp opening and proper reseating.

Maintenance Tips

• Inspect discharge port for blockages
• Check for scale or debris around the seat area
• Flush system periodically in mineral-rich environments
• Confirm sealing integrity during routine service checks

Applications

• Booster and transfer pumps
• Low-pressure wash systems
• Air tanks and compressor systems
• Utility water manifolds
• Auxiliary safety relief circuits

Professional Advantages

The AR MV610-12 enhances system safety, protects components from fatigue, and reduces costly failures caused by overpressure events. Its accurate factory calibration, compact size, and reliable reseating make it a dependable addition to water and air systems in commercial and industrial environments.
