MV40016 Chemical Injector 1.6 mm | 4060 PSI MV Line Chem

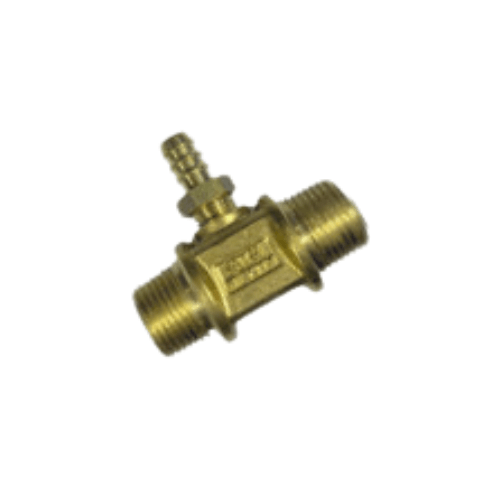

MV40016 Fixed Chemical Injector (1.6 mm, 4,060 PSI)

• Fixed-ratio Venturi chemical injector engineered for consistent detergent draw and repeatable dilution in professional pressure washing systems.
• Built around a 1.6 mm orifice to support steady suction performance in approximately 2.0–4.5 GPM operating ranges where predictable soap delivery matters.
• Rated to 4,060 PSI for use on commercial-grade equipment where reliability, uptime, and controlled chemical use are required.
• Designed for skid builds, cart units, and wall-mounted wash stations that need simple, stable chemical injection without field adjustments.

Chemical Injection Method

MV40016 Venturi-Based Draw for Controlled Mixing

• Uses a Venturi restriction to create a low-pressure zone that pulls chemical from a container into the water stream when the system is in low-pressure mode.
• MV40016 Fixed-orifice geometry establishes a consistent draw characteristic, supporting uniform detergent dosing across multiple operators and repeat service cycles.
• Stable draw behavior improves cleaning repeatability by reducing over-application, under-application, and inconsistent dwell times caused by fluctuating chemical feed.
• Predictable Venturi performance simplifies training and standardizes results across fleets, bays, and multi-operator environments.

MV40016 Fixed-Ratio Operation for No-Fuss Consistency

• Fixed-ratio design eliminates adjustment knobs and field tuning, reducing failure points and preventing unwanted setting changes in day-to-day operation.
• Supports consistent dilution when paired with proper low-pressure soap tips and a correctly sized suction hose and strainer.
• Reduces decision-making at the gun, allowing operators to focus on application technique, coverage, and rinse quality.
• Helps control chemical spend by keeping dosing behavior stable, especially in high-frequency wash programs and scheduled facility cleaning.

System Integration and Performance

Flow Range Compatibility and Pressure Management

• Optimized for roughly 2.0–4.5 GPM systems where a properly sized injector maintains reliable draw without excessive pressure loss.
• Designed to minimize pressure drop in normal operating conditions so the pump can maintain usable working pressure at the nozzle during rinse cycles.
• Best performance is achieved when the injector is matched to pump output, hose length, nozzle size, and the intended chemical mode (soap vs. rinse).
• Supports stable transitions between low-pressure application and high-pressure rinsing, reducing inconsistent draw behavior and improving operator efficiency.

Check Valve Function for Backflow Prevention

• MV40016 Integrated check valve prevents reverse flow into the chemical line, protecting the suction circuit from contamination and unintended dilution.
• Reduces risk of chemical container pressurization and helps maintain prime and responsiveness when switching back into soap mode.
• Supports safer operation by limiting chemical migration into upstream components when the system is shut down or pressure conditions change.
• Improves reliability in multi-nozzle and manifolded setups where backflow conditions can occur during mode changes.

Construction and Durability

Material Selection for Chemical and Jobsite Exposure

• Brass body provides durability for repeated handling, vibration, and daily use on professional equipment.
• Stainless-steel internal components are selected for resistance to corrosion and wear in detergent environments where lesser materials can degrade.
• Smooth internal bore supports flow efficiency by reducing turbulence that can contribute to wear and inconsistent draw behavior over time.
• Compact form factor supports installation on tight skids and inside cabinets without forcing compromised hose routing or inaccessible service positions.

Design Details That Support Long Service Life

• MV40016 Fixed geometry reduces moving parts and minimizes sensitivity to vibration and impact typical of mobile rigs and trailer-mounted systems.
• Robust construction supports frequent thermal cycling and pressure cycling typical of commercial wash routines.
• Service-friendly layout supports quick replacement in the field if a system is operating in demanding environments or with aggressive detergents.
• Appropriate for standardized builds where consistent component specification is required across multiple machines.

Operation and Maintenance

How to Achieve Reliable Chemical Draw

• Chemical draw is typically engaged using a low-pressure soap nozzle or downstream chemical mode that allows the Venturi to create the suction condition.
• High-pressure tips generally stop chemical draw by increasing backpressure, returning the system to rinse-only operation.
• Reliable draw depends on proper installation orientation, a sealed suction line, and a clean strainer to prevent air leaks that interrupt suction.
• Consistent results require matching the injector size to the pump’s actual flow output and the nozzle sizes used in the field.

Routine Care to Protect Performance

• Flush clean water through the MV40016 injector and suction line after detergent use to prevent crystallization, residue buildup, and check-valve sticking.
• Inspect suction hose, strainer, and fittings for pinholes or loose connections that can introduce air and reduce chemical draw.
• Keep chemical containers clean and avoid drawing sediment into the injector to protect internal sealing surfaces and maintain stable suction.
• Replace worn strainers and suction tubing proactively in high-use environments to maintain repeatable performance.

Technical Specifications

• Model: MV40016
• Type: Fixed-ratio Venturi chemical injector
• Orifice: 1.6 mm
• Maximum Pressure: 4,060 PSI
• Recommended System Range: Approximately 2.0–4.5 GPM (application dependent)
• Body Material: Brass
• Internal Components: Stainless steel
• Protection: Integrated check valve for backflow prevention

MV40016 Typical Industrial and Commercial Applications

• Vehicle wash and detailing bays requiring repeatable soap application and fast changeover to rinse modes.
• Facility maintenance programs for exterior cleaning, loading areas, dumpster pads, sidewalks, and building wash-down.
• Mobile wash rigs for light equipment cleaning, fleet touch-ups, and service calls where consistent dosing reduces chemical waste.
• Small commercial pressure washer systems used for scheduled cleaning in retail, property management, and service operations.
• Wash stations supporting general cleanup where uniform detergent draw improves dwell time control and cleaning consistency.
