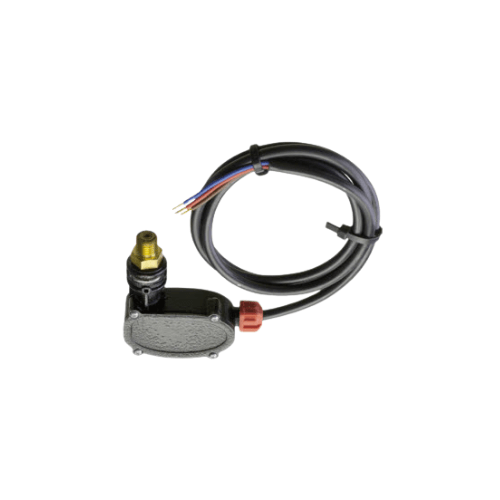

The PS6014 is a high-pressure brass/plastic/stainless-steel pressure switch
engineered for use in professional pressure washer systems, particularly in
hot-water coil applications where automatic control, system safety, and reliable
burner management are critical. Designed for industrial-duty performance, the
PS6014 is rated for a maximum system pressure of 4,060 PSI and features a
standard 1/4″ male NPT pressure-sensing port that allows it to be easily
installed directly into high-pressure discharge plumbing.

This switch is purpose-built to monitor discharge pressure and automatically
control electrical circuits based on real-time system demand. As pressure rises
and falls, the internal diaphragm and micro-switch mechanism open or close the
control circuit, allowing components such as burners, solenoids, heating coils,
and control relays to operate only when safe operating conditions are present.
With its rugged construction, industrial electrical rating, and compact form
factor, the PS6014 is widely trusted in OEM equipment, commercial washer systems,
and custom-built hot-water rigs.

• Heavy-duty pressure switch rated for up to 4,060 PSI
• Standard 1/4″ male NPT/NPTF inlet for direct installation in discharge plumbing
• Electrical rating: up to 250 VAC, 16 A for direct control of burners, solenoids, and relays
• Activation pressure: approximately 363 PSI
• Maximum fluid temperature: 167 °F (75 °C)
• Compact body design with integrated wiring lead (~45″) for clean installations

Function & Operation

The PS6014 operates by continuously monitoring the discharge pressure of a
pressure washer system. When the operator opens the trigger gun, water begins to
flow through the system and pressure builds in the discharge line, heating coil,
or coil bypass loop. Once pressure exceeds the activation threshold of
approximately 363 PSI, the internal diaphragm actuates the micro-switch,
closing the electrical circuit.

This closed circuit typically enables system components such as the burner,
heating element, solenoid valve, or control relay. In hot-water pressure washers,
this means the burner will only activate when sufficient pressure and flow are
present, preventing dry firing, overheating, and damage to heating coils. When
the trigger gun is released and system pressure drops below the activation point,
the switch resets, opening the circuit and shutting down the burner or diverting
water through the bypass system.

This automatic, pressure-based control logic creates a safe and efficient
demand-driven heating system. It protects critical components, improves energy
efficiency, and ensures that heat is only applied when the system is in proper
operating conditions.

Operating Conditions & Safety

• Controlled activation pressure: 363 PSI ensures adequate flow before heat engagement
• High-pressure capacity: 4,060 PSI maximum rating provides a wide safety margin
• Hot-water compatibility: Suitable for systems operating up to 167 °F fluid temperature
• Electrical durability: 250 V / 16 A contacts allow direct control in many systems

Construction & Materials

The PS6014 is constructed using a combination of durable brass, stainless steel,
and high-strength engineered plastic components. This hybrid construction
provides excellent resistance to corrosion, thermal stress, and mechanical
fatigue while maintaining a compact and lightweight form factor.

Internally, the pressure-sensing diaphragm and micro-switch assembly are designed
for repeated cycling in high-pressure environments. This makes the PS6014
suitable for continuous-duty commercial use, frequent on/off cycles, and
demanding industrial washdown applications.

The 1/4″ male NPT inlet allows the switch to be installed directly into
standard pressure washer plumbing without special adapters. Its compact molded
housing makes it easy to integrate into tight spaces within cabinets, skids,
trailers, or enclosed control boxes, making it ideal for OEM integration as well
as retrofit installations.

Installation & Mounting

• Install on the high-pressure discharge line after the pump or unloader valve
• Use proper thread sealant and ensure correct orientation during installation
• Wire the integrated lead in series with the burner or heater control circuit
• Commonly used alongside flow switches and temperature sensors for layered safety control
• Ensure adequate flow before heat activation to protect coils and heating elements
• Periodically inspect the sensing port for debris or mineral buildup

Typical Applications

The PS6014 is widely used in commercial and industrial hot-water pressure washer
systems where automatic pressure-based control is required. It is ideal for
systems that use heating coils, burners, or immersion heaters and must ensure
that heat is only applied when sufficient pressure and flow conditions exist.

This makes the PS6014 a critical safety and control component in systems that
require reliable automation, component protection, and consistent performance.
It is commonly found in OEM-manufactured washers, trailer rigs, skid-mounted
systems, and custom-built pressure washer platforms.

• Hot-water pressure washers with coil or boiler heating systems
• Trailer-mounted commercial wash rigs
• Skid-mounted industrial wash systems
• Fleet wash and facility cleaning bays
• OEM pressure washer manufacturing
• Industrial maintenance and degreasing systems
• High-pressure rinse and sanitation equipment

System Integration Benefits

Integrating the PS6014 into a hot-water pressure washer system significantly
improves operational safety and equipment longevity. By preventing burner
activation without sufficient pressure and flow, it protects heating coils from
thermal damage, reduces scaling, and minimizes system stress. This leads to lower
maintenance costs, longer component life, and more reliable daily operation.

From an operational standpoint, the pressure-based activation ensures that energy
is only consumed when the system is actively in use. This improves overall
efficiency and reduces unnecessary fuel or electrical consumption, especially in
high-duty-cycle commercial applications.

Specifications – PS6014

• Model: PS6014
• Switch type: Pressure-actuated micro-switch
• Maximum pressure rating: 4,060 PSI (280 bar)
• Activation pressure: ~363 PSI (approx. 25 bar)
• Maximum fluid temperature: 167 °F (75 °C)
• Connection: 1/4″ male NPT / NPTF inlet
• Electrical rating: 250 V AC, 16 A
• Materials: Brass, plastic, stainless steel body and internals
• Cable length: approx. 45″ (114 cm)
• Typical use: Hot-water pressure washers, burner control, coil systems, automated wash rigs

The PS6014 Pressure Switch is a critical control and safety component for
professional hot-water pressure washer systems. Its combination of high-pressure
capacity, reliable switching performance, compact design, and industrial-grade
construction makes it a dependable choice for OEM builders, service technicians,
and system integrators who demand safe, automated, and long-lasting performance
from their equipment.
