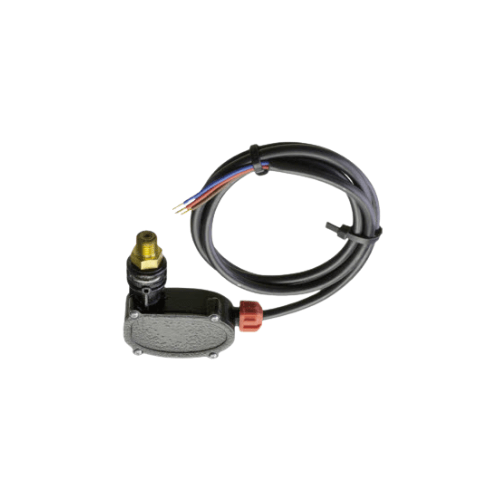

PS6030 Pressure Switch 3/8 Inch | 2.5 GPM 4060 PSI

PS6030 Pressure Switch 3/8 Inch | 2.5 GPM 4060 PSI

The PS6030 pressure switch is a professional-grade control device engineered for industrial and commercial pressure washer systems where precise pressure monitoring, burner activation control, and coil protection are critical. Designed for use in demanding environments such as hot-water pressure washers, skid-mounted systems, trailer rigs, and OEM machine builds, the PS6030 delivers consistent performance under high pressure, elevated temperatures, and frequent cycling conditions.

Rated for operating pressures up to 4,060 PSI (280 bar) and fluid temperatures up to 167°F (75°C), the PS6030 provides reliable demand-based switching to ensure that burners, heating coils, solenoids, and control relays activate only when safe operating pressure is achieved. This controlled switching sequence not only enhances system safety but also improves energy efficiency, protects heating components, and extends overall equipment life.

With its rugged brass, stainless steel, and engineered polymer internal construction, along with standard 1/4-inch or 3/8-inch inlet port options and an integrated wiring lead, the PS6030 offers straightforward installation, dependable performance, and long service life. It is a trusted solution for professional contractors, OEM builders, service technicians, and industrial facility maintenance teams.

• Heavy-duty pressure switch rated for the full commercial pressure range up to 4,060 PSI.
• Fluid temperature rating up to 167°F, making it suitable for hot-water pressure washer systems.
• Standard inlet port sizes available in 1/4-inch or 3/8-inch male configurations for easy integration.
• Electrical rating of 250 V AC, 16 A, compatible with burner coils, solenoids, and control circuits.
• Integrated wiring lead approximately 45 inches long for flexible mounting in cabinets, skids, trailers, and control boxes.

Function & Operation

The PS6030 pressure switch monitors the high-pressure discharge line of a pressure washer system and provides a demand-based electrical signal that controls burner operation, solenoid activation, or coil loop engagement. This ensures that heat is applied only when water flow and pressure are present, preventing overheating, dry-firing, and unnecessary energy consumption.

When the pressure washer trigger gun is closed and flow is halted, system pressure decreases and the internal diaphragm holds the electrical contacts in the “off” position. In this state, the burner and heating components remain de-energized, allowing water to bypass safely. When the operator pulls the trigger and water begins flowing, system pressure increases. Once the preset activation threshold is reached, the diaphragm deflects, actuating the internal microswitch and completing the electrical circuit.

This electrical signal energizes the burner or solenoid valve, allowing fuel flow and ignition in hot-water machines or activating other system controls. When the trigger is released, pressure drops below the activation point, and the switch automatically resets, interrupting the circuit and shutting down the burner or diverting water to bypass. This automatic cycling ensures consistent operation without manual intervention and protects critical heating components from damage.

Typical Activation Sequence

• Gun open / trigger pulled: System pressure rises → pressure switch activates → burner or coil is energized.
• Gun closed / flow stops: Pressure drops → switch resets → burner de-energizes, water returns to bypass.
• Automatic reset: The cycle repeats seamlessly with each trigger pull, requiring no manual reset.

Construction & Durability

Designed for harsh commercial and industrial environments, the PS6030 features a rugged construction that combines brass, stainless steel, and high-strength engineered polymers. These materials provide excellent resistance to corrosion, heat, vibration, and pressure fatigue. The result is a pressure switch capable of delivering consistent performance through thousands of operating cycles in demanding applications.

The inlet port threads directly into the high-pressure discharge plumbing, minimizing the number of fittings and reducing potential leak points. Its compact form factor allows for installation in tight spaces commonly found in pressure washer cabinets, trailer frames, skid assemblies, and control enclosures. Internally, the diaphragm and contact assembly are precision-engineered to maintain consistent activation points and reliable electrical switching over extended service intervals.

• Brass, stainless steel, and engineered polymer internals provide excellent durability and corrosion resistance.
• Standard port sizing simplifies replacement and integration into existing plumbing systems.
• Compact footprint allows installation in confined equipment compartments and control panels.

Integration & Typical Use Cases

The PS6030 pressure switch is ideally suited for commercial and industrial pressure washer systems that require dependable burner control and pressure-based activation. It is commonly used in hot-water pressure washers, trailer-mounted wash rigs, skid-mounted systems, fleet washing stations, parts-cleaning equipment, and custom OEM machinery. Its robust pressure and temperature ratings allow it to perform reliably in applications involving frequent cycling, sustained operation, and elevated thermal loads.

Because of its versatility, the PS6030 is equally effective in new machine builds and retrofit applications. Technicians and equipment builders value its consistent activation characteristics, ease of installation, and dependable electrical performance. Whether used in mobile wash units, industrial maintenance operations, or manufacturing environments, the PS6030 helps maintain safe, efficient, and repeatable system operation.

• Hot-water pressure washers: Cabinet units, skid systems, trailer rigs, and custom OEM builds.
• Industrial fleet wash bays: Heavy trucks, trailers, buses, agricultural equipment, and construction machinery.
• Sanitation and facility wash systems: Food processing plants, automotive service centers, and manufacturing facilities.
• Rental fleets and contractor equipment: Where durability, safety, and reliability are critical.

Performance Benefits

Integrating the PS6030 into a pressure washer system provides several operational advantages. Controlled burner activation minimizes unnecessary fuel consumption and prevents overheating, which reduces maintenance costs and extends component life. Accurate pressure sensing ensures consistent water temperature and stable cleaning performance, allowing operators to achieve optimal cleaning results across a wide range of applications.

In addition, the PS6030 improves overall system safety by preventing burner ignition during low-flow or no-flow conditions. This protects heating coils from damage, reduces the risk of thermal stress, and enhances long-term reliability. For professional users, these benefits translate into reduced downtime, lower operating expenses, and improved equipment longevity.

Key Specifications – PS6030

• Model: PS6030
• Maximum pressure rating: 4,060 PSI (280 bar)
• Fluid temperature rating: Up to 167°F (75°C)
• Port connection: 1/4-inch or 3/8-inch male (depending on configuration)
• Electrical rating: 250 V AC, 16 A
• Typical activation pressure: Approximately 363 PSI (varies by calibration)
• Cord length: Approximately 45 inches (114 cm)
• Primary applications: Burner control, coil activation, bypass control, and high-pressure hot-water washer systems

Why Choose the PS6030 Pressure Switch?

The PS6030 stands out as a reliable, industrial-grade pressure switch engineered for demanding cleaning equipment. Its durable construction, precise pressure response, and straightforward integration make it an excellent choice for OEM builders, service technicians, and professional contractors who require dependable system control. By ensuring safe burner operation, improving energy efficiency, and protecting critical system components, the PS6030 delivers long-term value and dependable performance in the toughest operating environments.
