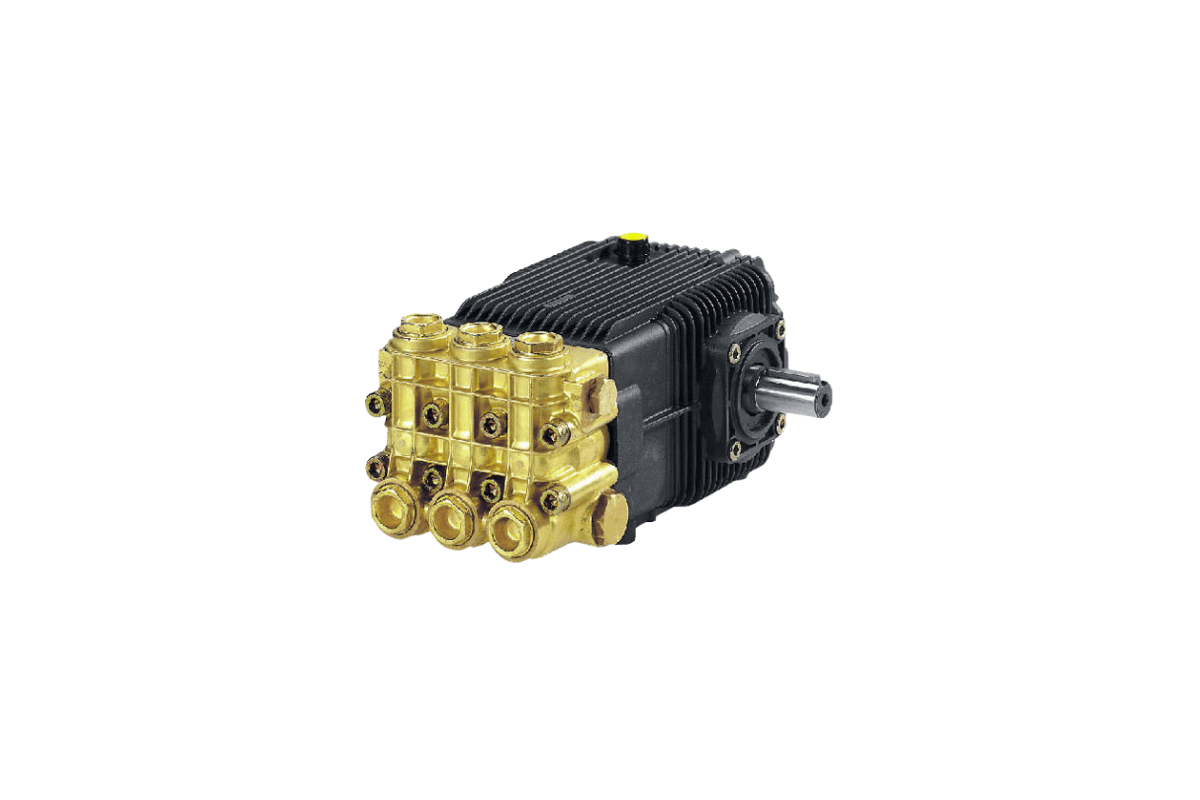

SXW Series

When only the highest pressures will do, the SXW Series is the powerhouse in AR North America’s industrial pump lineup. These models are engineered for continuous-duty work at extreme PSI levels, offering up to 5100 PSI while maintaining solid water flow for heavy cleaning and surface prep.

Built with a 24 mm solid shaft and operating at 1450 RPM, the SXW pumps combine a brass manifold, oversized ceramic plungers, and aluminum connecting rods for unmatched reliability in industrial environments.

If your applications demand intense pressure for cutting through grease, paint, or industrial buildup, the SXW series provides the muscle to get it done.

Key Highlights

• Flow & Pressure Options:
  • SXW15.35 → 3.96 GPM @ 5100 PSI
  • SXW21.350 → 5.55 GPM @ 5100 PSI
• Operating Speed: 1450 RPM
• Shaft: 24 mm solid shaft
• Oil Capacity: 32 oz
• Construction: Brass head, ceramic plungers, aluminum rods
• Weight: ~35 lbs — heavy-duty build for industrial applications

Why Choose the SXW Series?

Most commercial plunger pumps max out in the 3500–4000 PSI range. But for contractors, municipalities, and industrial facilities that require extra pressure for the toughest cleaning jobs, the SXW series stands out.

• 5100 PSI rating provides the cutting force needed for coatings removal, graffiti blasting, and deep surface prep.
• Still maintains flow options between 4–5.5 GPM, making it practical for a wide variety of applications.
• Engineered for long service intervals, with easily available AR rebuild kits.

The SXW is a true industrial-class pump, designed for operators who need consistent, reliable power under the harshest workloads.

Technical Specs

• SXW15.35 → 3.96 GPM, 5100 PSI, 15 HP input
• SXW21.350 → 5.55 GPM, 5100 PSI, 20 HP input

Shared specs:

• Bore: 35 mm
• Stroke: 15 mm / 21 mm depending on model
• RPM: 1450
• Oil Capacity: 32 oz

Typical Applications

The SXW series is purpose-built for jobs where standard contractor pumps aren’t enough. These are not light-duty washers — they are for serious cleaning, blasting, and industrial work.

Applications include:

• Graffiti and paint removal on concrete, brick, and metal
• Heavy equipment degreasing in mining, trucking, and rail
• Surface prep before coatings or sealants
• Industrial wash bays with extreme PSI needs
• Marine and shipyard cleaning for hulls and steelwork
• Oilfield and chemical plant washdown
• Municipal services requiring high-pressure sanitation

Service & Maintenance

As with all AR pumps, the SXW line is fully rebuildable. Contractors benefit from lower lifetime costs because they can service and maintain the pump rather than replace it.

Special Parts / Kits

• AR2748: Rail Kit 1-1/4” – $32.13
• AR2748H: Rail Kit 2-1/2” – $90.84
• U-Bracket Kit 1-1/2” – $135.89
• AR394280: Valve O-Ring – $0.84
• AR1941040: Valve Fiber Ring – $2.81
• AR64516: Oil (16 oz) – $15.80

Repair Kits

• AR2871: Valves – $194.31 (6 pcs)
• AR2548: Pistons – $261.53 (3 pcs)
• AR2784: Water Seals – $200.96 (3 pcs)
• AR42708: Oil Seals – $298.96 (6 pcs)
• AR42120: Piston Guides – $160.68 (3 pcs)
• AR43437: Hot Water Seals – $816.83 (3 pcs)

Advantages of the SXW Series

• Unmatched Pressure: Up to 5100 PSI for extreme-duty work.
• Durability: Brass manifold and ceramic plungers resist wear.
• Large Oil Reservoir: Keeps pump cool during continuous operation.
• Rebuildable Design: Kits available for valves, seals, pistons, and more.
• Contractor-Proven: Trusted by professionals in harsh industries.

Benefits for Contractors & Facilities

• Expand Service Capabilities → Take on tougher jobs others can’t handle.
• Faster Work → High PSI cuts cleaning times dramatically.
• Better ROI → Longer-lasting, rebuildable pump with reduced downtime.
• Versatile Power → Can handle everything from graffiti removal to industrial plant cleaning.
• Peace of Mind → Built by AR, one of the world’s leading pump manufacturers.

Conclusion

The SXW Series Solid Shaft Pumps are the top of the line for extreme pressure applications. With outputs reaching 5100 PSI, they deliver the cutting force needed for the toughest contractor and industrial jobs, from graffiti removal to steel prep.

For operators who need more than the standard 3500–4000 PSI pump, the SXW fills the gap with durability, power, and serviceability that keep it running in the most demanding environments.

Whether you’re running a municipal service fleet, managing a shipyard, or leading a contractor crew that takes on specialized cleaning, the SXW series ensures you have the power, parts, and performance to get the job done right.
