SXW21.35/ET | Pump/Motor Combo, 5.5 GPM 5000 PSI

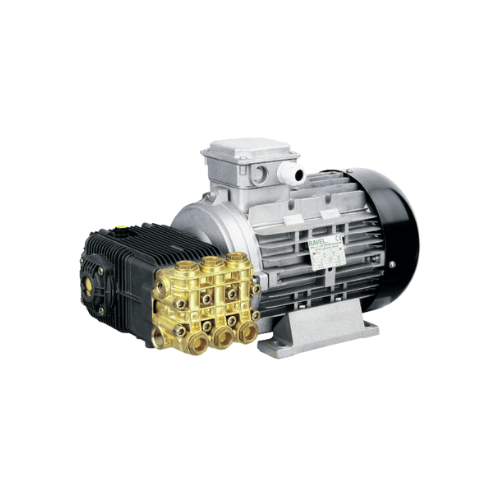

SXW21.35/ET Pump & Motor Combination Unit

• Factory-assembled pump-and-motor package built for industrial users who want ultra-high pressure performance with simplified installation.
• Delivers 5.5 GPM at up to 5,000 PSI for aggressive cleaning, surface prep, and continuous-duty washdown work.
• Pre-aligned electric motor and pump coupling helps reduce vibration, improve reliability, and minimize premature bearing or seal wear caused by misalignment.
• Triplex plunger design with ceramic plungers and stainless-steel valves provides steady output and long service life in demanding environments.

Key Specifications

Performance

• Model: SXW21.35/ET.
• Flow: 5.5 GPM.
• Maximum Pressure: 5,000 PSI.
• Drive: Electric motor (factory-matched and pre-aligned).
• Duty Rating: Continuous-duty capable (application dependent on system design and cooling).

Construction

• Pump Type: Triplex plunger.
• Plungers: Ceramic for abrasion and heat resistance.
• Valves: Stainless steel for durability and corrosion resistance.
• Oil System: Oil sight glass and vented dipstick for quick checks and crankcase ventilation.
• Warranty: 5-year commercial coverage.

What’s Included

In the Box

• AR SXW-series triplex plunger pump.
• Precision-matched direct-drive electric motor (factory-aligned).
• Pre-aligned mounting base for simplified installation.
• Factory break-in oil (pre-filled).
• Oil sight glass and vented dipstick.
• Factory performance test report verifying PSI and GPM.
• 5-year manufacturer’s commercial warranty.

How the SXW21.35/ET Works

Triplex Plunger Output with Factory Alignment

• Three plungers pressurize water in sequence to produce a steady, consistent high-pressure stream with reduced pulsation.
• Stainless valves regulate suction and discharge to help maintain stable pressure under demanding duty cycles.
• Factory-aligned motor coupling helps ensure correct shaft alignment, which reduces vibration and supports longer seal and bearing life compared to field-aligned assemblies.

Annovi Reverberi SXW21.35/ET Pump & Motor Combination Unit

Why It’s a Strong Fit for Industrial Users

• Turnkey installation: Pump and motor arrive mounted and aligned to reduce setup time.
• Ultra-high pressure capability: 5,000 PSI for stripping, restoration, and heavy soil removal.
• Productive flow: 5.5 GPM helps clean faster with better rinsing and coverage.
• Industrial durability: Ceramic plungers and stainless valves are built for hard service.
• Continuous-duty ready: Designed for long cycles when paired with proper inlet supply, cooling, and system protection.
• Easy routine service: Sight glass and vented dipstick make oil checks fast.
• Verified performance: Factory-tested for output consistency.
• Warranty protection: 5-year commercial coverage with U.S.-based support.

Typical Applications

Common Use Cases

• Surface preparation: coatings, adhesives, and heavy buildup removal.
• Paint stripping and industrial refurbishment work.
• Concrete cleaning: floors, pads, sidewalks, and parking areas.
• Industrial degreasing: equipment, manufacturing, and service bays.
• Fleet and machinery maintenance: loaders, excavators, trucks, and trailers.
• Industrial washdown systems where high-pressure performance improves cycle time.

Installation & Operating Notes

Best Practices

• Confirm adequate water supply and filtration to reduce cavitation risk at high flow.
• Use a properly sized nozzle/orifice for 5.5 GPM and verify pressure with a gauge.
• Integrate an appropriate unloader/regulator, thermal protection, and safety relief devices per system design.
• Flush with clean water after detergents and follow recommended oil change intervals.

Annovi Reverberi SXW21.35/ET Pump & Motor Combination Unit

• The SXW21.35/ET is a factory-assembled, electric-driven pump-and-motor unit delivering 5.5 GPM at up to 5,000 PSI for demanding industrial cleaning.
• With pre-aligned assembly, triplex plunger durability, and service-friendly oil monitoring, it’s built to reduce installation headaches and maximize uptime in professional environments.
