Z-BRACKET High Rail 2-3/4″ | XM-RK Pump

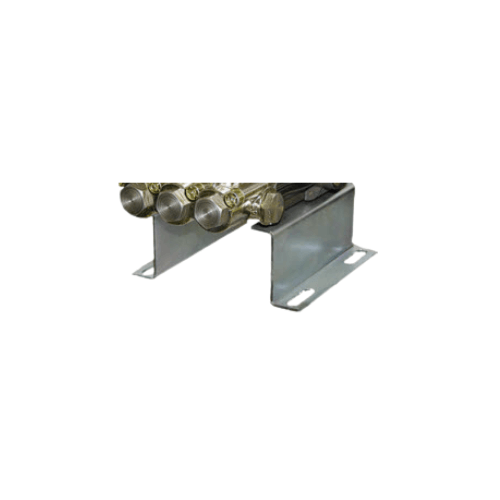

Z-BRACKET | High Rail Bracket 2-3/4 Inch for XM / RK Pump Frames

The Z-BRACKET High Rail Bracket is a heavy-duty structural mounting component
engineered specifically for XM and RK pump frames. With a fixed
2-3/4 inch rail height, this bracket provides a stable, repeatable mounting
point for rail assemblies used in pressure washer skids, pump platforms, and
industrial equipment frames. Designed for durability and alignment consistency,
the Z-BRACKET helps ensure that pumps, motors, and related components remain
securely positioned under load, vibration, and long-term operation.

In pump-driven systems, rail alignment is critical. Improper rail spacing or weak
mounting points can introduce vibration, accelerate wear on bearings and seals,
and complicate belt or coupling alignment. The Z-BRACKET addresses these issues
by delivering a rigid, steel support that maintains rail height and parallelism
across the frame. This makes it an essential component for both OEM equipment
builders and service technicians assembling or refurbishing XM and RK pump
packages.

Manufactured from durable steel, the Z-BRACKET is designed to withstand the
mechanical stresses common in commercial and industrial pumping applications.
Whether installed on a mobile trailer skid, stationary wash system, or custom
equipment frame, the bracket provides dependable structural support that helps
extend the service life of the entire assembly.

Purpose and Function

The primary role of the Z-BRACKET is to act as a high rail support for XM and RK
pump frames. By elevating and securing the rail at a precise 2-3/4 inch height,
the bracket creates a consistent mounting plane for pumps and drive components.
This uniformity is especially important when multiple rails are used, as it
ensures proper alignment across the length of the frame.

In belt-driven or coupling-driven pump systems, maintaining accurate rail height
helps preserve alignment between the pump and the prime mover. Even small
variations can lead to belt tracking issues, uneven load distribution, or
premature component failure. The Z-BRACKET minimizes these risks by providing a
rigid, repeatable mounting solution that installers can rely on.

• Supports rail assemblies at a fixed 2-3/4 inch height.
• Maintains alignment across XM and RK pump frames.
• Provides a solid anchoring point for pumps and accessories.
• Reduces vibration-related movement during operation.

Construction and Materials

The Z-BRACKET is fabricated from heavy-gauge steel chosen for its strength,
stiffness, and resistance to deformation under load. Steel construction ensures
that the bracket can support the weight of pumps, motors, and rail-mounted
components without flexing, even in high-duty-cycle environments.

Its shape and profile are optimized for rail support, distributing loads evenly
across the frame and fasteners. This reduces stress concentrations and helps
prevent loosening or fatigue over time. The bracket’s finish is suitable for use
in industrial settings, where exposure to moisture, chemicals, and temperature
variation is common.

• Material: Structural steel
• Design: Rigid high-rail bracket profile
• Height: 2-3/4 inches
• Application: XM and RK pump frames
• Function: Rail support and stabilization

Compatibility with XM and RK Pump Frames

The Z-BRACKET is specifically sized and configured for use with XM and RK series
pump frames. These frames are commonly found in pressure washing systems,
industrial pumping equipment, and fluid handling skids where reliable mounting
and alignment are essential.

By using a bracket designed for these frames, installers can avoid improvised
solutions that often lead to inconsistent rail heights or uneven support. The
Z-BRACKET integrates cleanly into standard frame layouts, allowing for predictable
results whether building new equipment or servicing existing installations.

Because XM and RK frames are frequently used in modular systems, the consistency
provided by the Z-BRACKET also simplifies replication. Multiple skids or units can
be assembled with the same rail geometry, making maintenance, parts replacement,
and troubleshooting more straightforward.

Key Features and Benefits

• Fixed 2-3/4 inch rail height: Ensures consistent positioning of rails and
  mounted components.
• Heavy-duty steel construction: Provides strength and rigidity under load.
• Stable mounting platform: Helps reduce vibration and movement during pump
  operation.
• Frame-specific design: Optimized for XM and RK pump frames.
• Repeatable installation: Ideal for OEM builds and standardized equipment
  layouts.

Typical Applications

The Z-BRACKET High Rail Bracket is used anywhere XM or RK pump frames require
elevated rail support. Its strength and consistency make it suitable for both
mobile and stationary systems operating in demanding environments.

• Pressure washer skids: Supports pump rails in trailer-mounted or skid-based
  wash systems.
• Industrial pump packages: Provides stable rail mounting for continuous-duty
  pumping equipment.
• Custom equipment frames: Used by fabricators building specialized fluid
  handling systems.
• OEM machinery builds: Ensures consistent rail height across production runs.
• Service and retrofit projects: Replaces worn or improvised rail supports
  during refurbishment.

Installation Considerations

Installing the Z-BRACKET is straightforward, but attention to alignment and
fastener integrity is essential for best results. The bracket should be mounted
squarely to the frame, with fasteners tightened evenly to prevent distortion.

When installing multiple brackets along a frame, it is recommended to verify
that all brackets are set at the same height before securing the rails. This
helps ensure that rails remain parallel and that mounted components sit flat and
true. Proper installation contributes directly to smoother operation and longer
component life.

• Confirm compatibility with XM or RK frame dimensions.
• Use appropriate fasteners rated for the application load.
• Check rail alignment before final tightening.
• Reinspect fasteners after initial run-in period.

Maintenance and Long-Term Performance

The Z-BRACKET requires minimal maintenance once installed. Periodic visual
inspection during routine service intervals is usually sufficient to ensure
continued performance. Look for signs of fastener loosening, corrosion, or frame
movement, especially in high-vibration environments.

Because the bracket is constructed from steel and designed for static structural
support, it is not a wear component. When properly installed and maintained, it
can provide years of reliable service as part of a pump rail assembly. Its role
in maintaining alignment can also help reduce wear on pumps, motors, belts, and
couplings throughout the system.

Summary

The Z-BRACKET High Rail Bracket 2-3/4 Inch is a critical structural component
for XM and RK pump frames, delivering stable, repeatable rail support in demanding
applications. With durable steel construction, precise rail height, and a
frame-specific design, it helps ensure secure mounting, proper alignment, and
long-term reliability. Whether used in OEM builds, custom fabrications, or service
retrofits, the Z-BRACKET provides a dependable foundation for rail-mounted pump
systems where stability and consistency matter.
