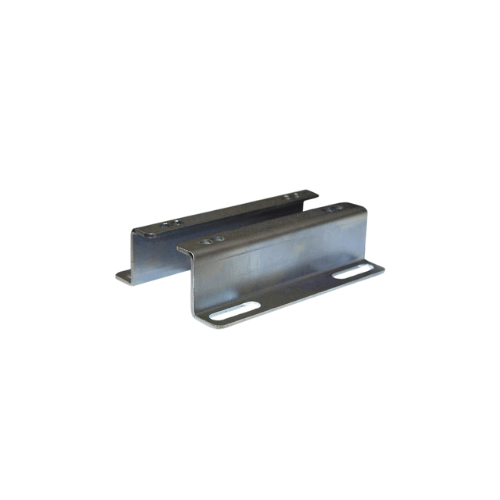

Z-BRACKET-1 3/4 High Rail Mounting Bracket

The AR North America Z-BRACKET-1 3/4 is a precision-engineered, high-rail mounting bracket designed to provide secure support and exact alignment for pump installations requiring a 1-3/4 inch rail height. Built from heavy-duty, corrosion-resistant steel and manufactured to AR’s strict dimensional standards, it ensures long-term stability, vibration control, and proper alignment in industrial, agricultural, and commercial pressure systems.

Key Features

• 1-3/4 inch high-rail design for proper pump and motor alignment
• Heavy-duty steel construction with corrosion-resistant coating
• Compatible with AR North America pump frames and rail systems
• High-tolerance manufacturing prevents flexing or distortion
• Distributes load evenly to reduce vibration and mechanical stress
• Ideal for both stationary systems and mobile wash rigs
• Precision mounting holes for easy, accurate installation
• Rigid structure maintains alignment during continuous-duty operation

Construction & Durability

• Powder-coated, corrosion-resistant steel for harsh environments
• Engineered for industrial wash bays, agricultural sprayers, food processing areas, and outdoor systems
• Maintains geometric integrity under heavy load and frequent pressure cycling
• Reinforced design reduces vibration, noise, and mechanical wear

Performance Benefits

• Ensures precise shaft alignment between pump and motor
• Reduces wear on bearings, seals, and couplers
• Improves overall pump efficiency and extends service life
• Supports stable torque transfer and smooth operation
• Helps maintain quiet, low-vibration system performance

Applications

• Industrial pressure washer builds and OEM systems
• Mobile wash trailers and custom pump rigs
• Agricultural cleaning and spray systems
• Food processing and sanitation equipment
• Commercial wash bays and permanent installations
• Retrofit upgrades requiring precise pump alignment

Compatibility

• Fits AR North America rail systems and pump frames
• Ideal match for XM, RK, XW series pumps
• Pairs with AR mounting hardware for modular system design

Installation Advantages

• Precision mounting holes eliminate custom drilling
• Compact profile allows easy access for pump maintenance
• Quick integration into OEM equipment or field retrofits
• Stable, secure mounting surface ensures alignment remains locked in place

Why Choose the Z-BRACKET-1 3/4?

• Engineered for demanding environments and continuous-duty systems
• Maintains perfect alignment to protect pumps and motors
• Heavy-duty build quality ensures long-term reliability
• Corrosion-resistant coating withstands moisture and chemicals
• Designed to meet AR North America’s strict quality standards
