BRACKET-RTP/RTF/RTJ | Rail Kit for RTP RTF RTJ Frame Mounts

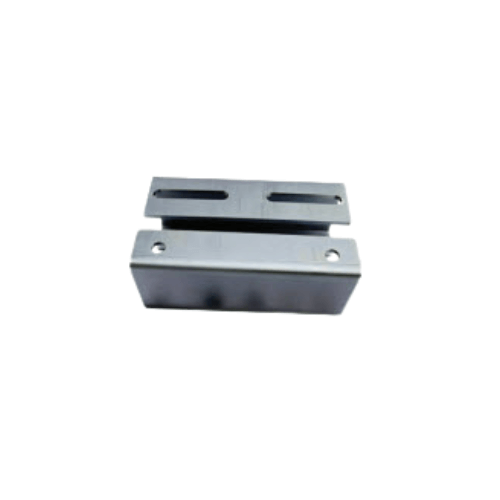

BRACKET-RTP/RTF/RTJ Rail Kit – Precision Mounting System for RTP, RTF, and RTJ Series Pump Frames

The AR BRACKET-RTP/RTF/RTJ Rail Kit provides a complete mounting and support solution designed specifically for Annovi Reverberi’s RTP, RTF, and RTJ triplex plunger pump frames. Engineered to simplify installation and ensure precise pump-to-motor alignment, this rail kit delivers long-term stability, reduced vibration, and improved operational efficiency across industrial and commercial pump installations.

Built to AR’s exact dimensional standards, the kit offers a robust foundation for fixed installations, skid systems, and mobile platforms, ensuring consistent performance and reliable service life in demanding environments.

Heavy-Duty Construction

Each rail is constructed from heavy-gauge steel that is precision-cut for dimensional accuracy and engineered for structural rigidity under continuous operation.

Material Advantages

• Corrosion-resistant steel – treated and protected for use in wash bays, agricultural facilities, and industrial settings.
• Durable powder-coated finish – protects against rust, abrasion, and chemical exposure.
• High-strength brackets and hardware – ensures secure clamping and dependable long-term stability.

Precision Alignment for Optimal Performance

Proper alignment between the pump and motor is essential for efficient operation, reduced mechanical wear, and extended component life. The AR rail kit is engineered to maintain a level, square alignment that protects critical pump elements such as bearings, seals, crankshafts, and ceramic plungers.

Alignment Benefits

• Prevents angular misalignment that can cause premature seal wear and bearing fatigue.
• Maintains consistent shaft levelness between pump and motor or drive system.
• Reduces vibration for smoother performance and lower operating noise.
• Improves longevity of internal components by minimizing mechanical stress.

Easy Installation & Service-Friendly Design

The BRACKET-RTP/RTF/RTJ kit is designed for straightforward installation in both new builds and retrofitted systems. Adjustable slotted holes allow installers to fine-tune pump placement, accommodating slight variations in frame dimensions or mounting surfaces.

Installation Features

• Adjustable mounting slots – simplifies pump positioning and alignment.
• Complete hardware set included – ensures seamless integration with AR pump bases.
• Open-frame accessibility – provides easy access for oil service, seal inspection, and hose routing.
• Reusable modular design – rails can be relocated or reconfigured as needed.

Application Versatility

Compatible with standard floor mounts, skid frames, and baseplate systems, the AR rail kit supports installations across a wide range of industries and operating conditions.

Common Applications

• Car and truck wash systems
• Agricultural spraying
• Fleet and equipment maintenance
• Food processing and sanitation systems
• Industrial washdown and cleaning systems

The kit ensures that pump systems remain stable, accessible, and professionally mounted, improving performance while reducing long-term maintenance requirements.

Key Features & Benefits

BRACKET-RTP/RTF/RTJ Rail Kit

• Designed exclusively for RTP, RTF, and RTJ pump frames – perfect dimensional alignment.
• Heavy-duty steel construction – built to withstand demanding industrial environments.
• Corrosion-resistant finish – ideal for wet, chemical, or high-humidity locations.
• Enhanced vibration damping – protects internal pump components.
• Improves pump-to-motor coupling accuracy – increases system efficiency and reliability.
• Complete hardware kit included – eliminates the guesswork of using generic mounting solutions.
• Quick installation and easy alignment – suited for both technicians and system builders.
• Reusable and modular – supports long-term system adaptability.

Why Choose the AR BRACKET-RTP/RTF/RTJ Rail Kit?

This rail kit is engineered with the same precision and quality control found throughout Annovi Reverberi’s global product line. By using a mounting system designed specifically for AR pumps, installers and technicians can ensure safe operation, reduced wear, and improved long-term reliability. Durable, versatile, and purpose-built, the BRACKET-RTP/RTF/RTJ Rail Kit is an essential accessory for maintaining alignment, structural stability, and professional installation of any RTP, RTF, or RTJ series pump setup.
