XWF3617-SA 9.5 GPM 2500 PSI Pump Sub-Assembly | 1000 RPM XWF3617

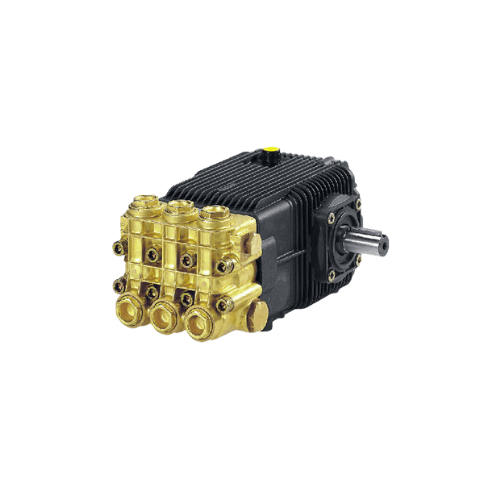

XWF3617-SA — Industrial Pump Sub-Assembly, 9.51 GPM, 2,500 PSI, 1,000 RPM

The AR North America XWF3617-SA is a heavy-duty industrial pump sub-assembly engineered as a
high-performance hydraulic core for automated wash lines, centralized cleaning stations, and multi-pump manifolds.
Rated 9.51 GPM at 2,500 PSI while running at a controlled 1,000 RPM, it delivers
powerful, smooth, and efficient output in continuous-duty environments. Built around AR’s proven
triplex plunger architecture with a forged brass manifold, ceramic plungers, and stainless-steel
valves, the XWF3617-SA provides the balanced flow, low pulsation, and long service life required in demanding
industrial systems.

Performance & Hydraulic Design

• High-output profile: 9.51 GPM at 2,500 PSI for robust cleaning and process applications.
• Slow-speed operation: 1,000 RPM drive reduces mechanical stress, heat, and wear.
• Triplex plunger technology: Three solid ceramic plungers deliver smooth, low-pulsation flow for
  stable downstream pressure and reduced vibration.
• Balanced hydraulic rhythm: Precision geometry maintains consistent volumetric output across
  extended duty cycles.
• Optimized internal passages: Forged brass manifold with smooth flow paths minimizes friction losses
  and helps prevent cavitation.

Construction & Internal Components

• Forged brass manifold: Provides structural strength, accurate sealing surfaces, and long-term
  corrosion resistance under fluctuating pressures and temperatures.
• Ceramic plungers: Resist thermal shock, abrasion, and chemical exposure, maintaining precise
  sealing and reducing maintenance frequency.
• Stainless-steel valves: Deliver precise flow regulation while resisting corrosion, debris, and
  cavitation damage.
• High-grade elastomer seals: Engineered for leak-free performance across varied pressures and water
  qualities.
• Precision-ground crankshaft: Ensures smooth rotation, low vibration, and stable alignment of
  plunger assemblies.

Crankcase, Lubrication & Drive

• Die-cast aluminum crankcase: Rigid housing with excellent heat dissipation for continuous-duty
  operation.
• Oil bath lubrication: Constantly bathes crankshaft, bearings, and connecting rods to limit friction
  and stabilize operating temperatures.
• Oversized bearings: Support heavy axial and radial loads for quiet, low-vibration performance and
  extended service life.
• Low-RPM efficiency: 1,000-RPM drive reduces mechanical stress on seals and bearings, lowering
  operating costs over time.

OEM Integration & System Design

• Modular sub-assembly format: Functions as a core building block for automated wash lines,
  centralized cleaning stations, and multi-pump manifolds.
• Standardized mounting & ports: Simplified installation and alignment into new or existing
  system layouts.
• Flexible configuration: Suitable for single-pump skids, rack-mounted arrays, or synchronized
  multi-pump manifolds.
• Compact footprint: Easy incorporation into skid-mounted, rack-mounted, or stationary system
  designs where space and accessibility matter.

Maintenance & Serviceability

• Oil sight glass: Allows quick visual checks of lubrication level and condition without disassembly.
• Accessible drain and fill ports: Simplify oil changes to keep the lubrication system in
  peak condition.
• Service-friendly valve caps: Provide straightforward access to valves and seals for inspection and
  replacement.
• Routine care: Regular oil changes, inlet filtration checks, and seal inspections support thousands
  of hours of continuous, dependable service.

Recommended Applications

• Automated wash lines: Centralized systems requiring stable, high-volume flow and low pulsation.
• Centralized cleaning stations: Multi-gun and multi-bay wash setups in industrial and commercial
  facilities.
• Manufacturing & process plants: Equipment wash, conveyor cleaning, and process water duties.
• Construction & heavy equipment cleaning: Wash systems for loaders, excavators, and jobsite
  machinery.
• Food & agricultural processing: Washdown and sanitation in high-moisture or chemically active
  environments.

Summary

• The XWF3617-SA industrial pump sub-assembly delivers 9.51 GPM at 2,500 PSI with a
  slow-speed 1,000-RPM drive, providing smooth, efficient, and low-pulsation hydraulic performance
  for continuous-duty applications.
• With a forged brass manifold, ceramic plungers, stainless-steel valves, and
  oil-bath lubrication inside a die-cast aluminum crankcase, it offers the durability, efficiency, and service
  simplicity OEMs and system builders need.
• Whether deployed as a standalone pump core or integrated into a multi-pump manifold, the
  XWF3617-SA is a reliable foundation for professional-grade, high-output pressure systems designed to run for
  thousands of hours in rigorous industrial environments.
